MAVIS LINE Integration Setup Guide

  • Updated

Mavis offers LINE integration. Once this feature is enabled and users have bound their LINE accounts in their profile, they will receive notifications.

  1. Policy alert for SSH usage and blocking
  2. JIT (Just In Time) login requests
  3. JIT request form results

 1.Configure LINE Channels Channels

  • Please log in to the Line Console and follow the steps below:

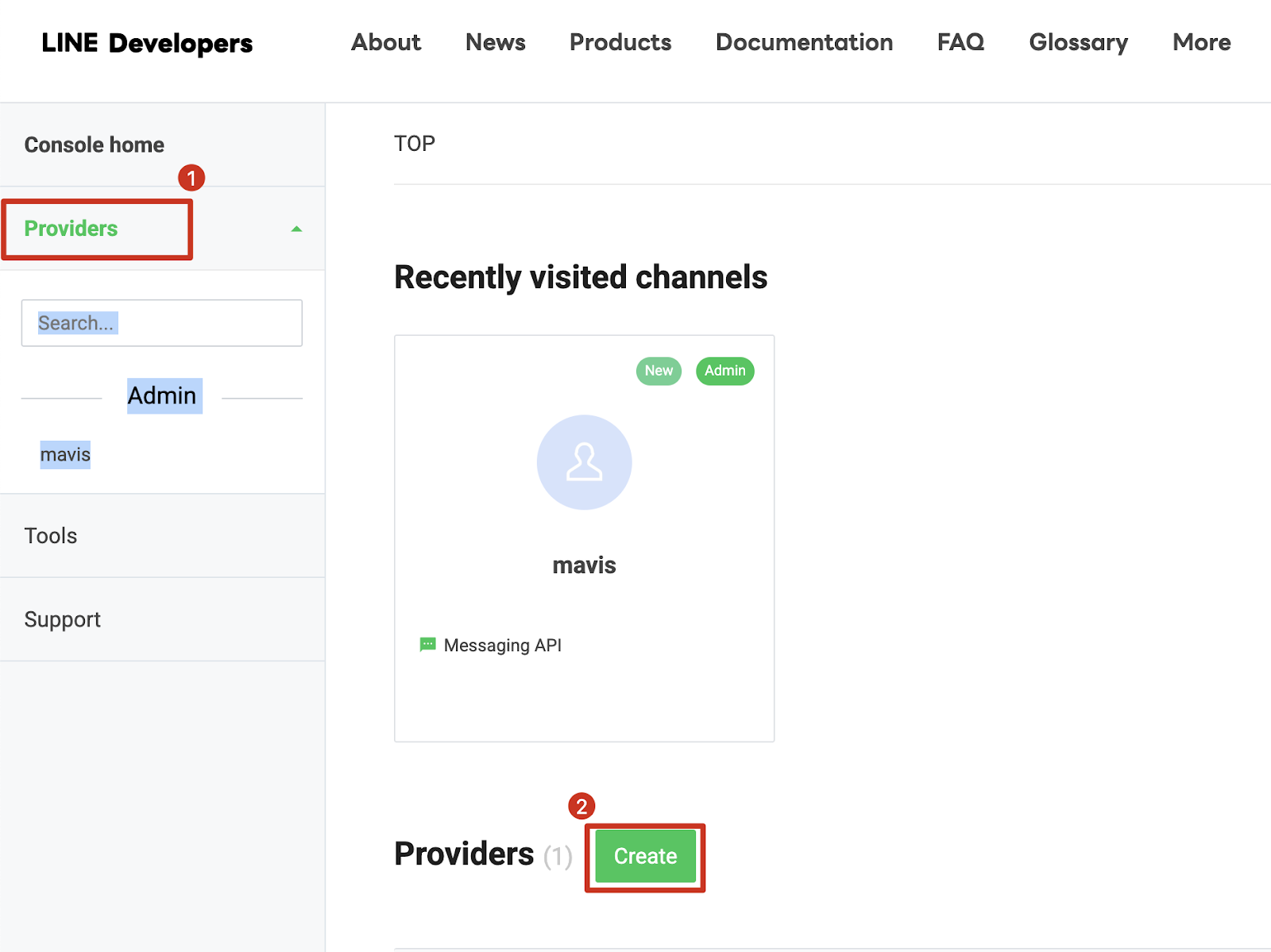

1. Go to Providers2. Click Create

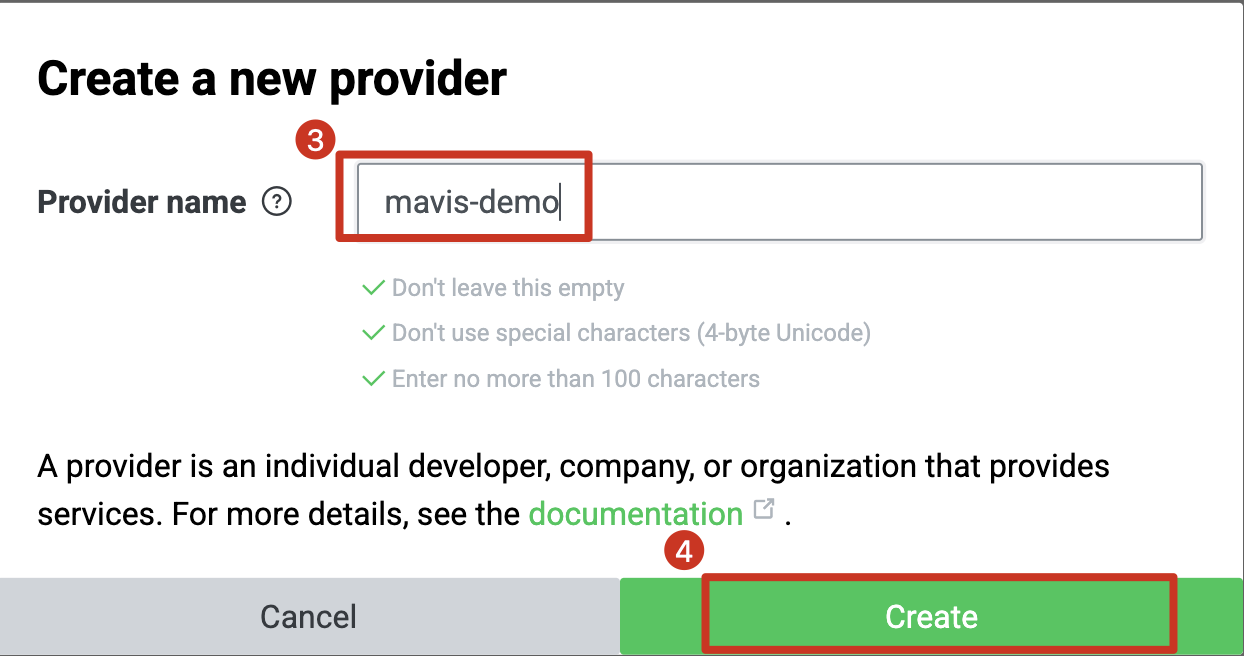

3. Enter the Provider name

4. Click Create

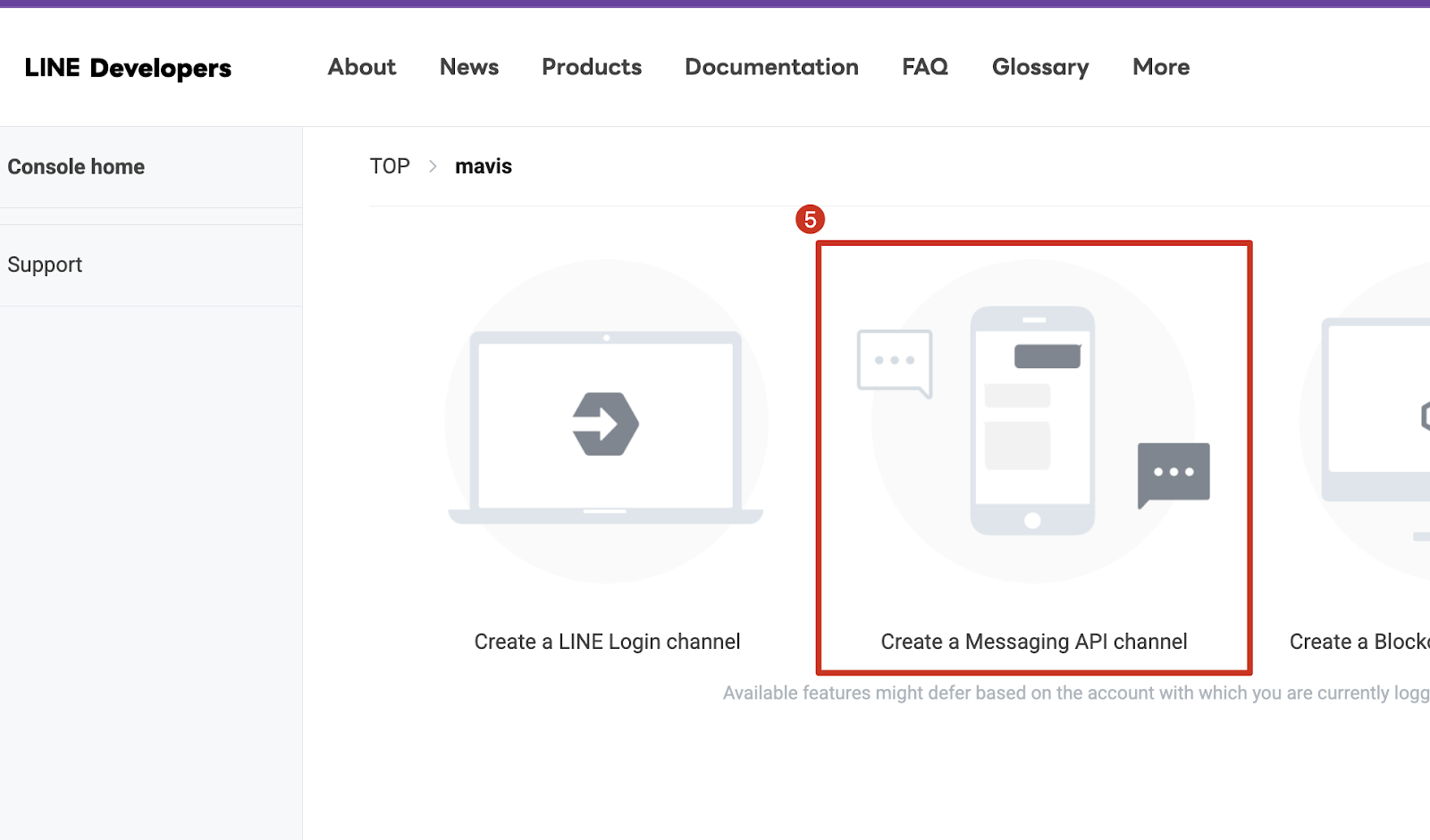

5. Select 「Create Messaging API channel」

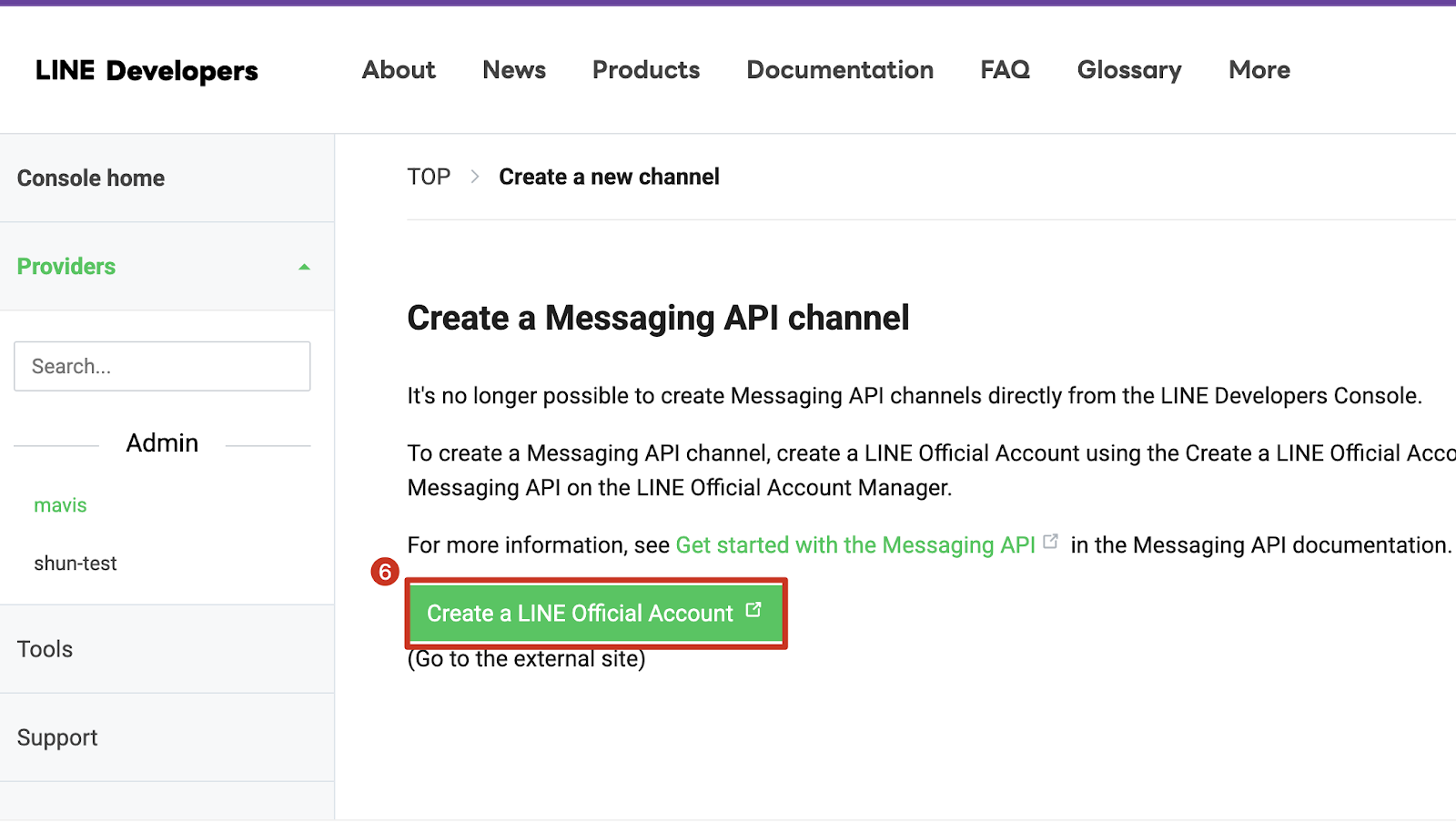

6. Click 「Create a LINE Officeial Account」

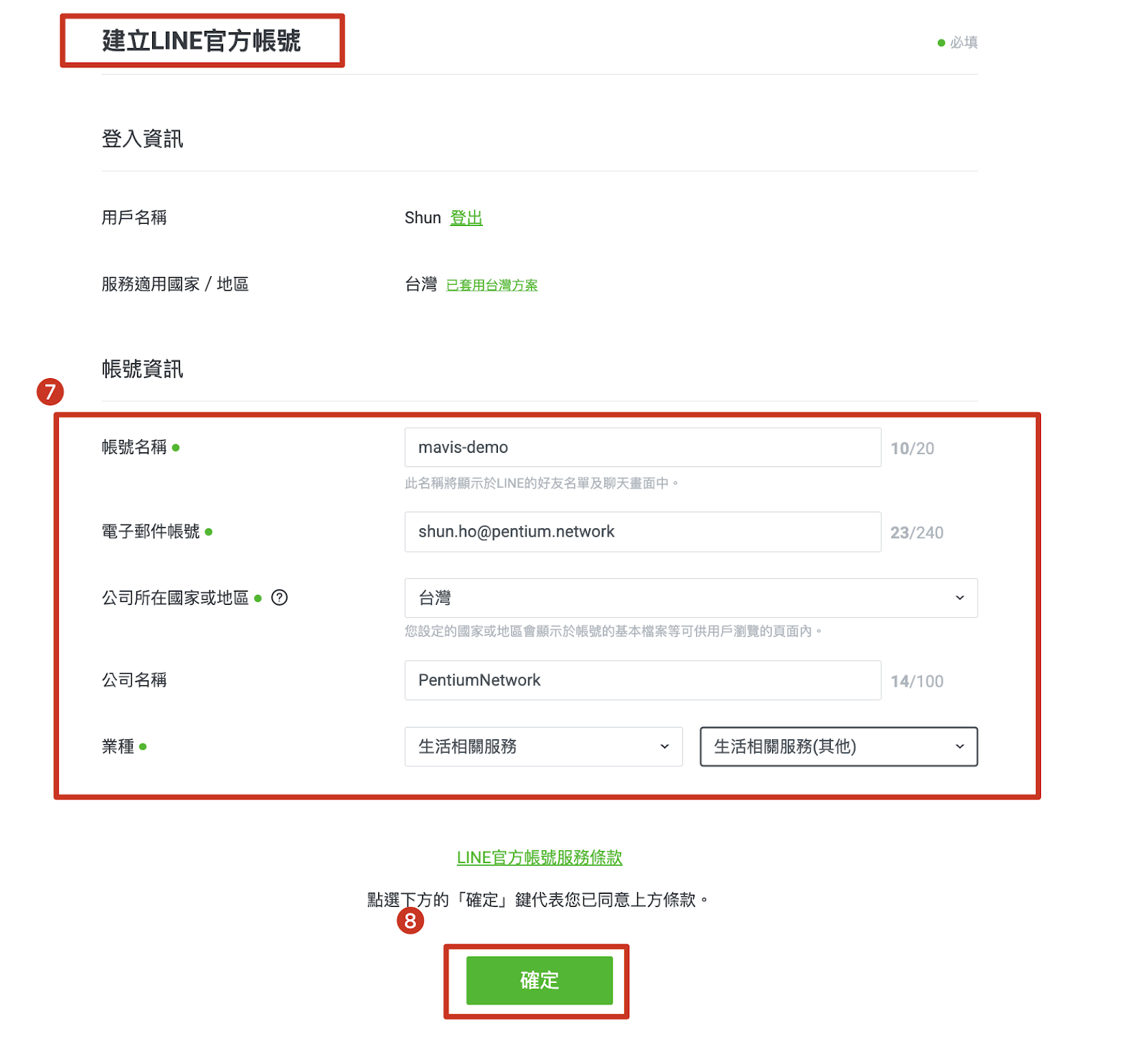

7. Fill in the required information to create the official account



8. Click Confirm

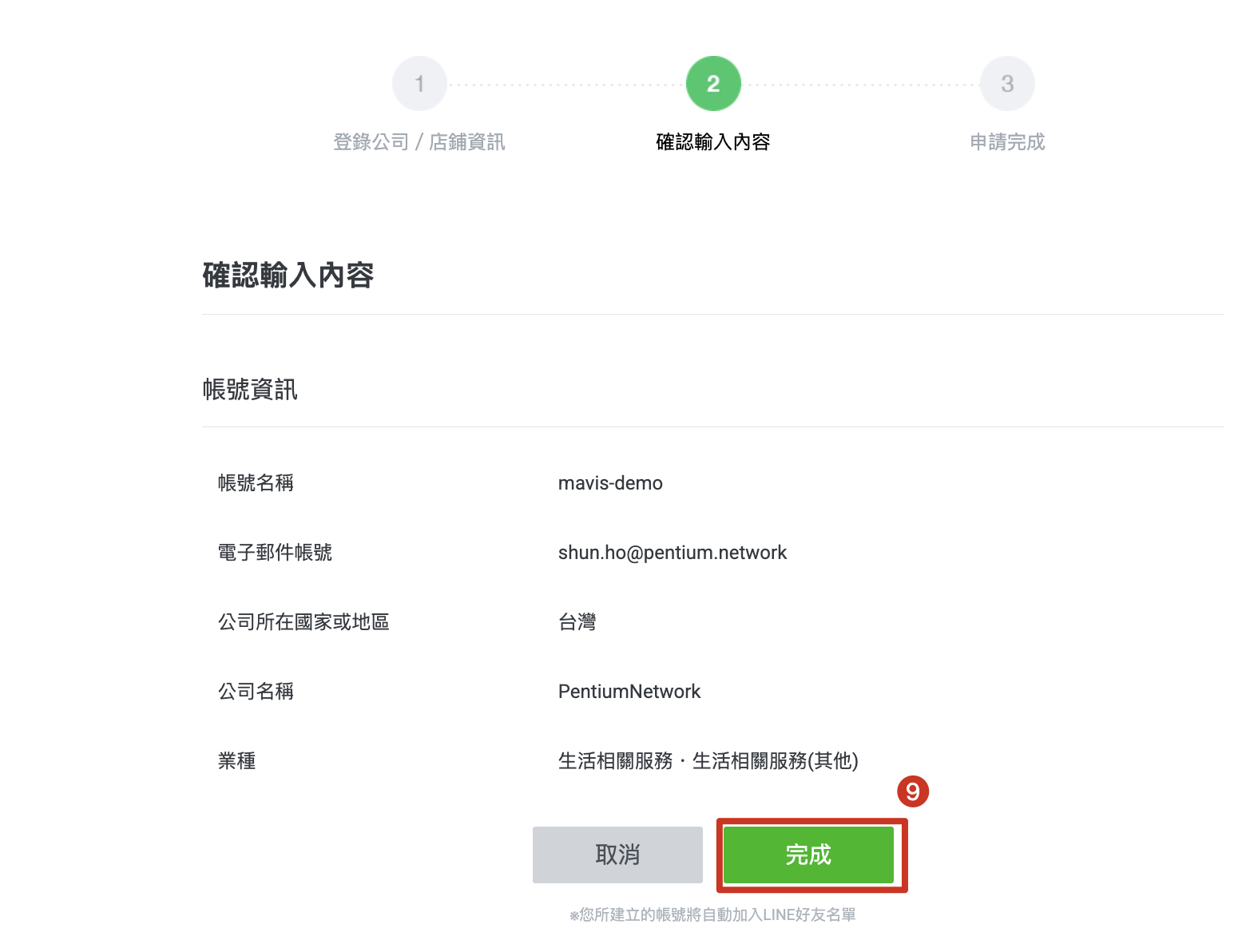

9.Click Finish

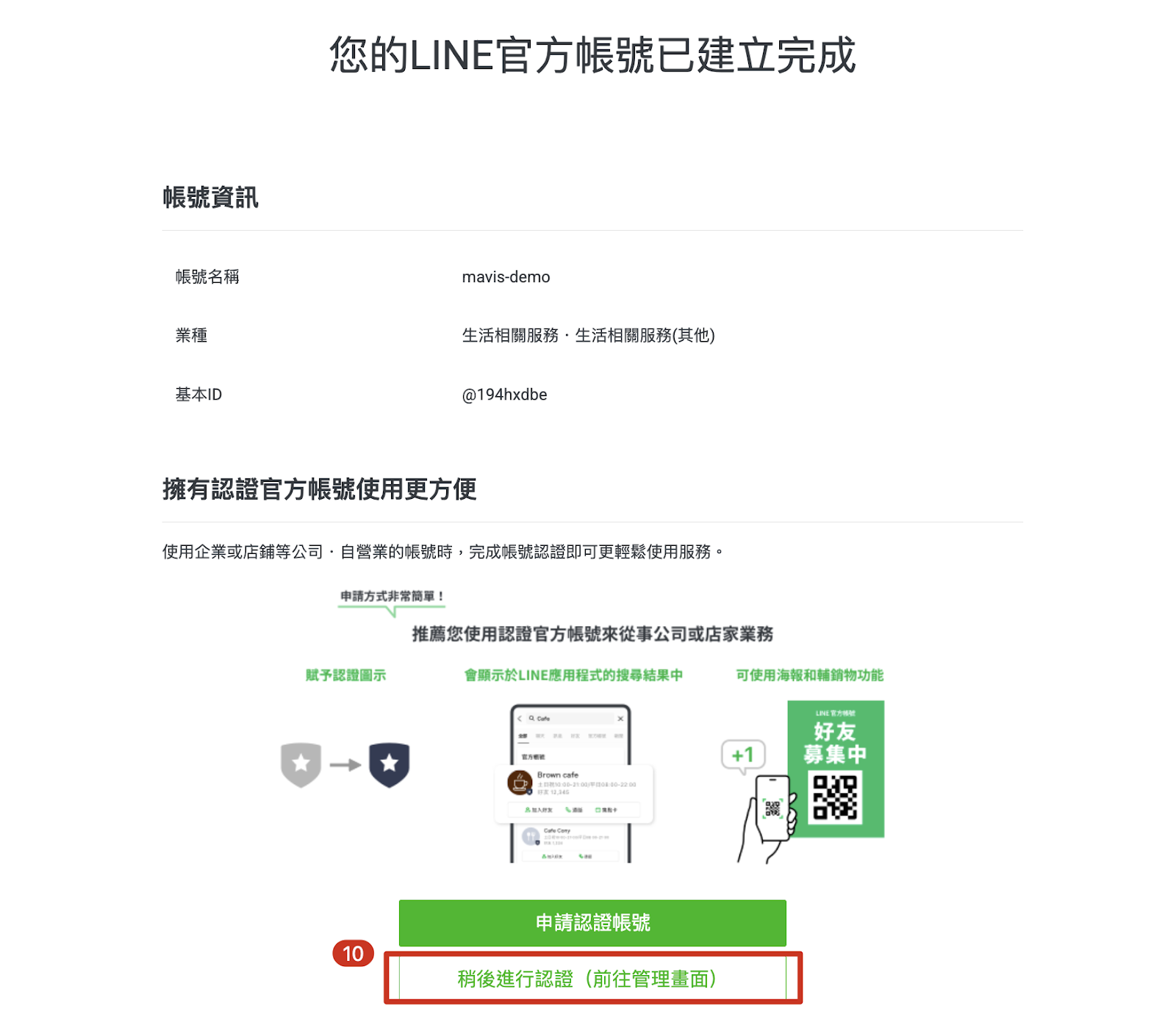

9. Click Verify later (Go to admin page)



2.Configure LINE Messaging API

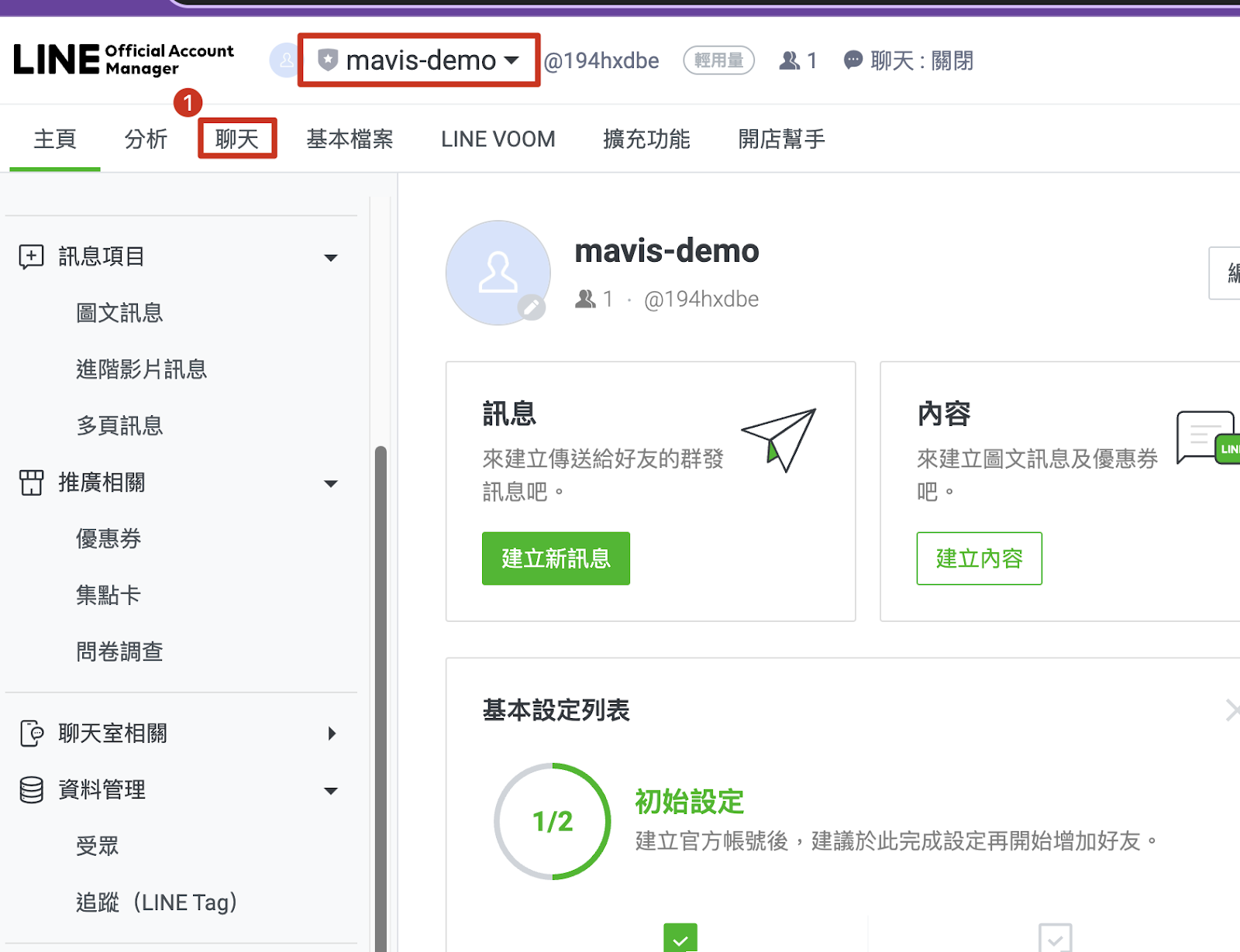

1. Click ChatClick ChatClick Chat

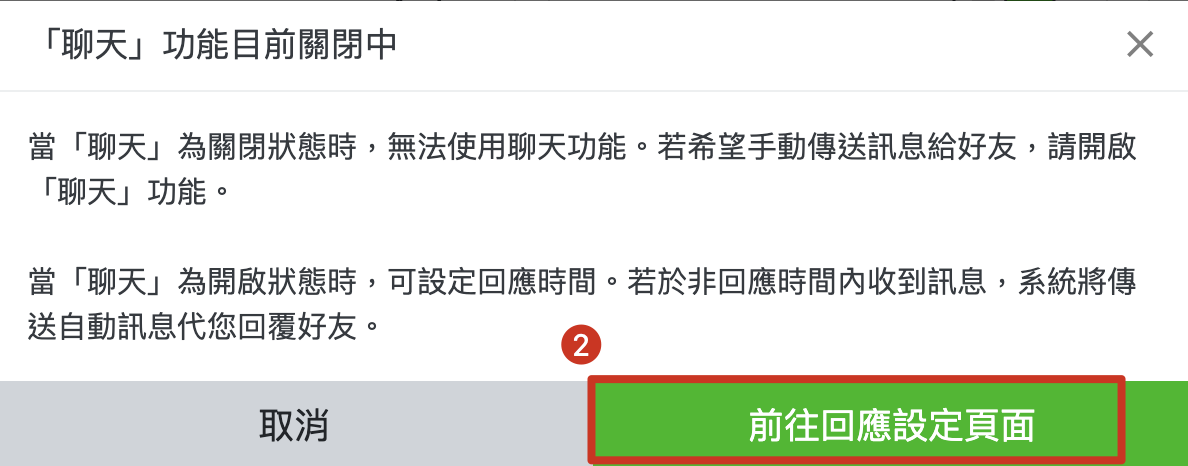

2. Click Go to response settings page

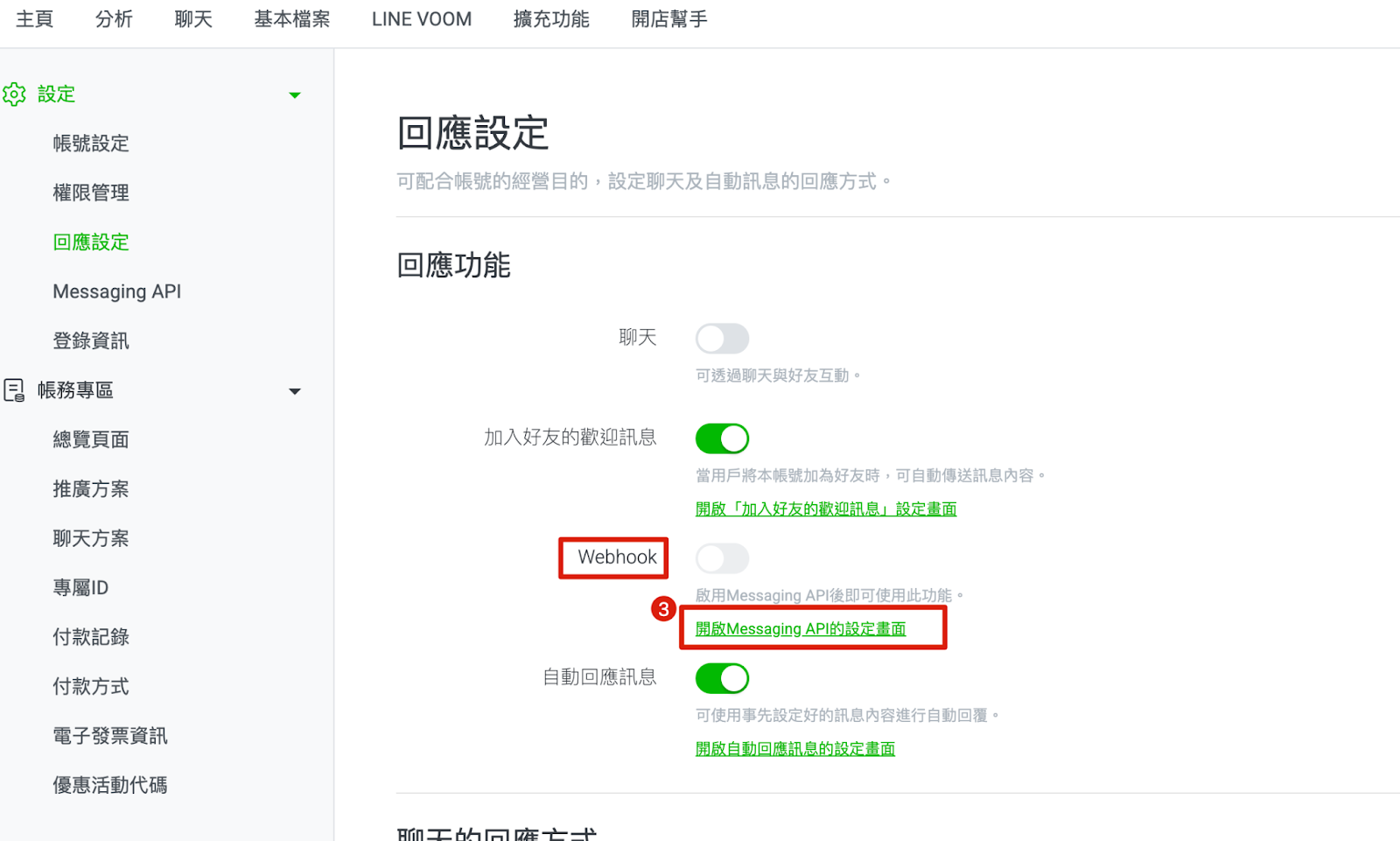

3. Click Open Messaging API settings

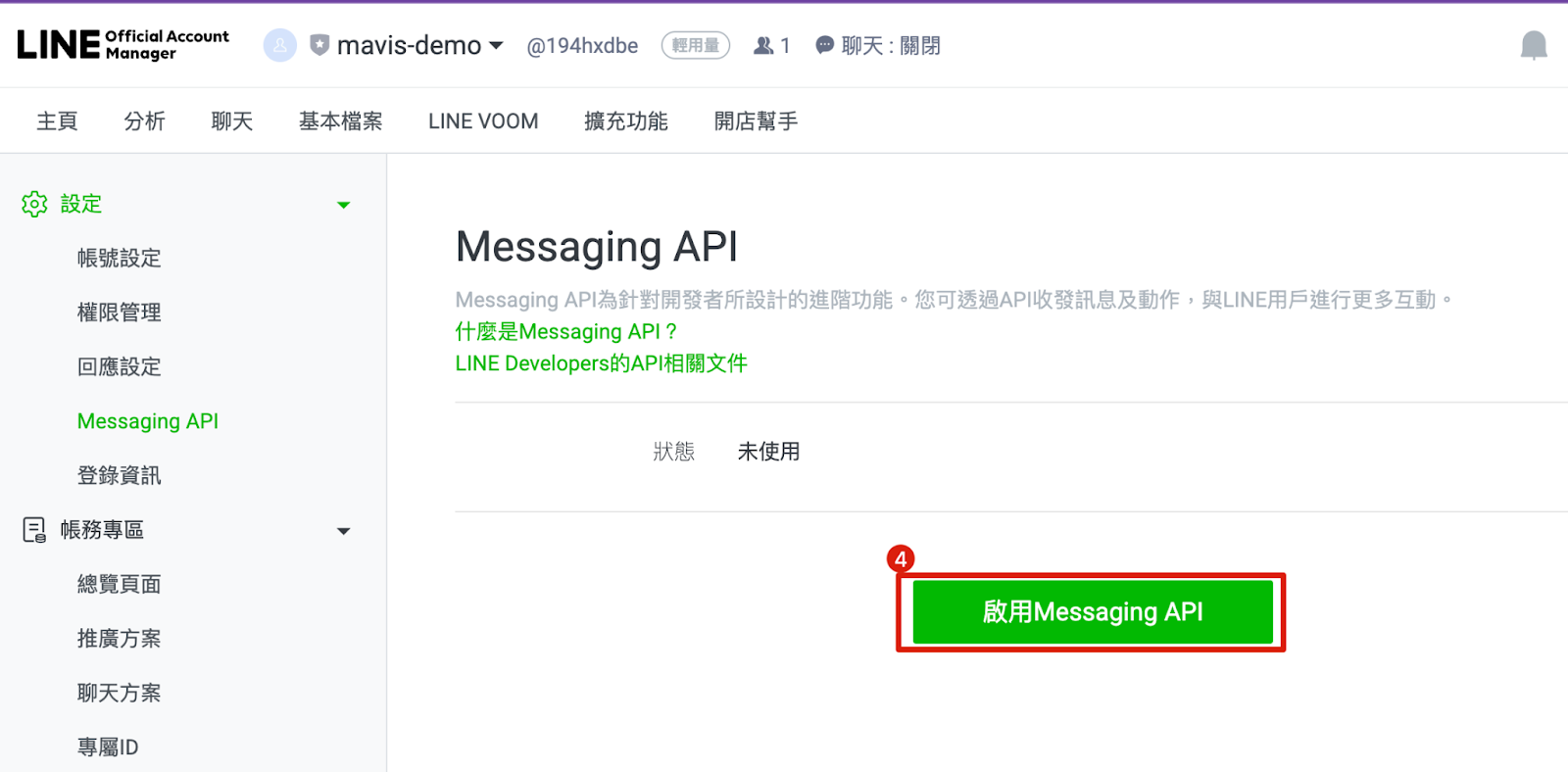

4. Click Enable Messaging API

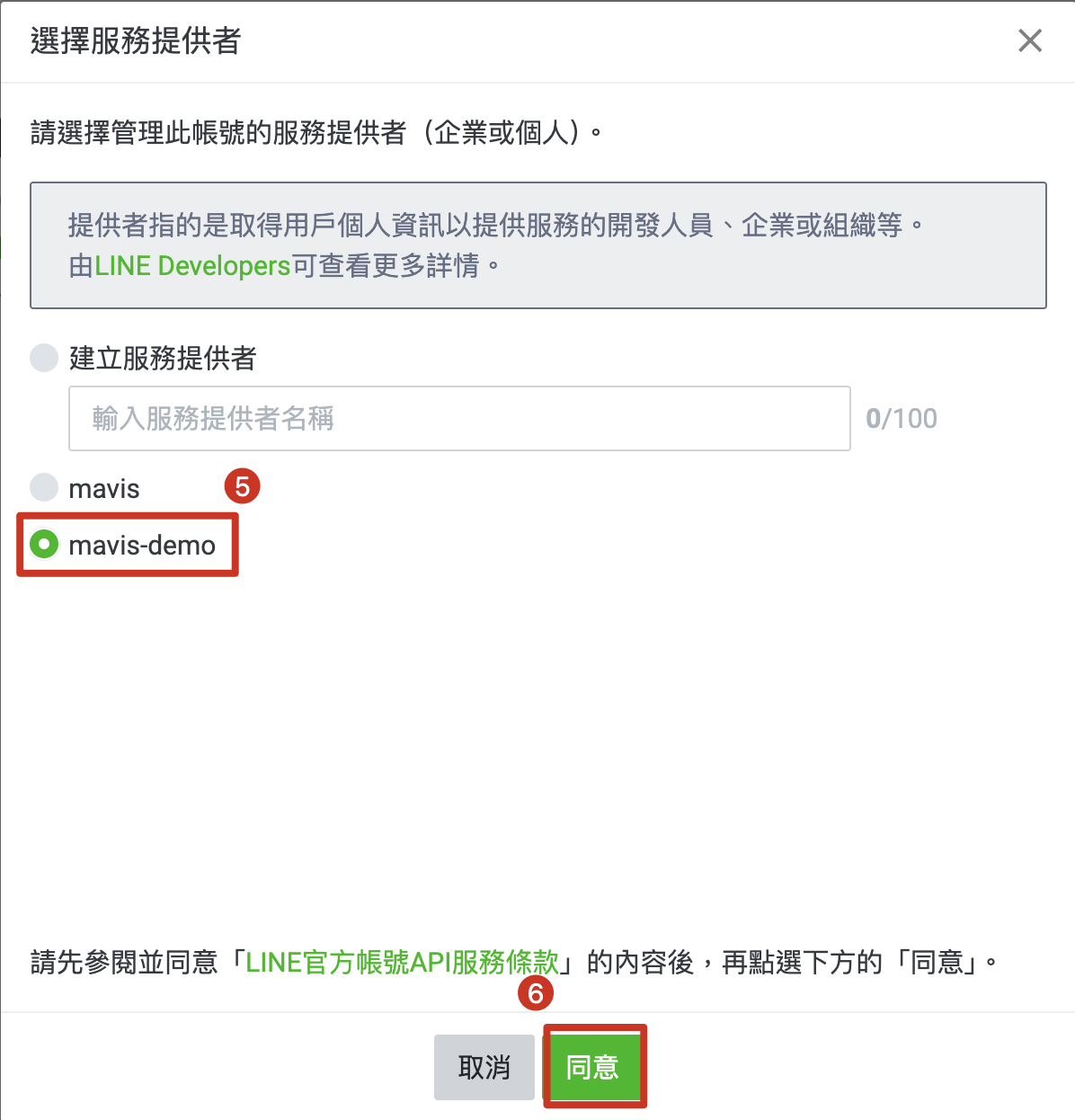

5. Select the channel you just created (e.g., mavis-demo)

6.Click Agree

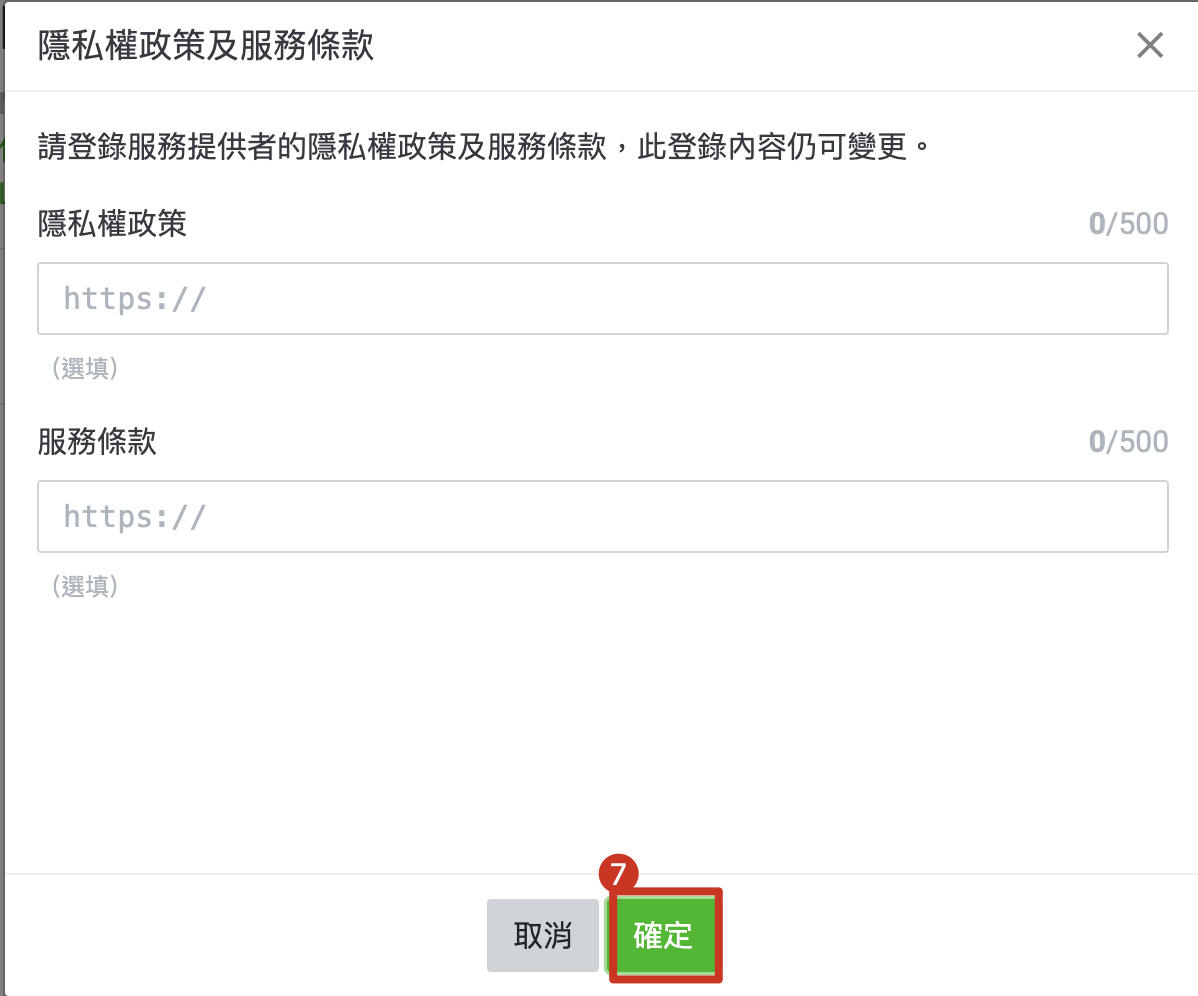

7. Click Confirm

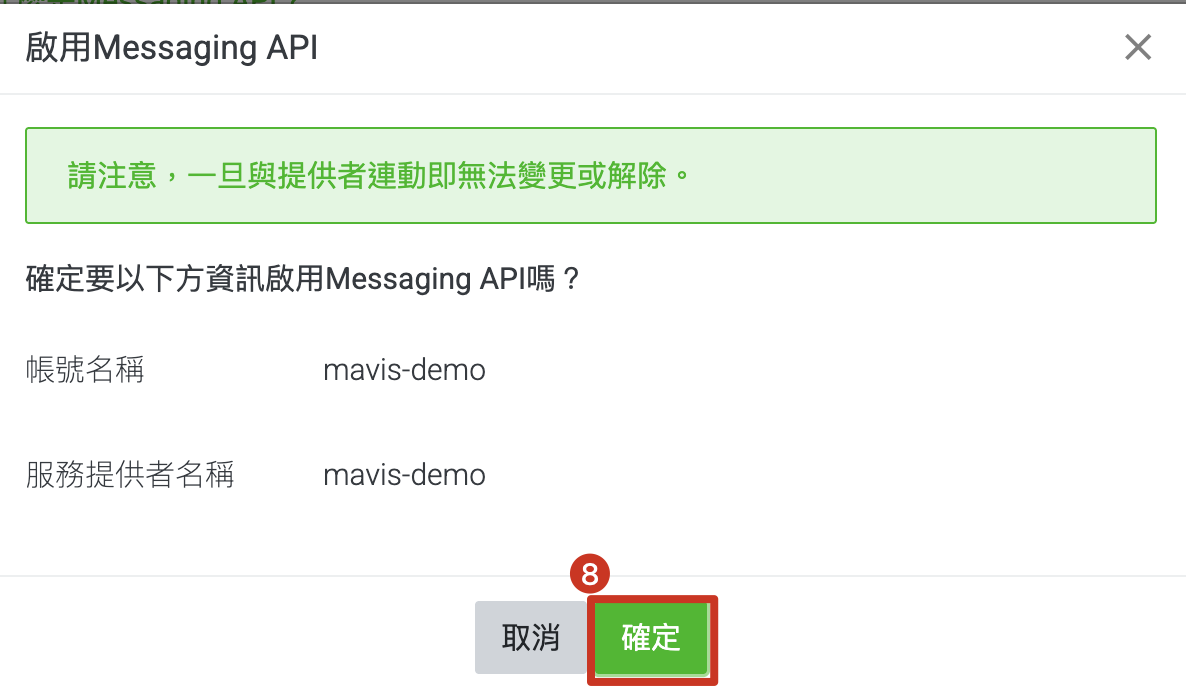

8. Click Confirm again

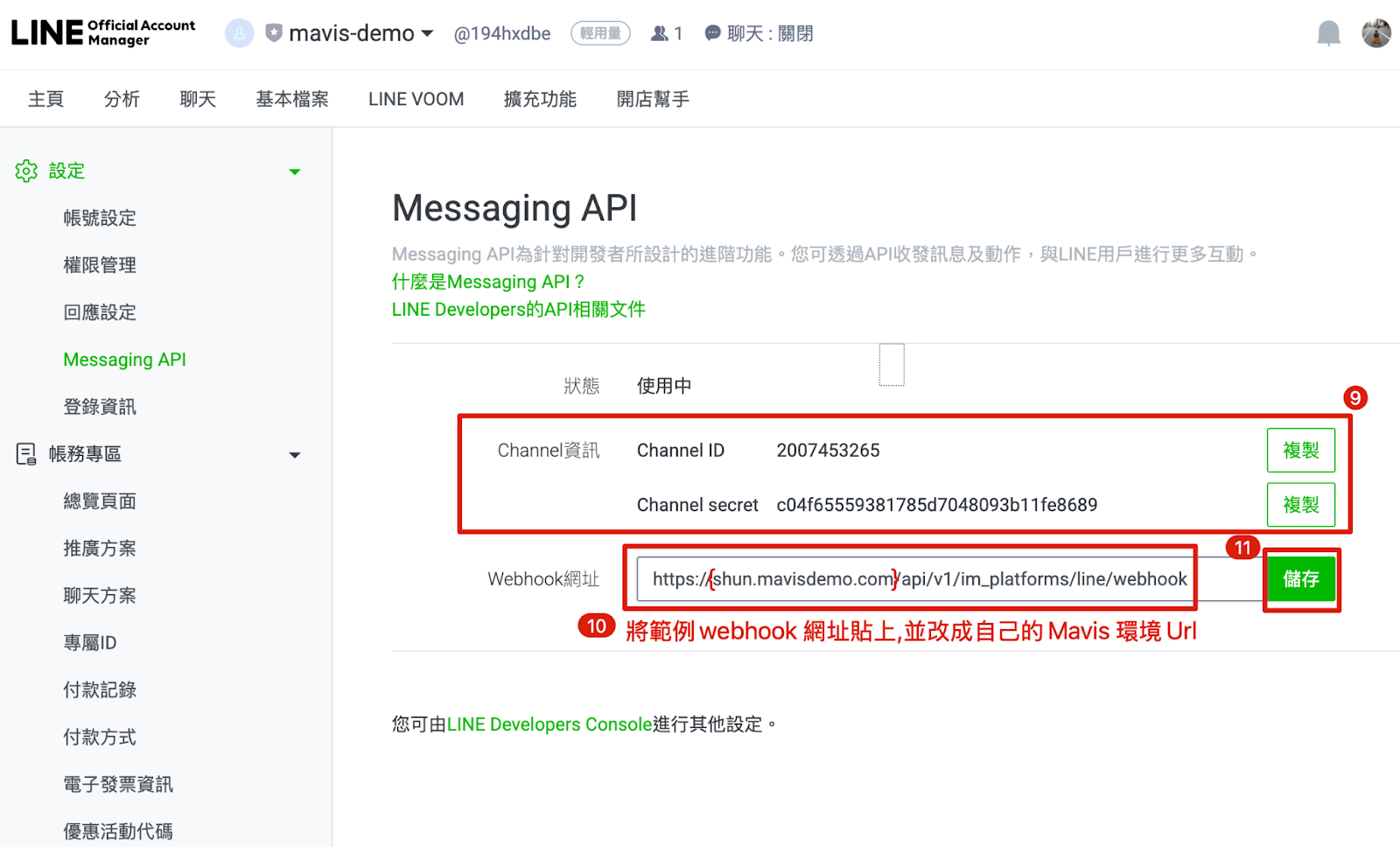

9. Save the Channel ID and Channel Secret

10. Set the Webhook URL to:：  https://{mavis url}/api/v1/im_platforms/line/webhook
      Example：https://shun.mavisdemo.com/api/v1/im_platforms/line/webhook
11. Click Save
       PS: ⚠️ Make sure the Mavis server's port 443 is open to allow verification from LINE.



3.Enable LINE Webhook

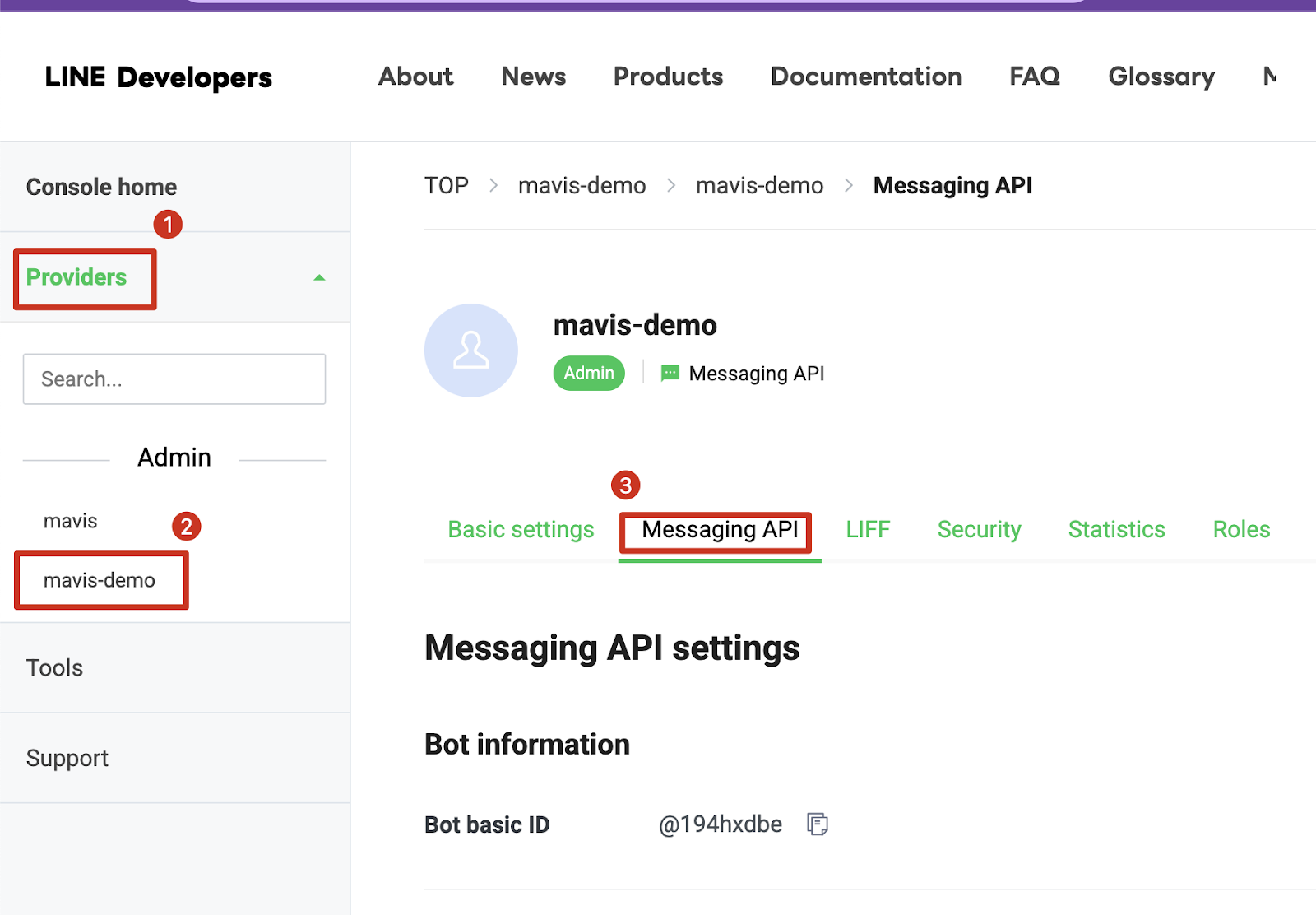

1.Go to Providers

2.Select the created Channel (e.g., mavis-demo)

3.Go to Messaging API

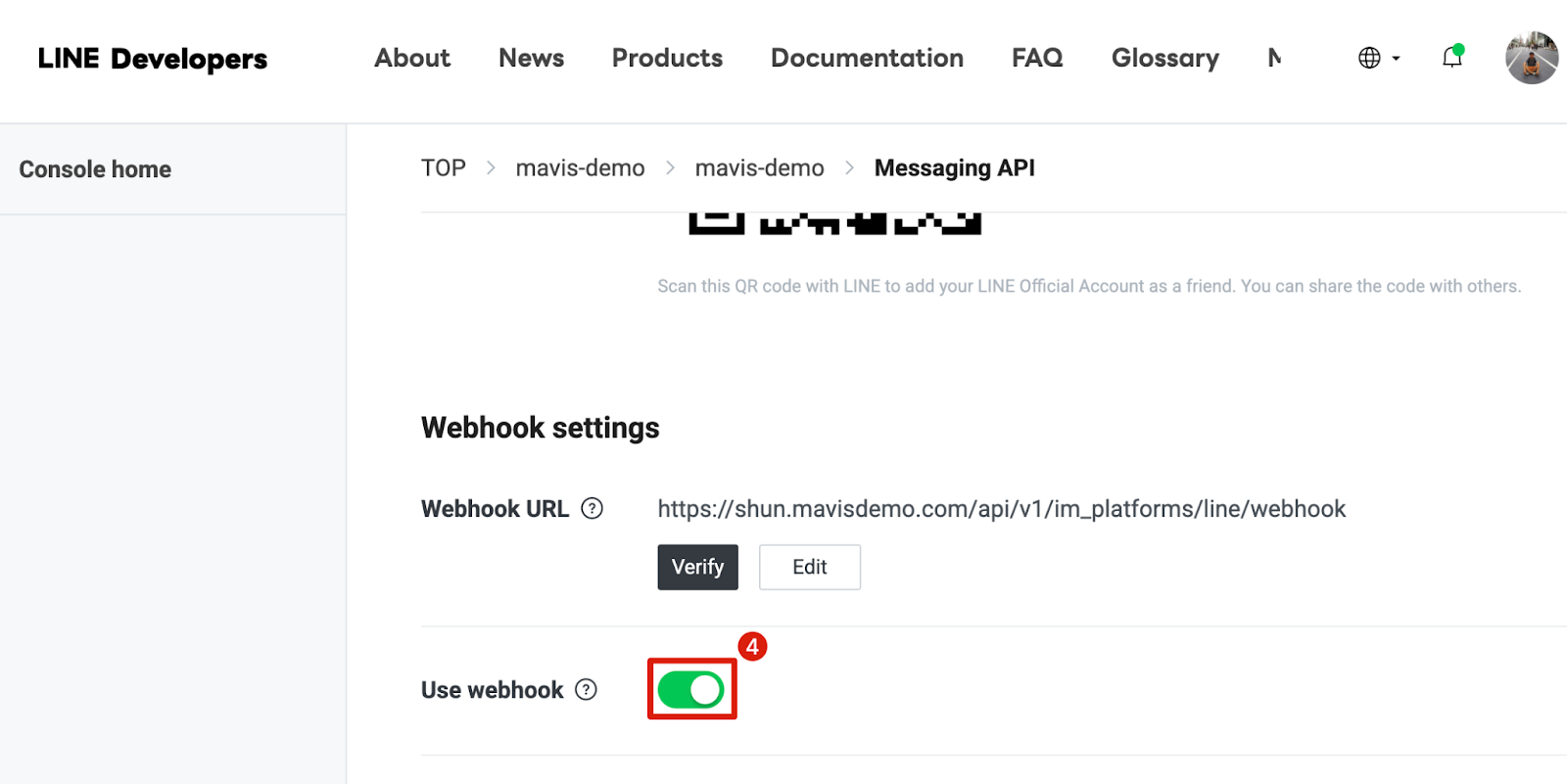

4. Enable the toggle for Use Webhook

4.Set Up LINE Integration in Mavis

Log in to Mavis as an Administrator

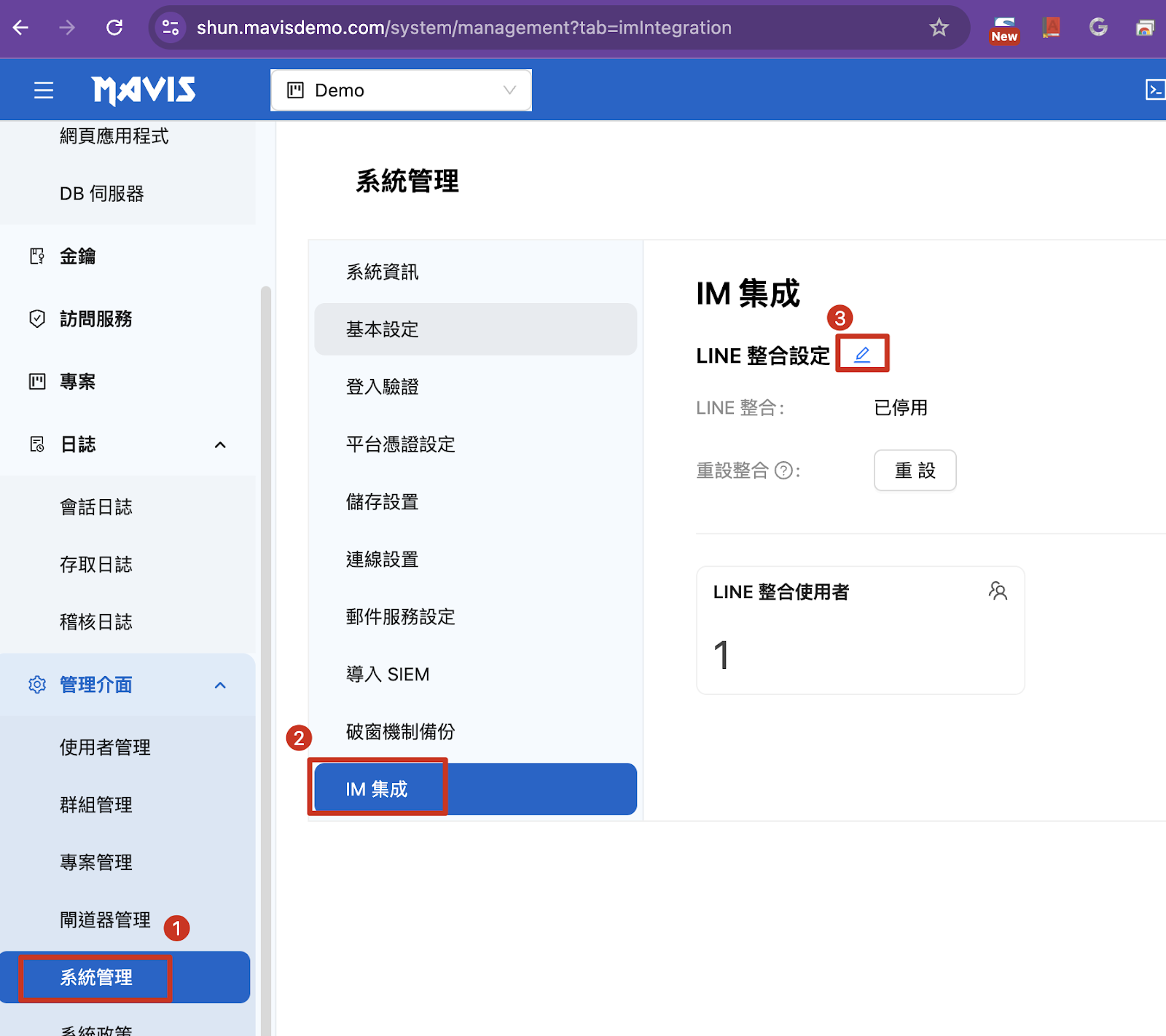

1.Go to System Management

2.IM Integration

3.Click the Edit button next to LINE Integration Settings

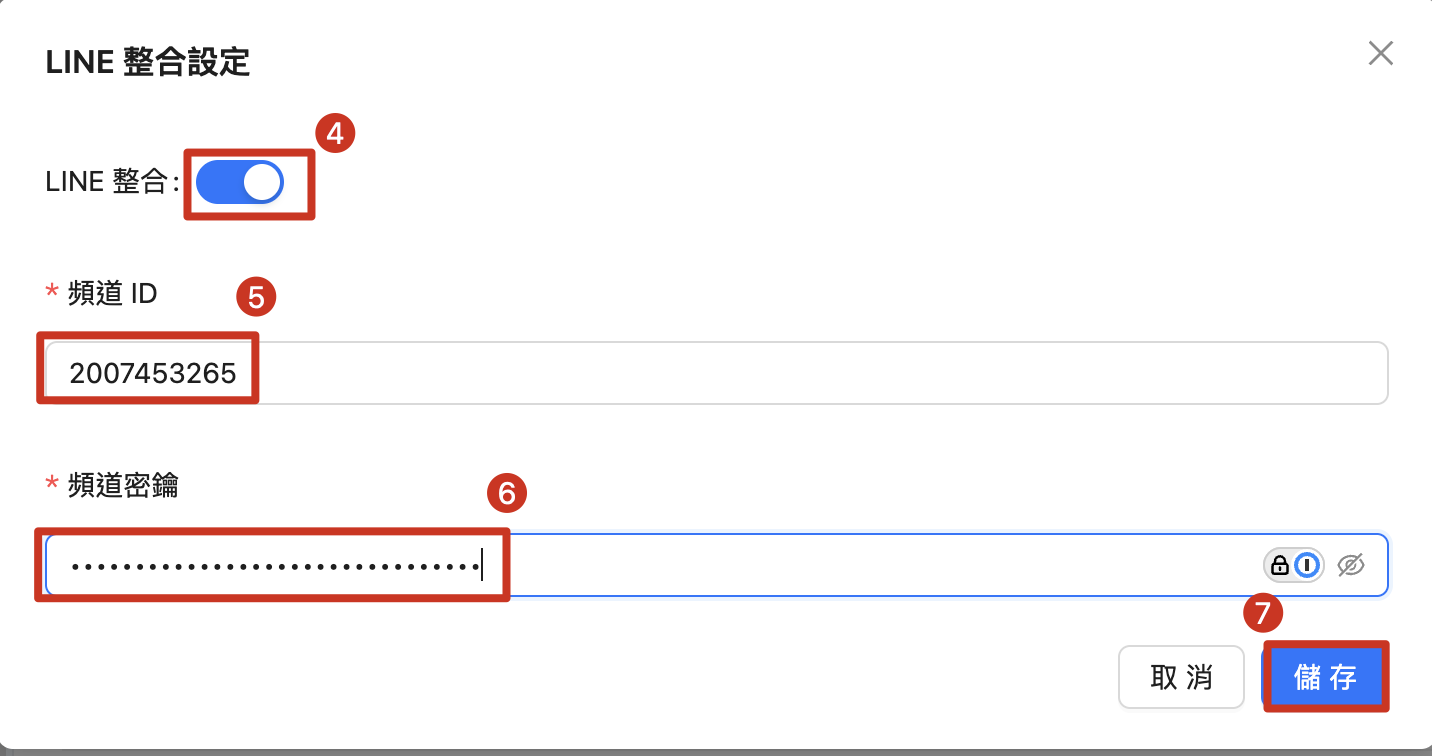

4.Enable the LINE Integration toggle

5.Enter the Channel ID

6.Enter the Channel Secret

7.Click Save

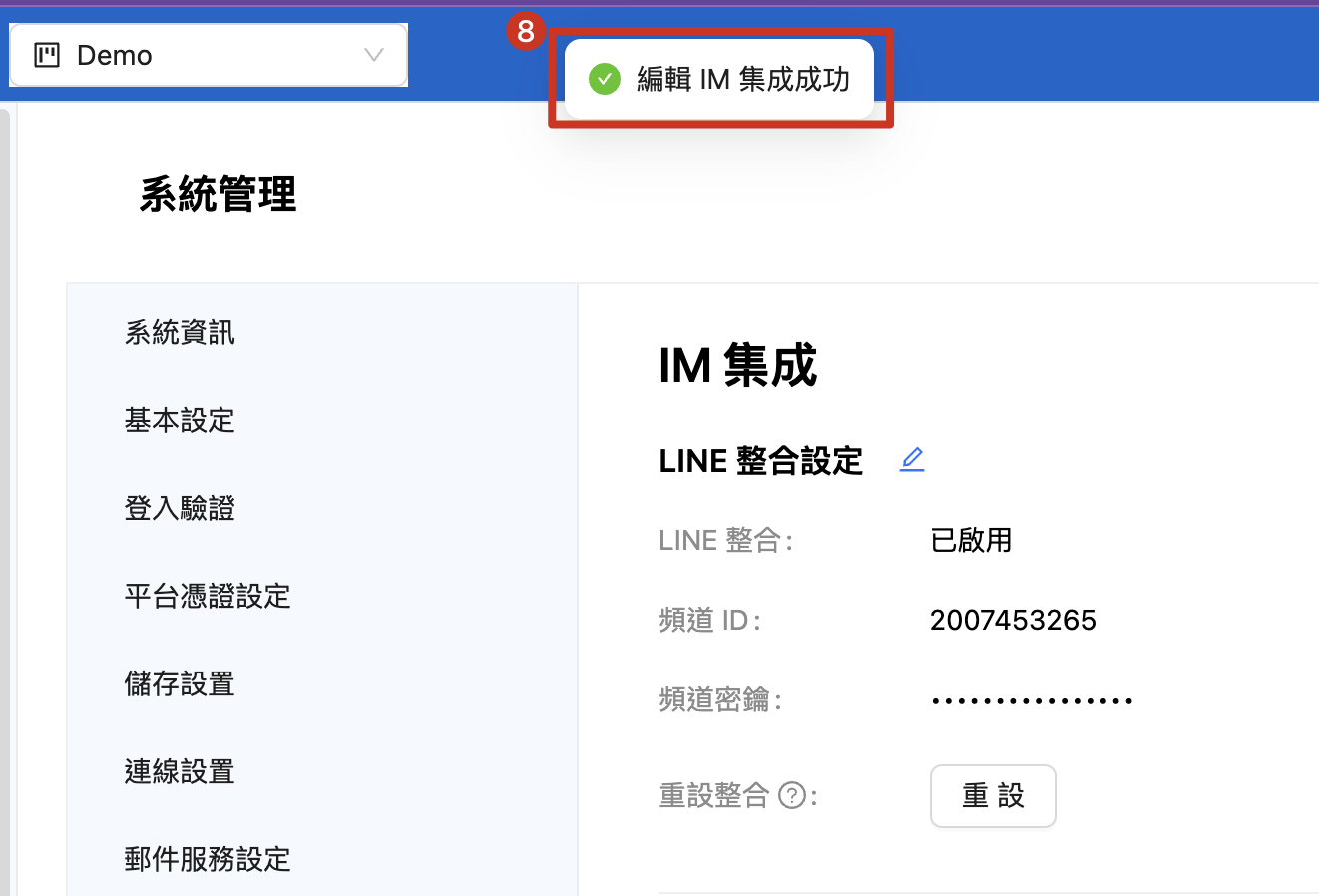

8.A success message will appear if the integration is set up correctly

5.Bind LINE Account as a Mavis User

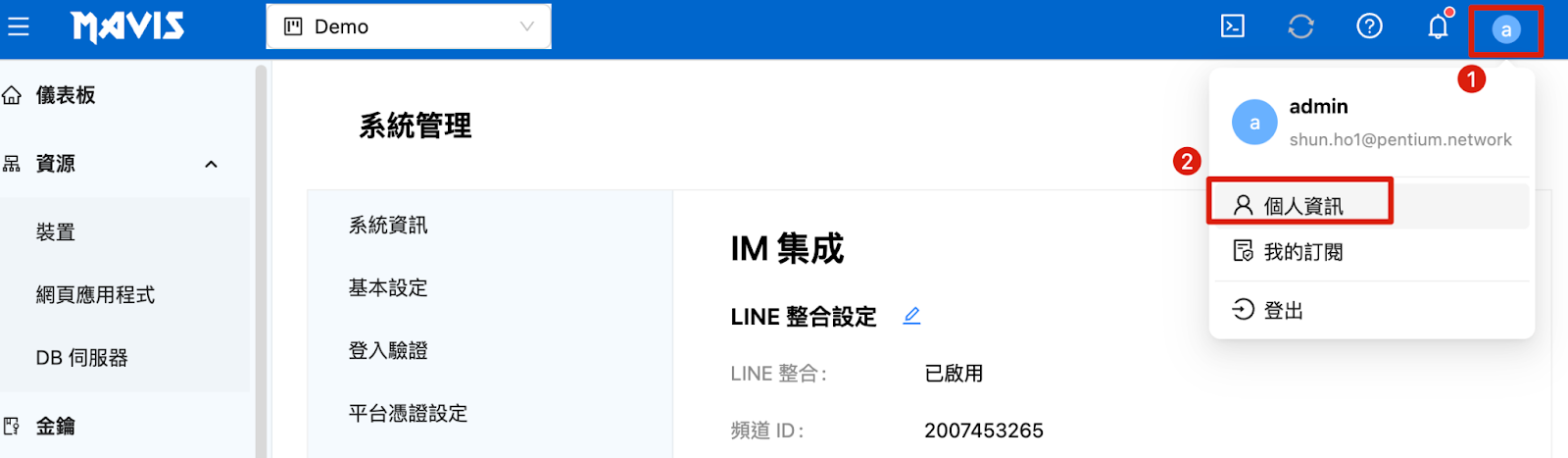

1.Click the User Profile icon

2.Select Personal Information

3.Click Bind

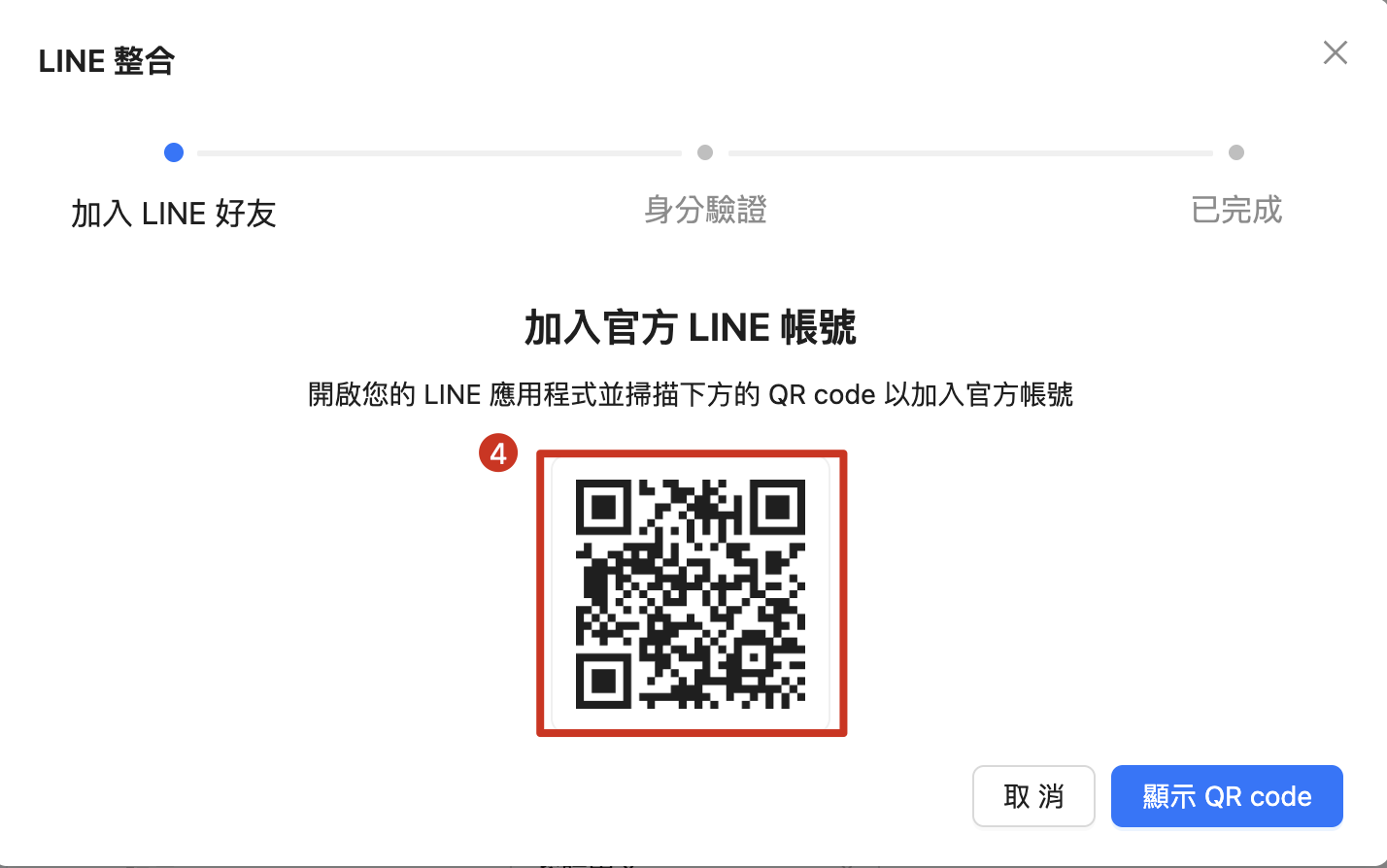

4.Use your mobile LINE app to scan the displayed QR code

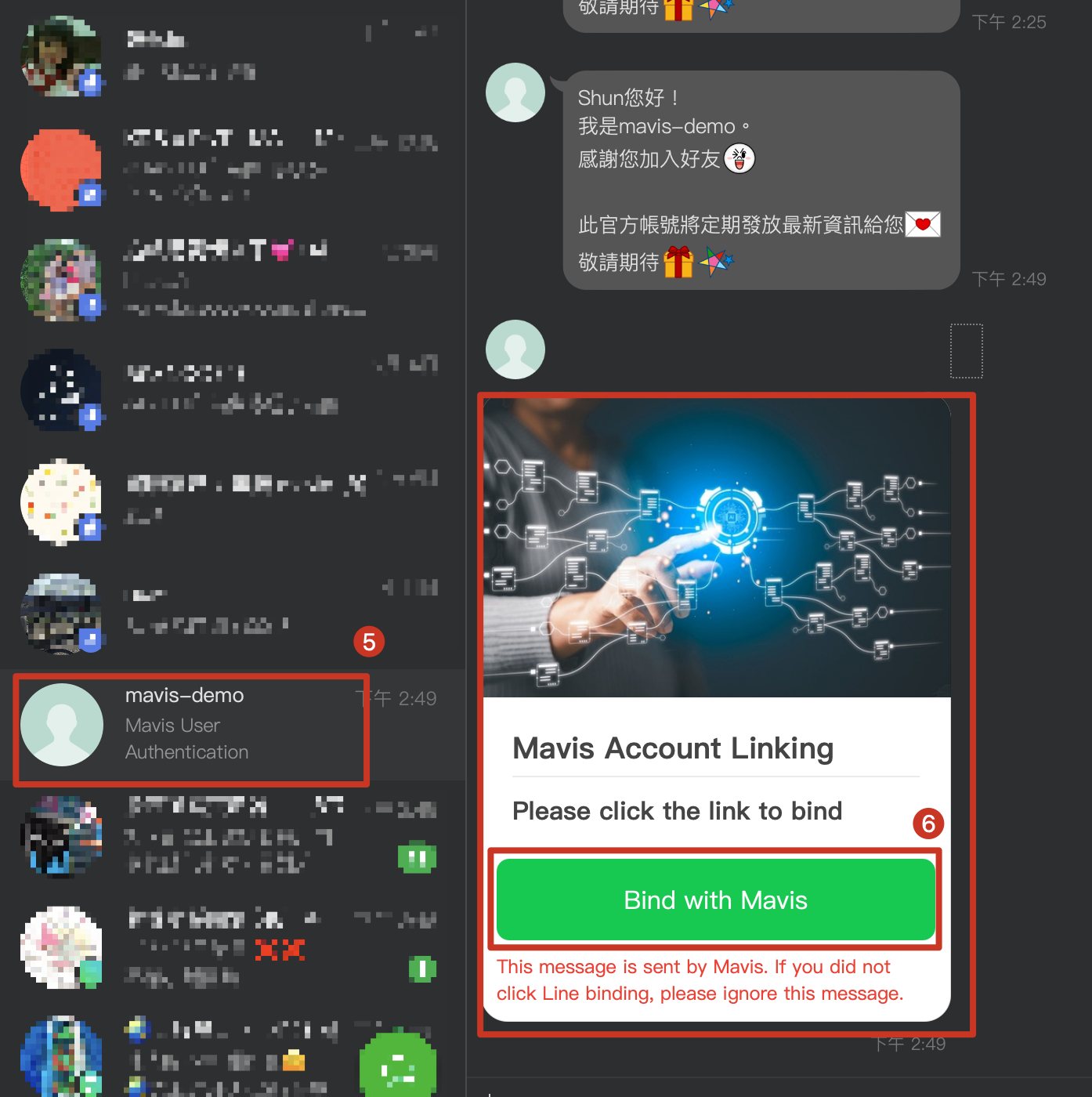

5.A message from the mavis-demo LINE Official Account will appear

6.Tap Bind with Mavis in the LINE message

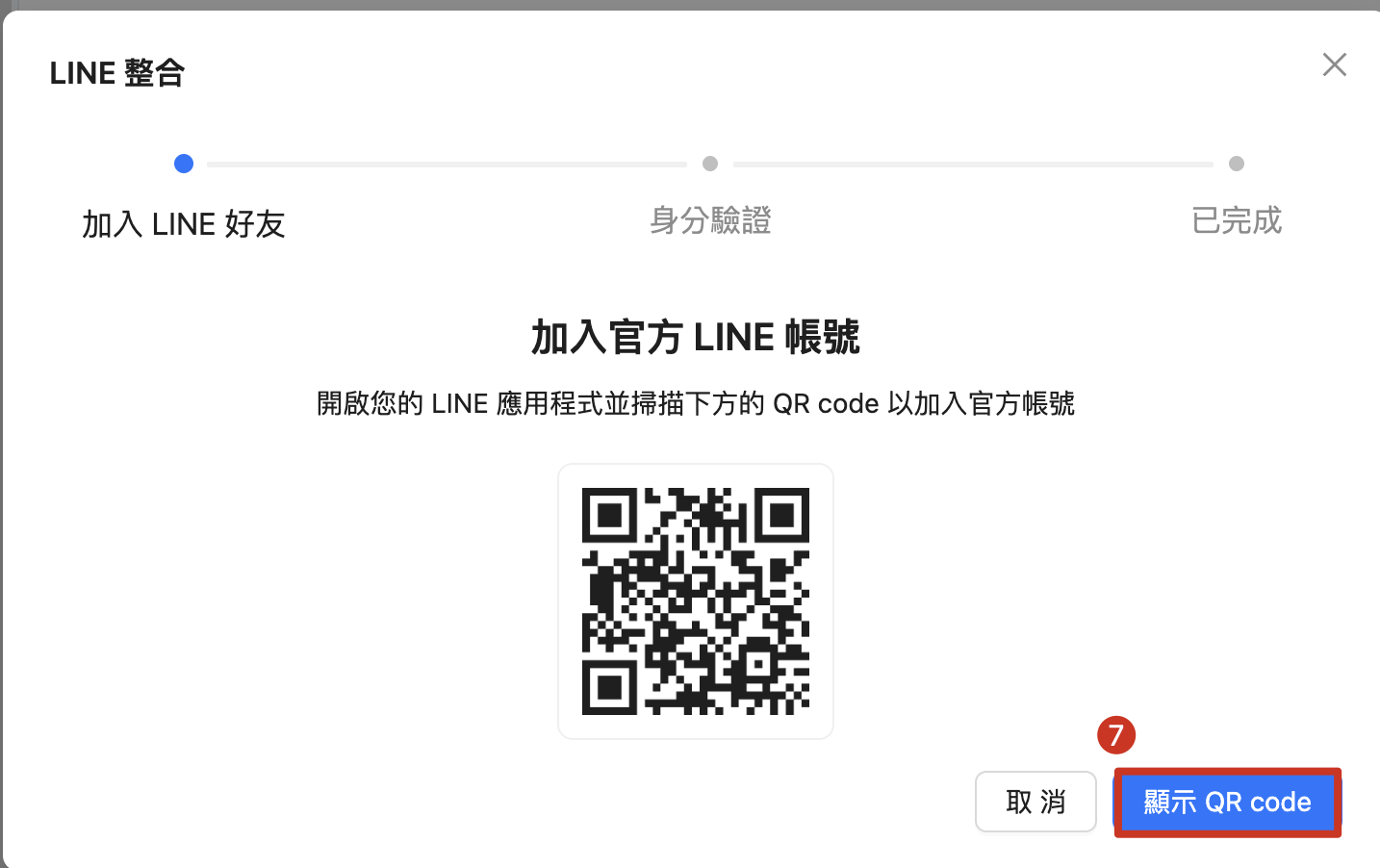

7.Return to Mavis and click Show QR Code

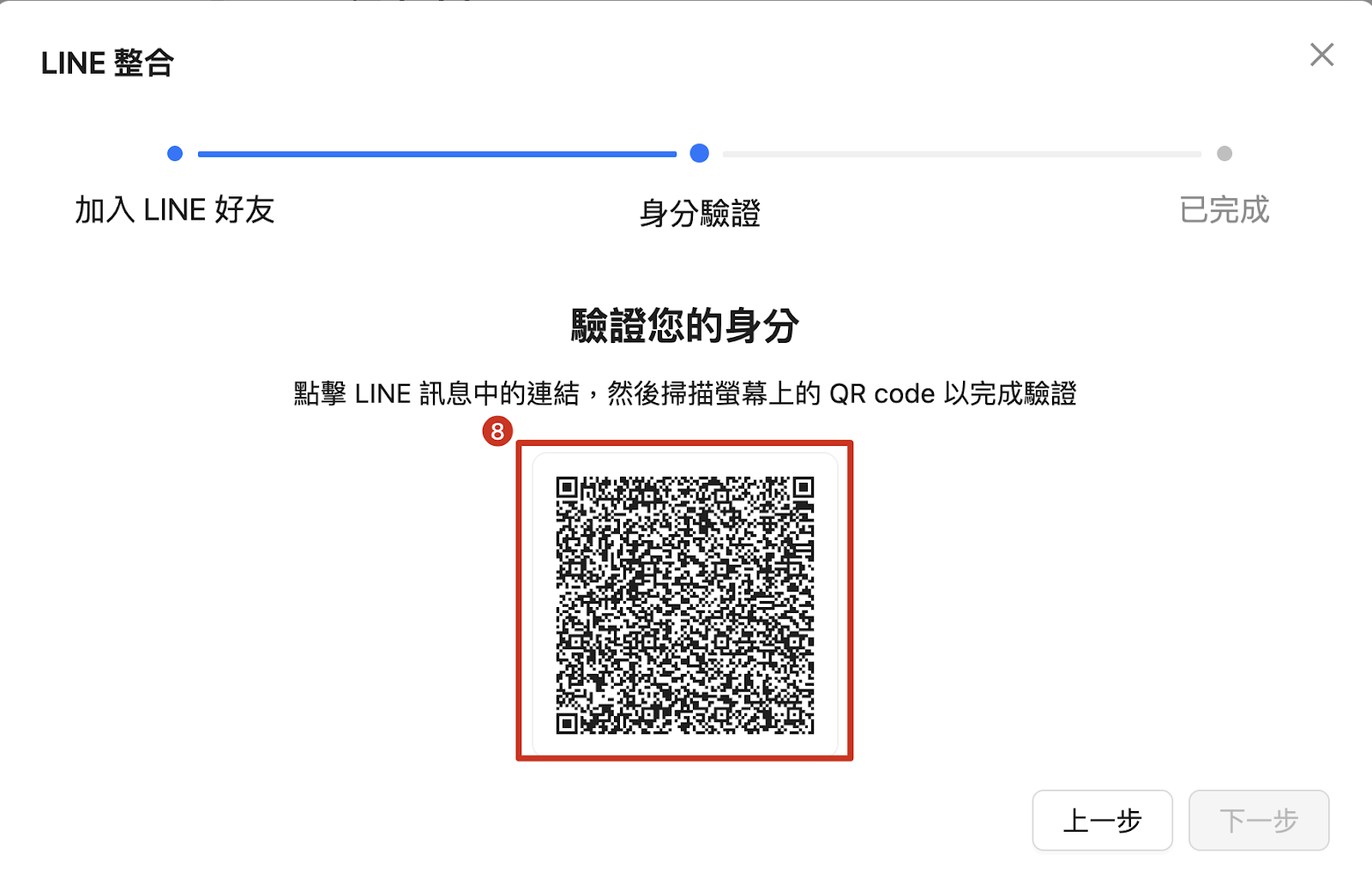

8.Scan the QR code again using LINE

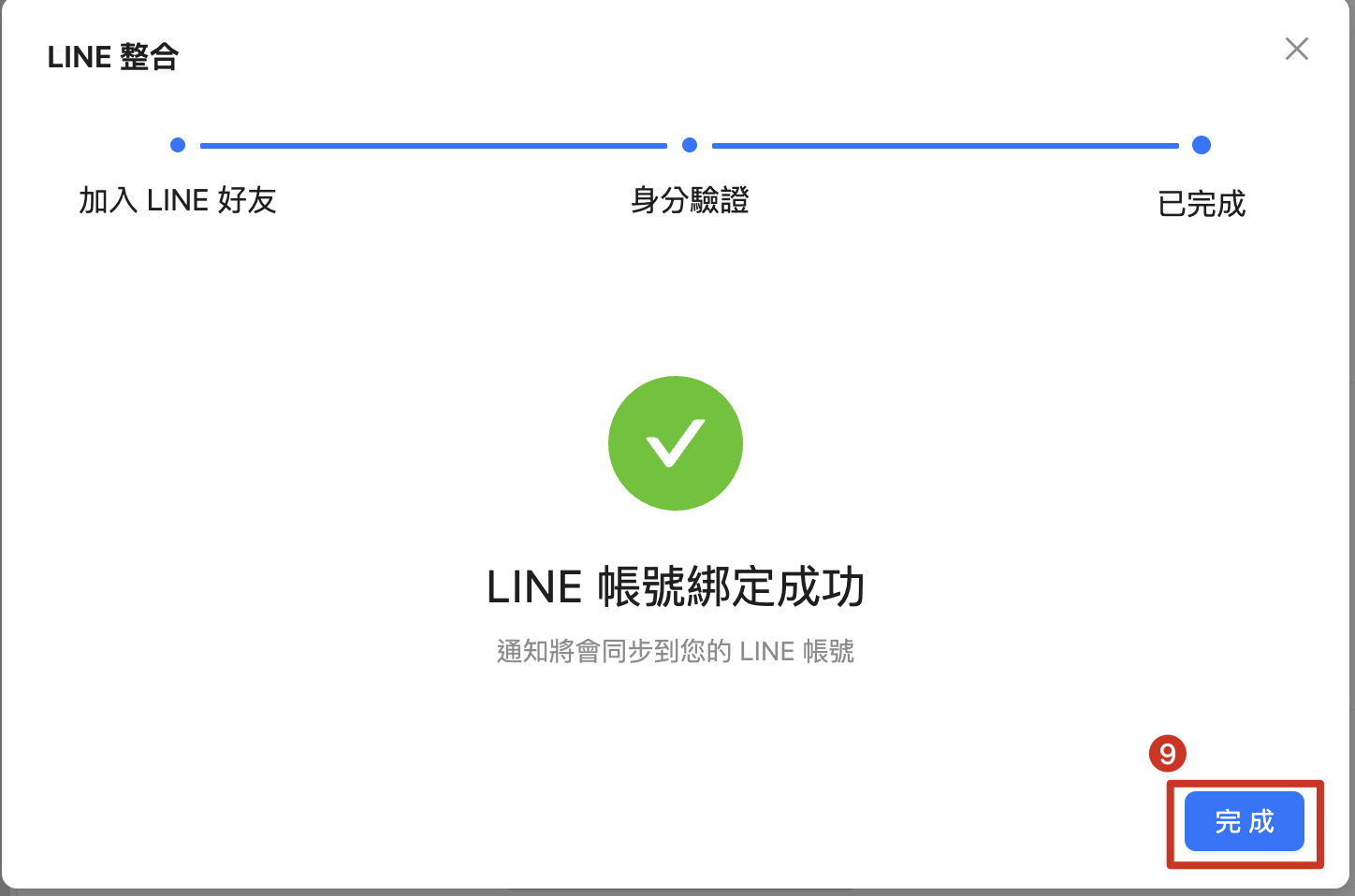

9. A success message will confirm the binding — click Done

6.Receive LINE Alerts for Blacklisted SSH Commands

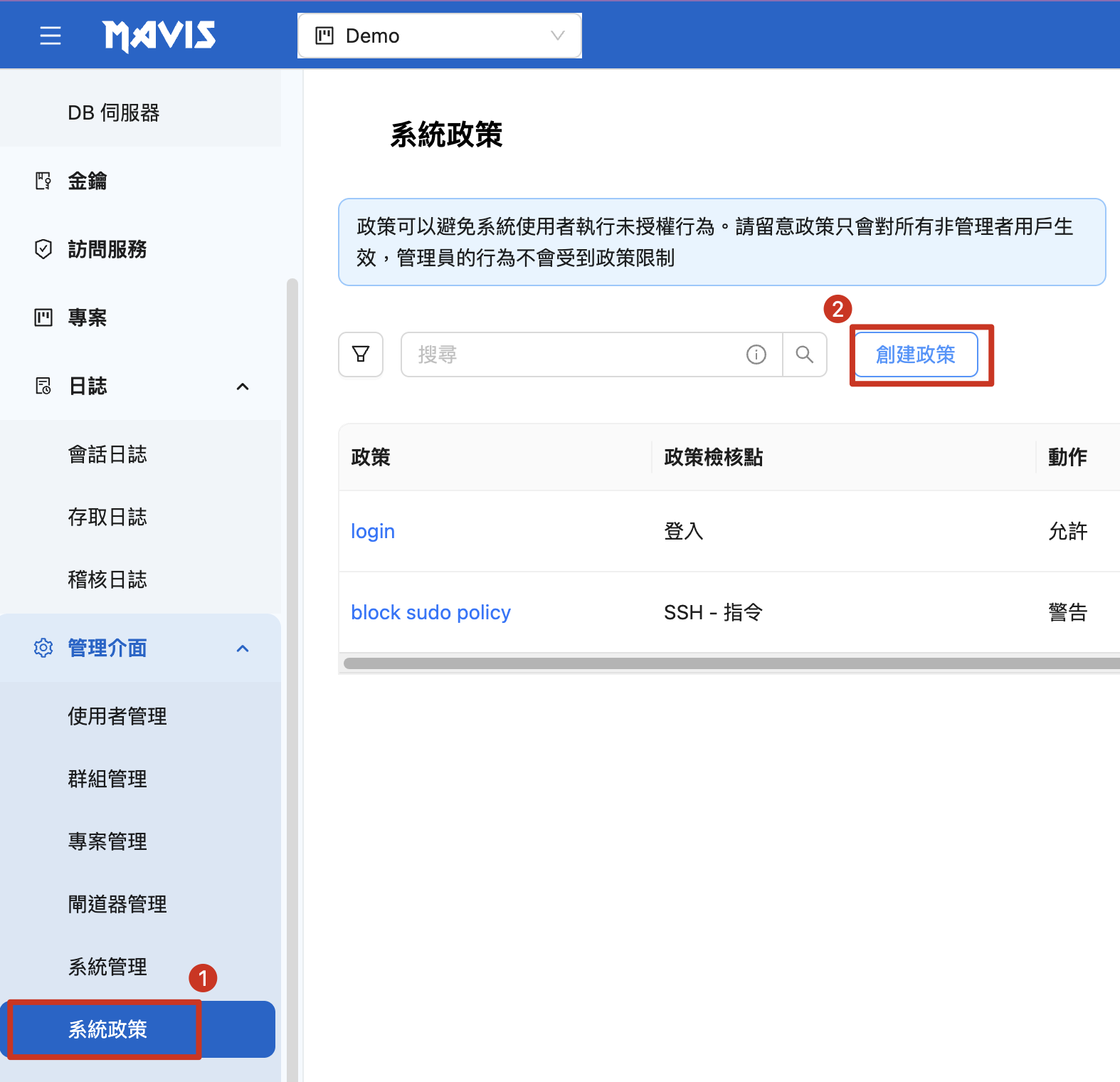

1.Navigate to System Policy

2.Click Create Policy

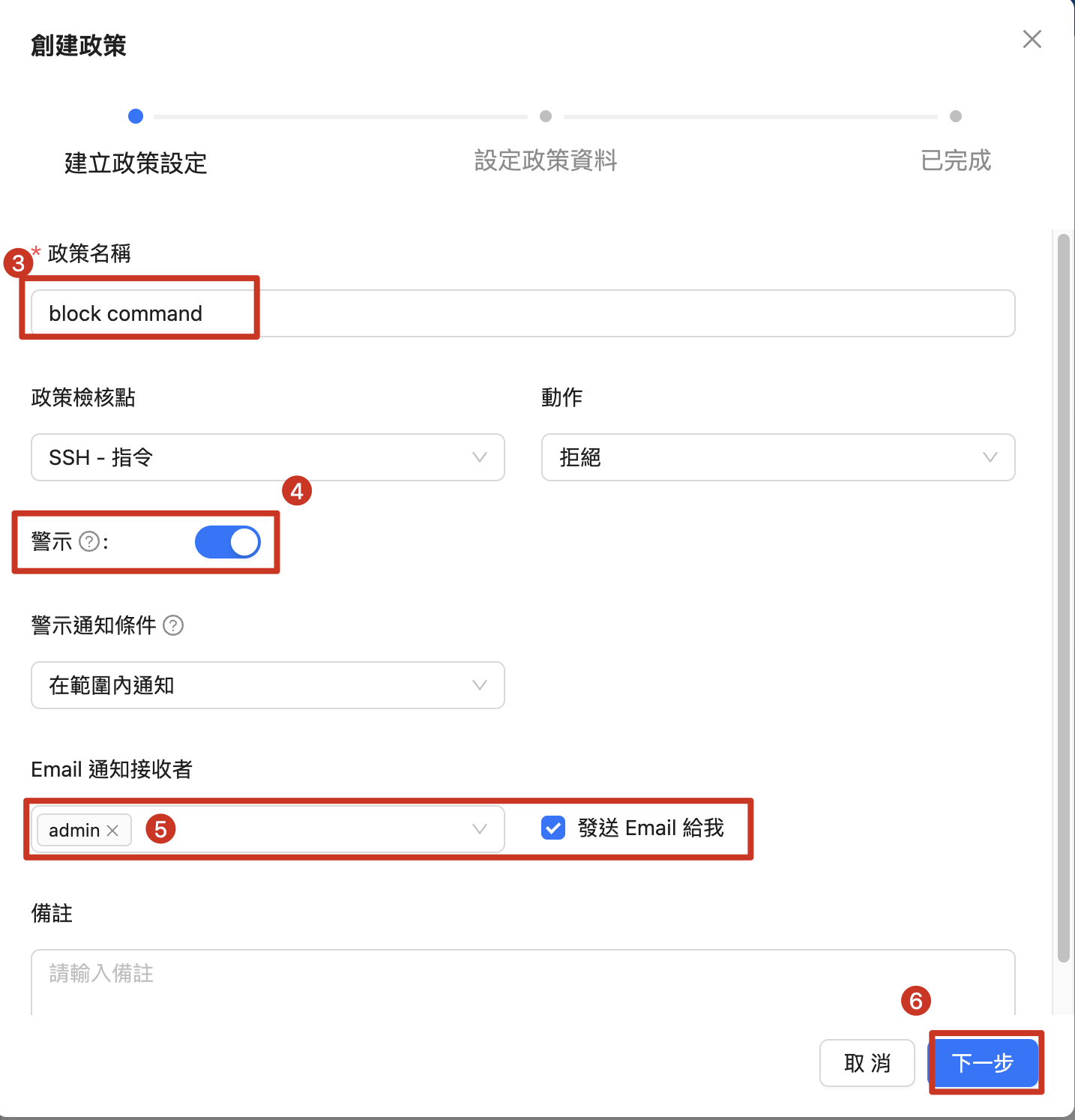

3.Enter a custom Policy Name

4.Enable the Alert toggle

5.Select notification recipients and check Send email to me

6.Click Next

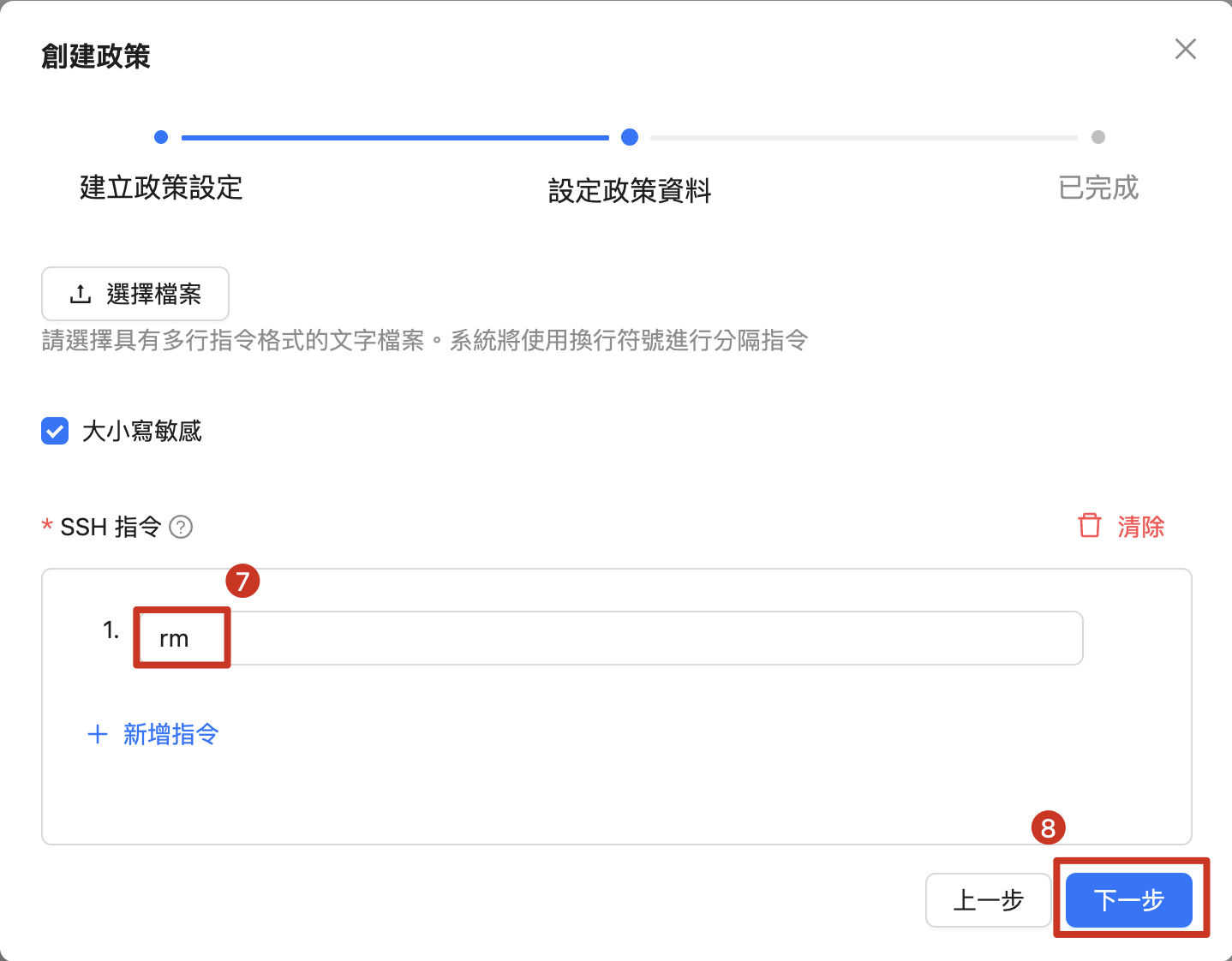

7.Add a blacklisted SSH command (e.g., rm)

8.Click Next

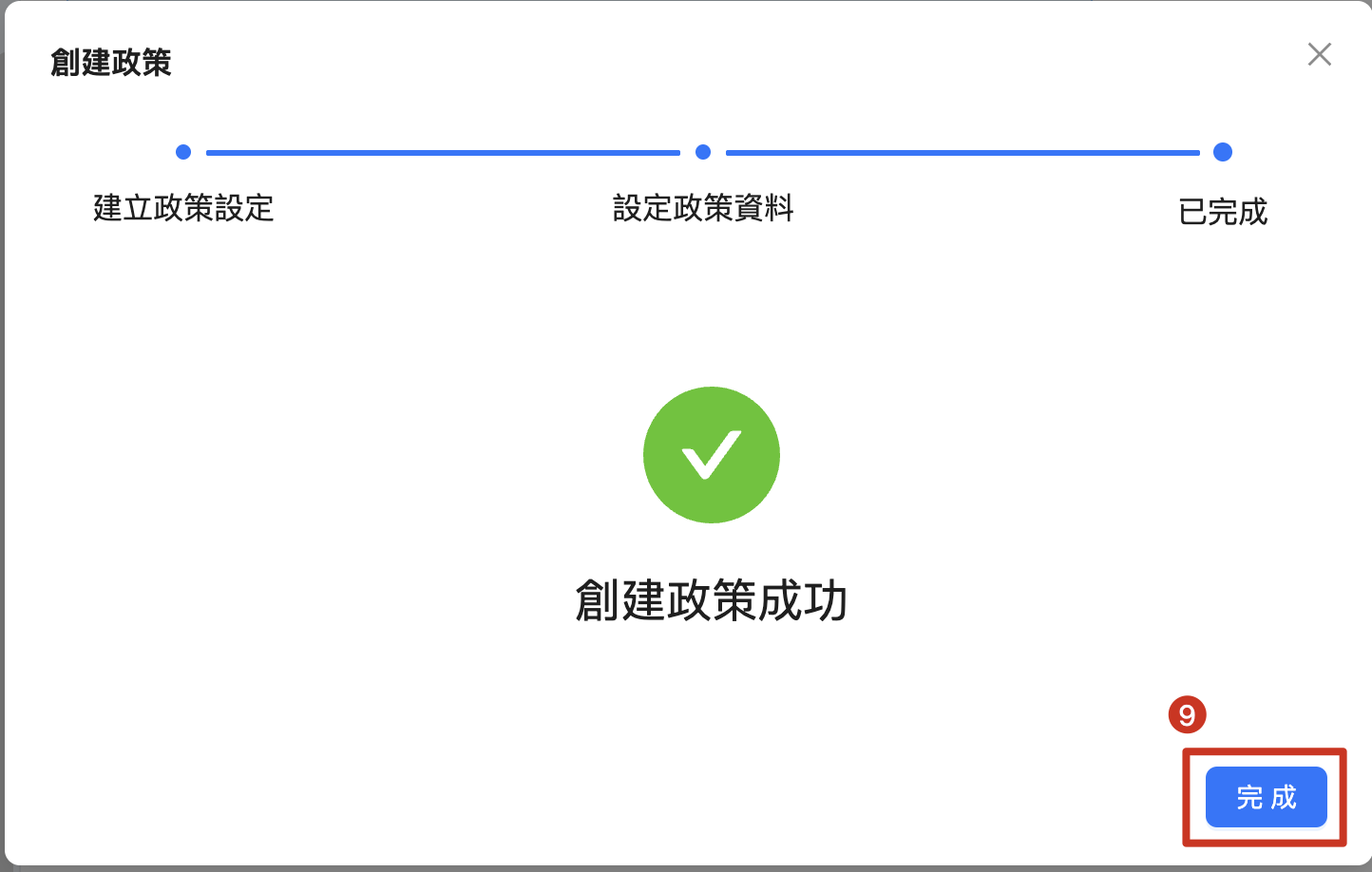

9.then Complete

  • Triggering Blacklisted Command as a General User

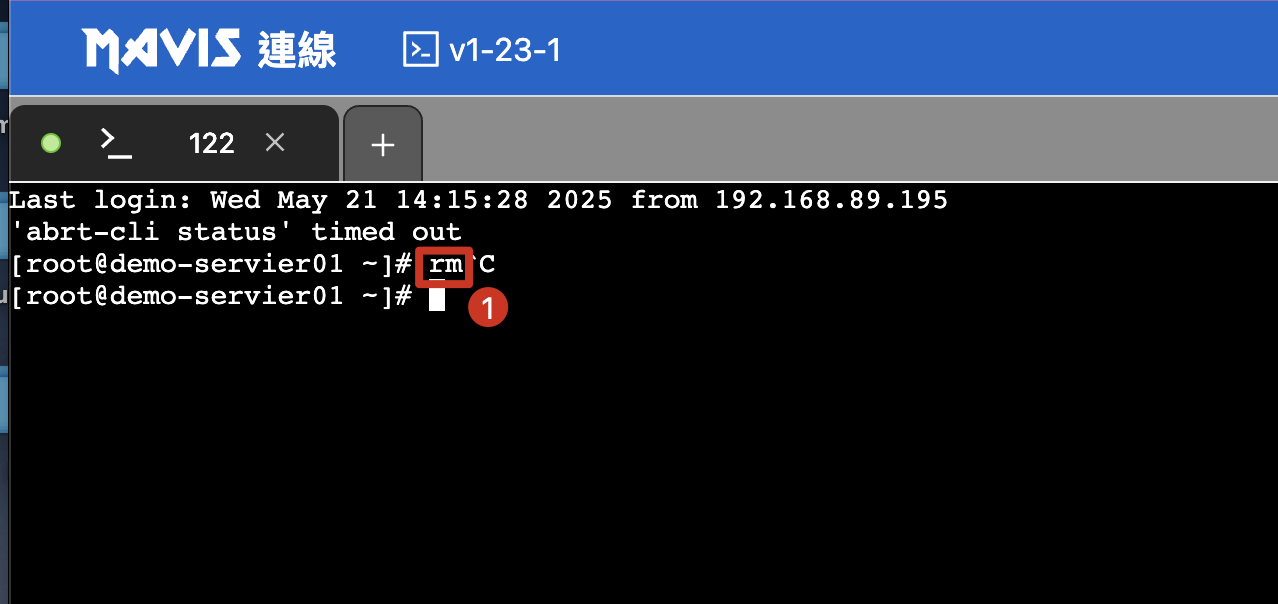

1.After logging in, a general user connects to the server via SSH.

The user executes a blacklisted command (e.g., rm).

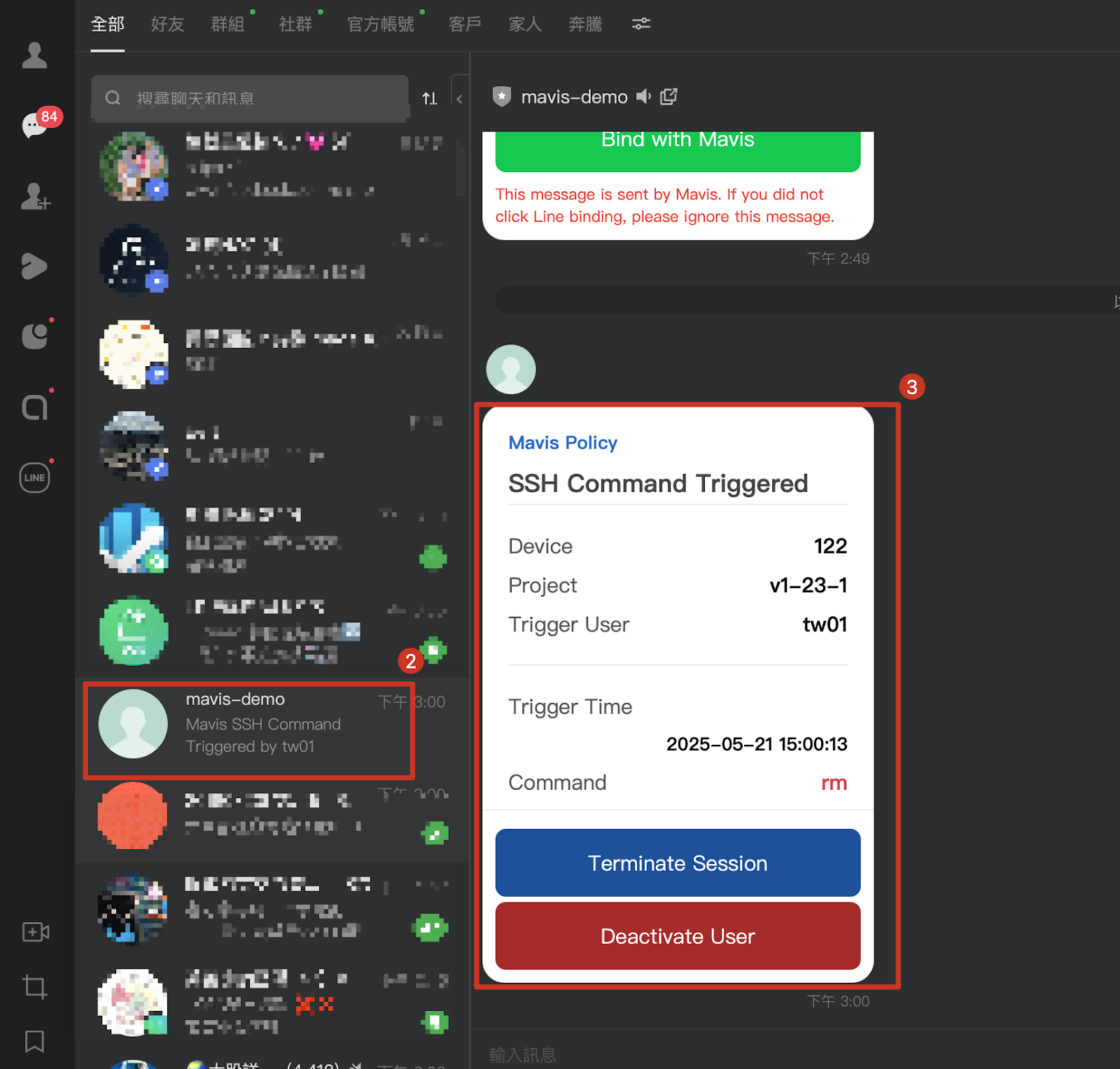

  • The administrator receives a security alert via the connected LINE Channel when a blacklisted command is triggered.

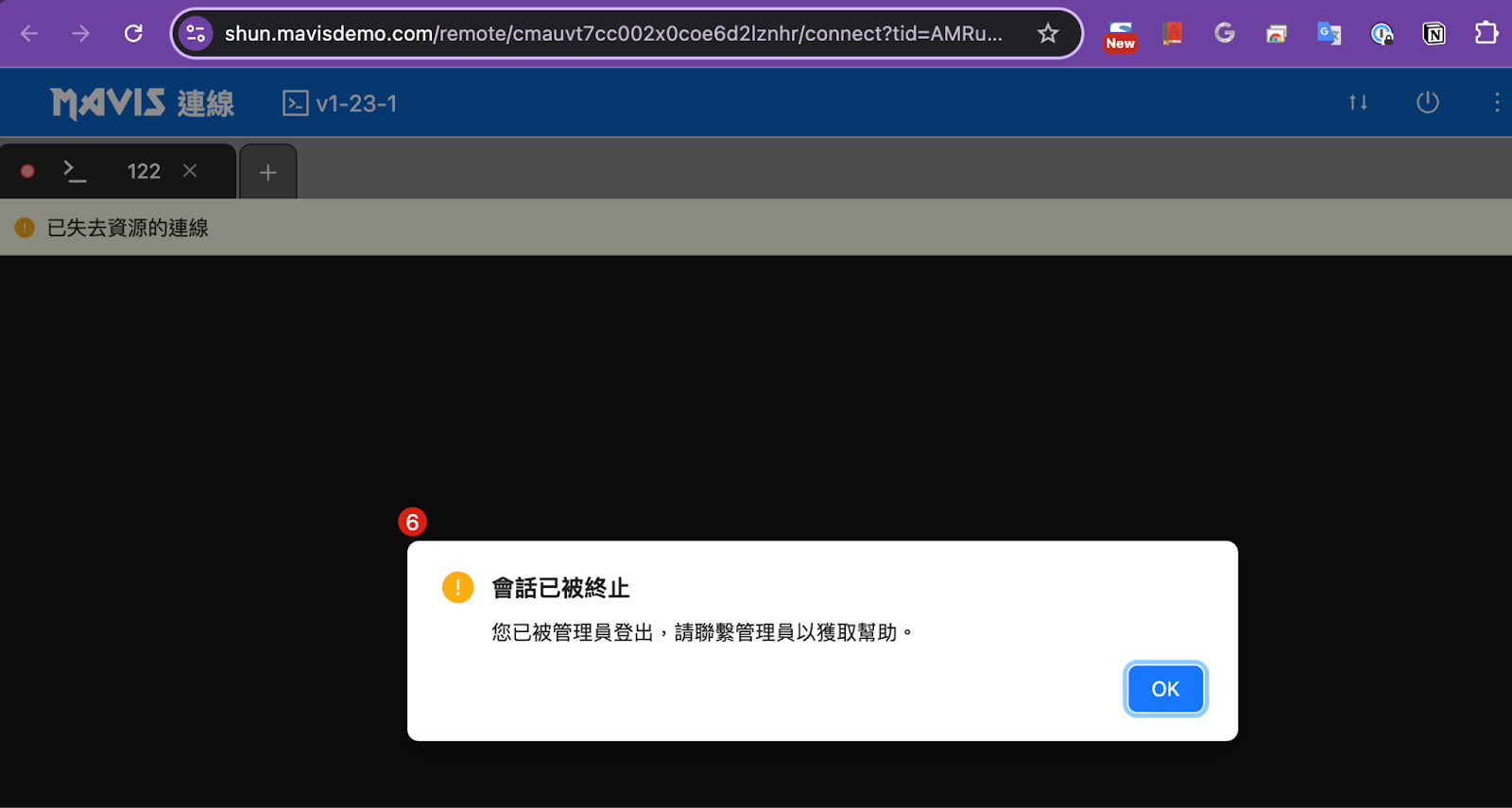

  • The screen displayed when the user session is terminated.
