Database Connection Guide

  • Updated

For information on currently supported database types, please refer to: Supported DB Server Types and Versions.



Mavis’s new database connection feature specifically supports connecting to PostgreSQL using the MD5 protocol. Below is some information on how to connect to a PostgreSQL database in Mavis:

  • Supported Database Connections: Currently supports PostgreSQL connections using the MD5 protocol.

  • Supported IDEs: This feature has been tested and is supported in pgweb and DBeaver.

  • Supported Libraries: Compatibility has been verified with Node pg and Node TypeORM.

1. Create a DB Server

1.1 Add a DB Server

Click DB Servers

Click Add DB Server

Enter a custom DB server name

Enter the DB server host IP

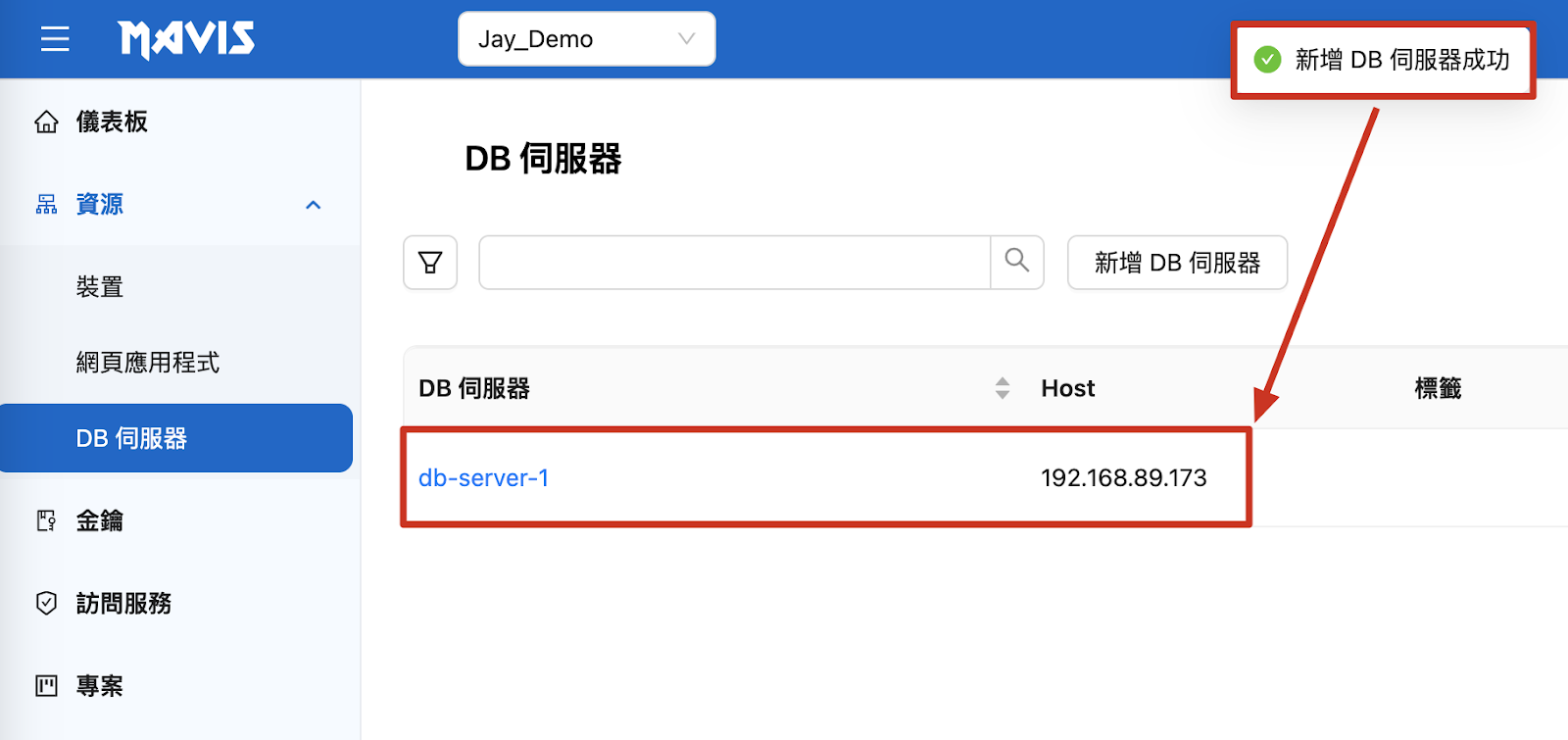

Confirm to add

1. 點擊 DB 伺服器
2. 點擊 新增 DB 伺服器
3. 輸入 自訂 DB 伺服器名稱
4. 輸入 DB 伺服器 Host IP
5. 確認後 新增

1.2 Add DB Server Key

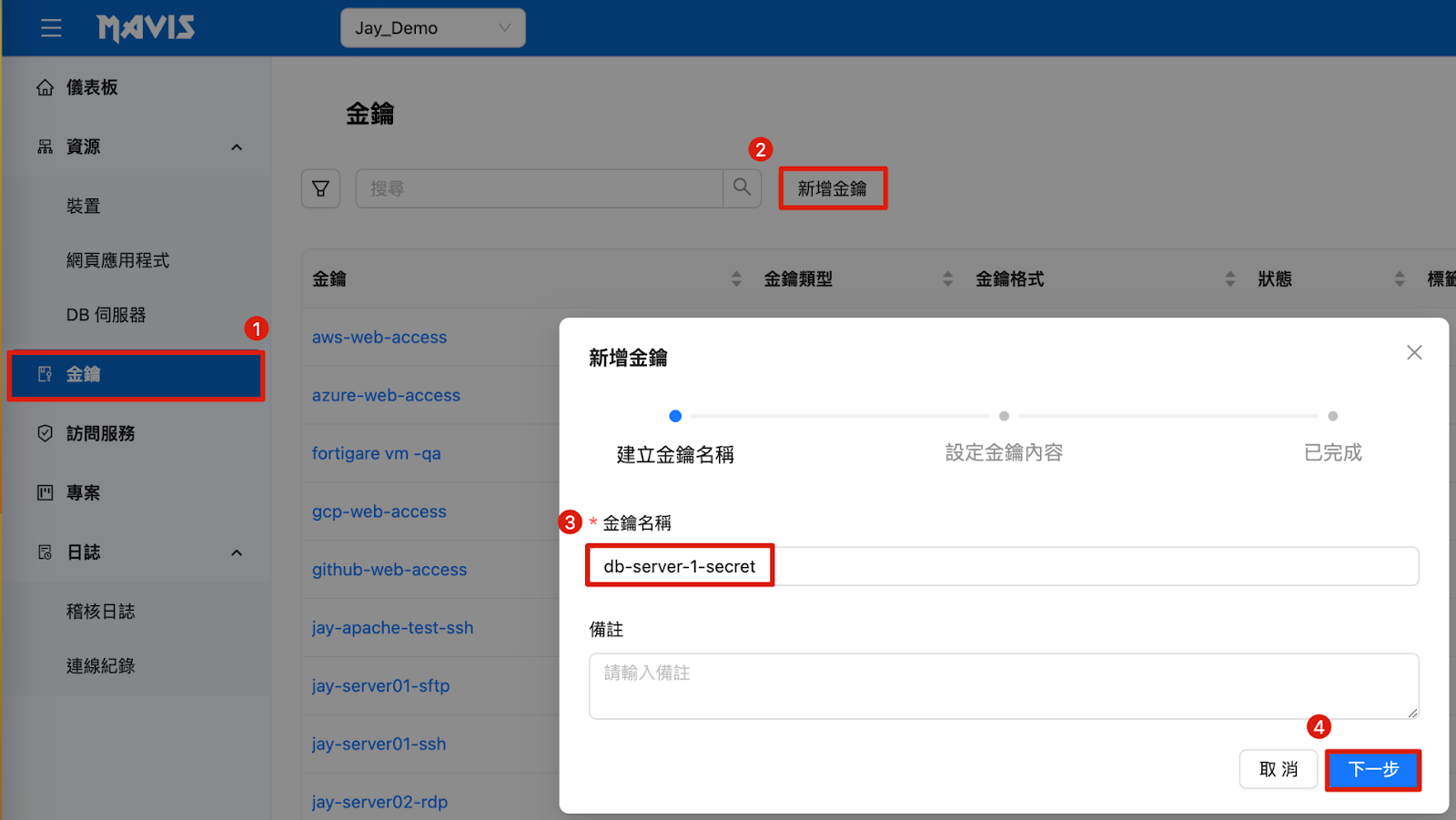

  1. Click Keys

  2. Click Add Key

  3. Enter a custom key name

  4. Click Next

1. 點擊 金鑰
2. 點擊 新增金鑰
3. 輸入 自訂金鑰名稱
4. 下一步

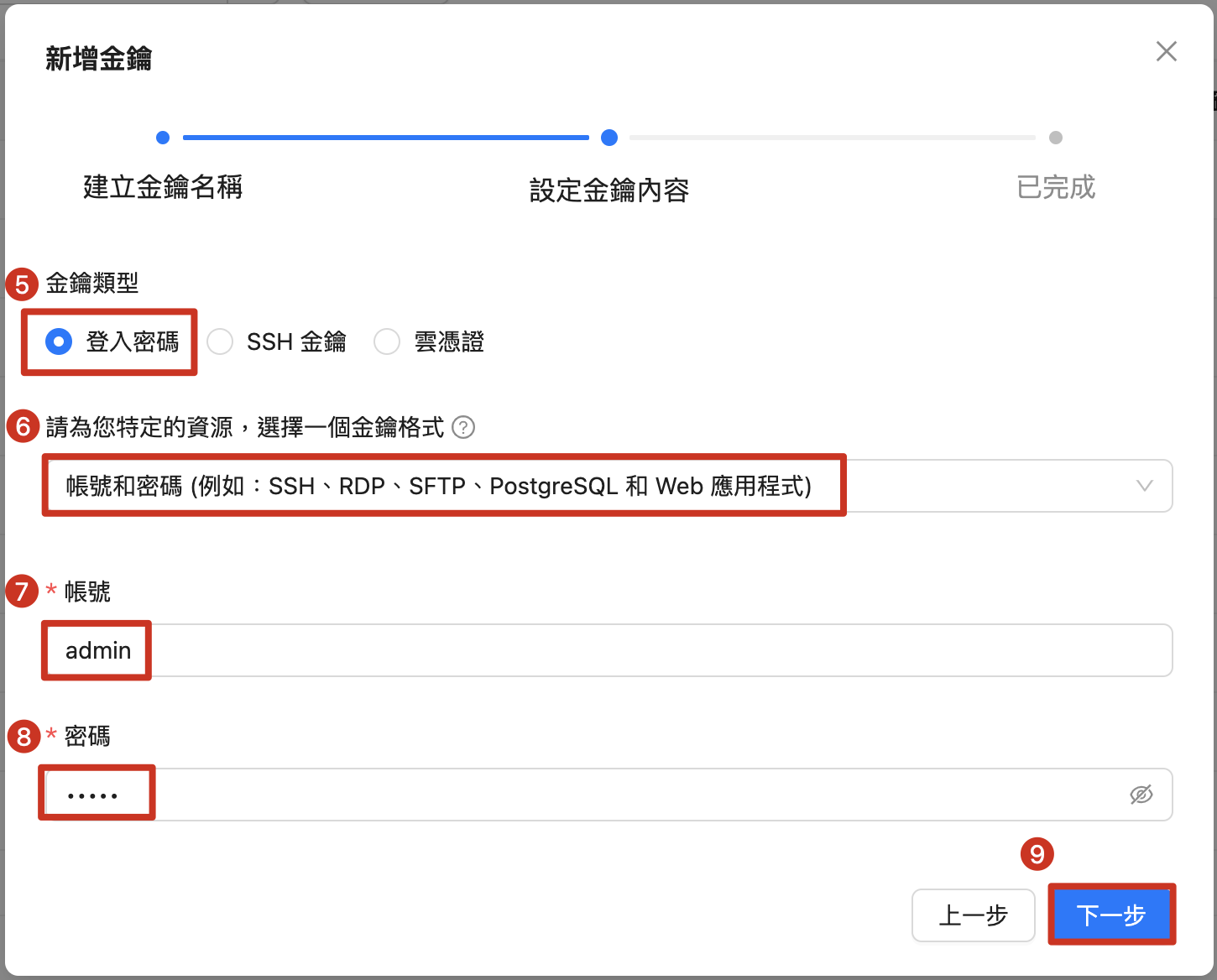

Select key type: For PostgreSQL, use login password

Select key format for binding to resources: PostgreSQL uses username and password

Enter PostgreSQL username

Enter PostgreSQL password

Click Next

5. 選擇金鑰類型：PostgreSQL 使用登入密碼
6. 選擇綁定資產的金鑰格式：PostgreSQL 使用帳號和密碼
7. 輸入 PostgreSQL 帳號
8. 輸入 PostgreSQL 密碼
9. 下一步

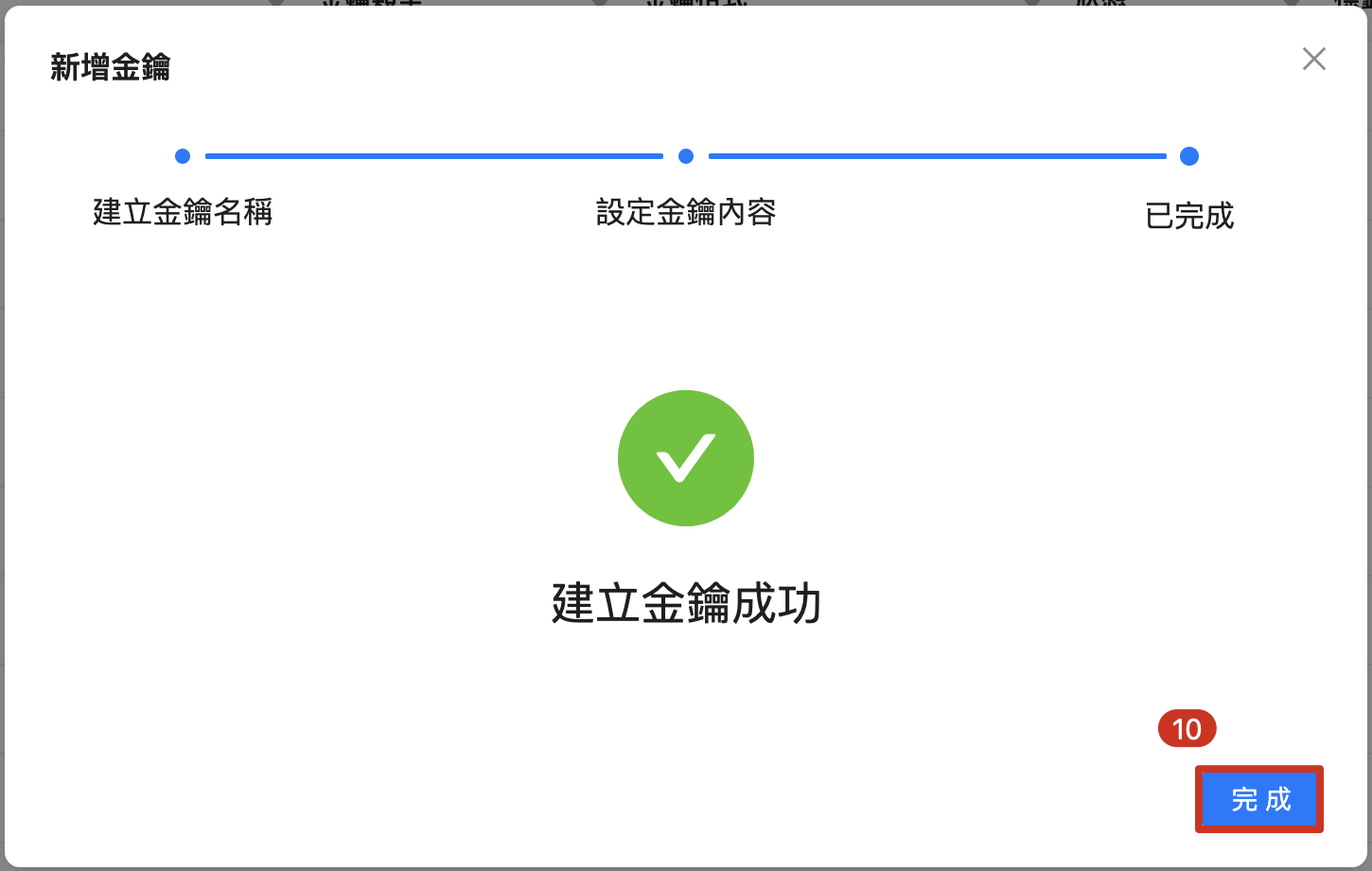

Complete

10. 完成

1.3 Create DB Server Access Service

  1. Click Access Services

  2. Click Create Access Service

  3. Enter a custom access service name

  4. Click Next

1. 點擊 訪問服務
2. 點擊 建立訪問服務
3. 輸入 自訂訪問服務名稱
4. 下一步

Select resource: DB Server

Protocol type: Currently only supports MD5 authentication for PostgreSQL version 13 or below

Enter PostgreSQL port

Enter database name

Click Next

5. 資源選擇 DB 伺服器
6. 傳輸協定類別：目前僅支援 PostgreSQL 版本 13 及以下的 MD5 認證方式。
7. 輸入 PostgreSQL 連接埠
8. 輸入 Database 名稱
9. 下一步

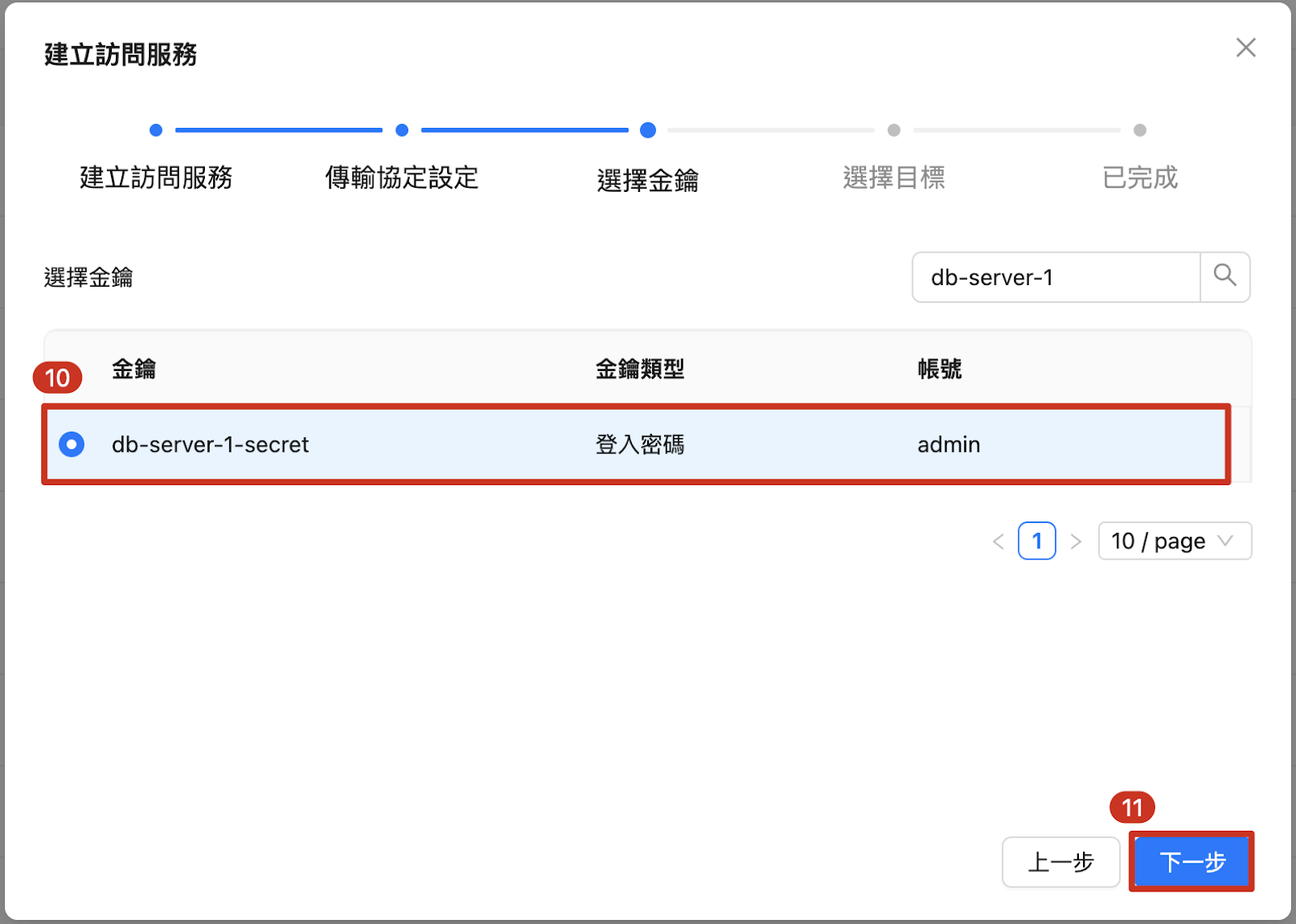

Confirm key name, type, and account

Click Next

10. 確認 金耀名稱、類型、帳號
11. 下一步

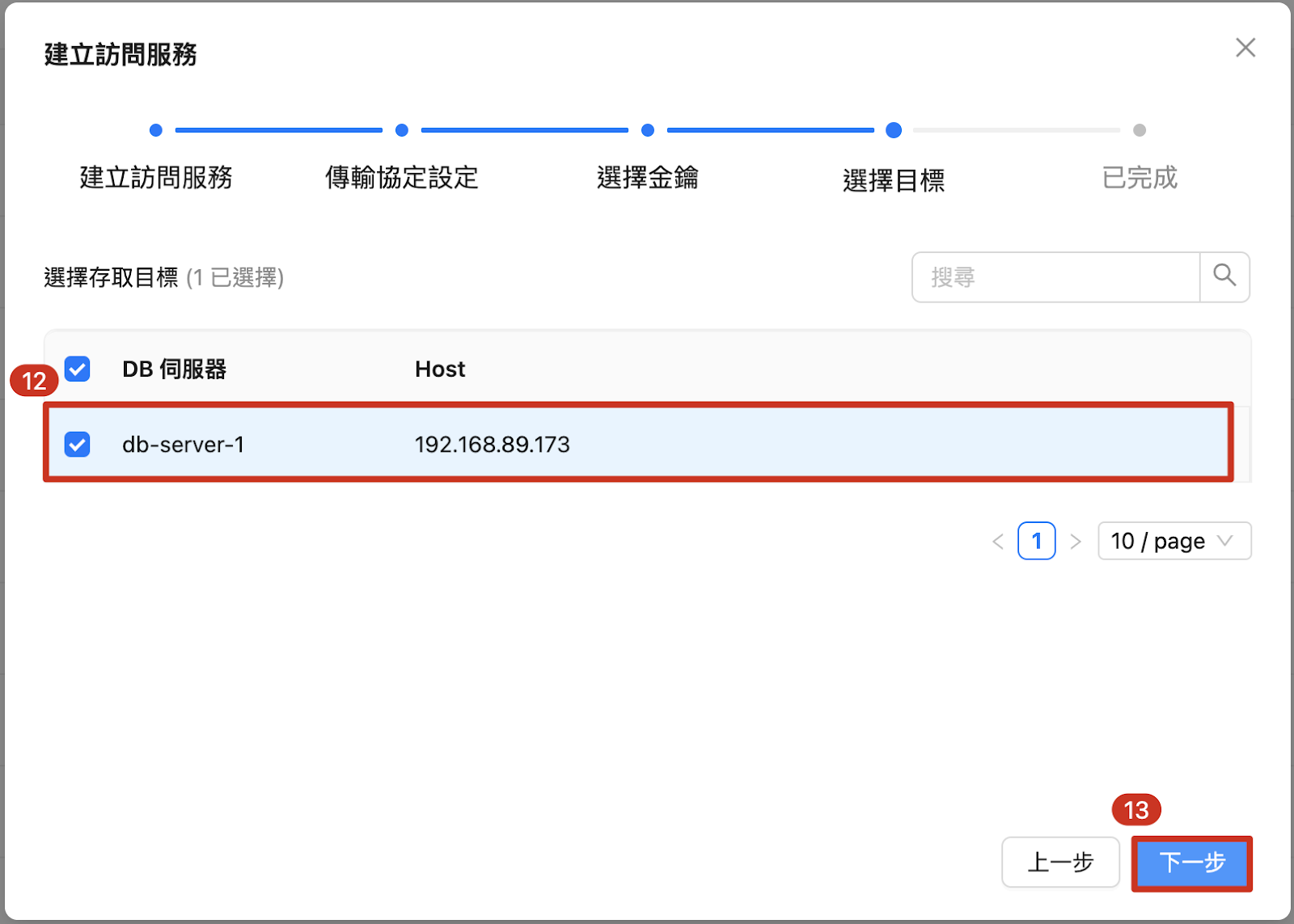

12. 選擇綁定的 DB 伺服器
13. 下一步

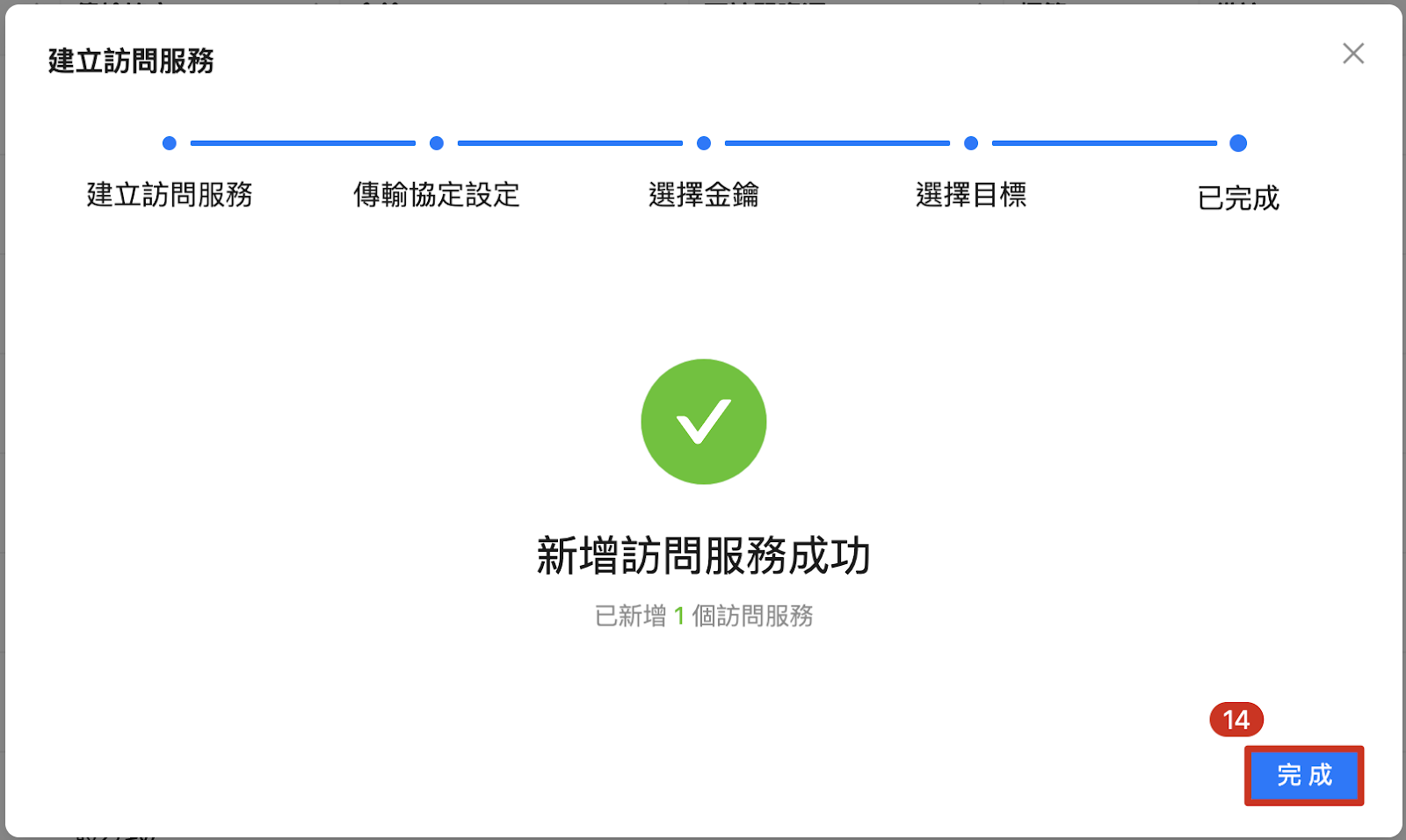

Complete

14. 完成

2. Retrieve DB Server Connection Info

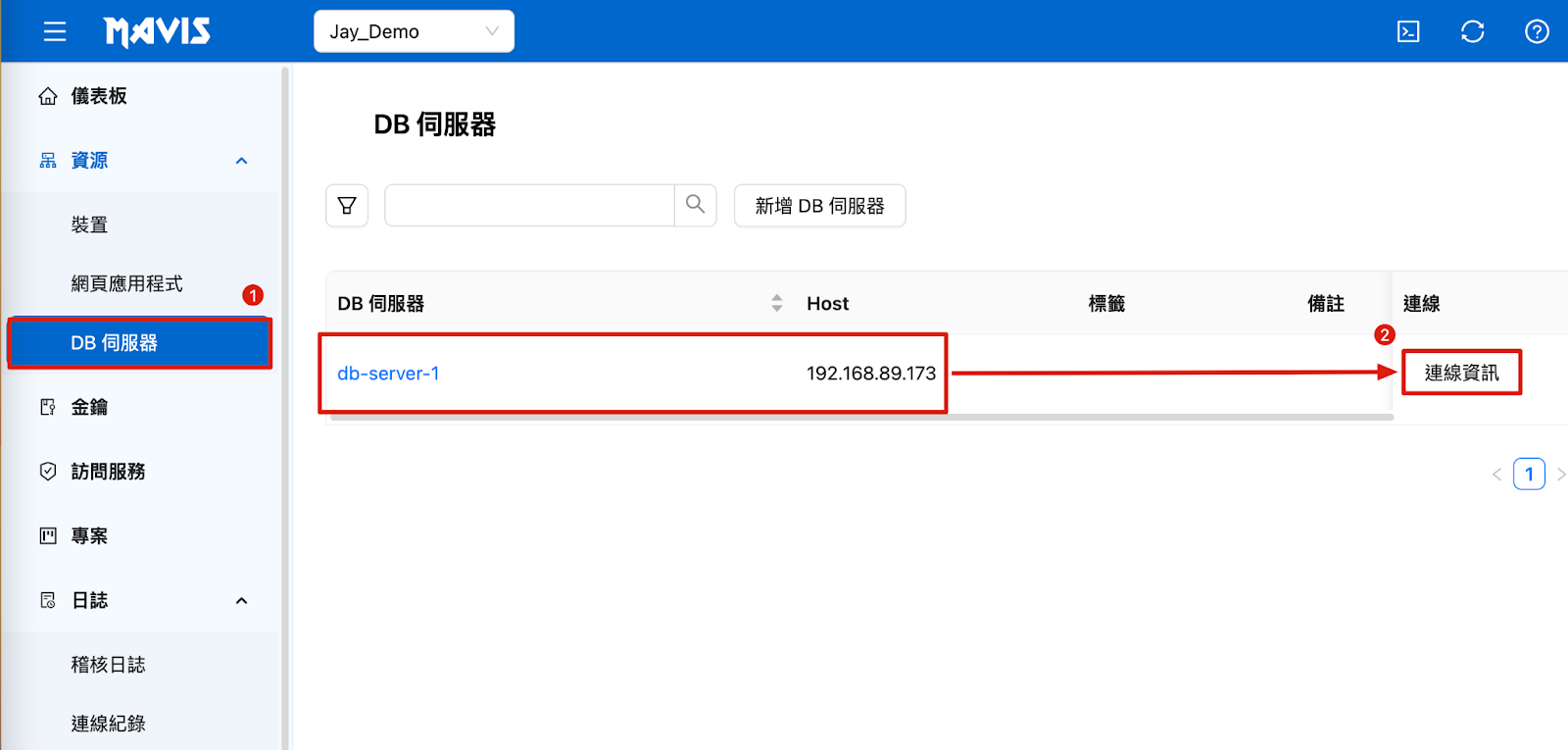

  1. Click DB Servers

  2. Click the DB server that has already been added and bound to an access service to view connection info

1. 點擊 DB 伺服器
2. 點擊 已添加並綁定訪問服務的 DB 伺服器才會顯示的連線資訊

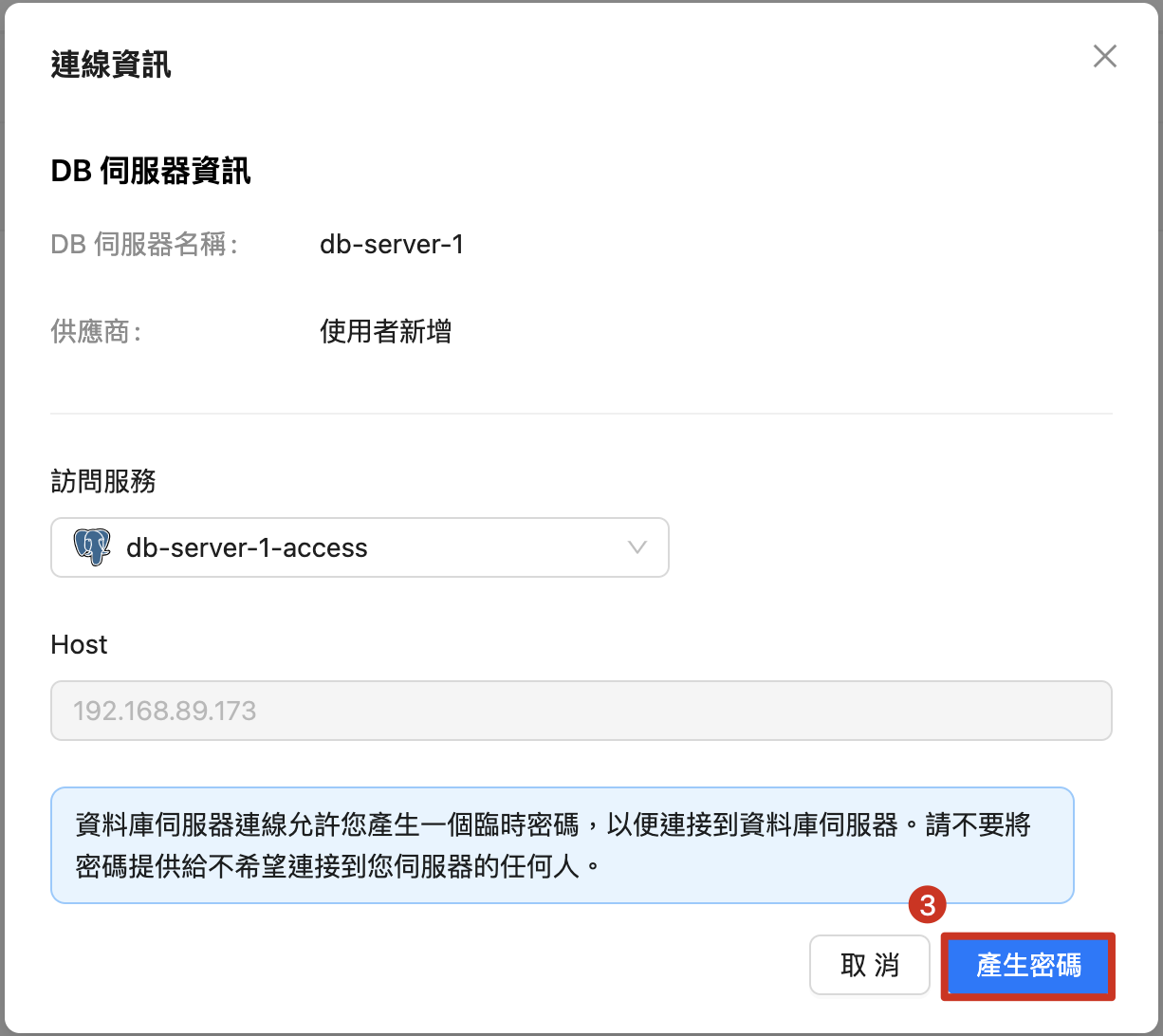

Click Generate Password



3. 點擊 產生密碼

Obtain DB server connection info and temporary password

4. 取得 DB 伺服器連線資訊及臨時密碼

3. DB Server Connection Test

3.1 Test Connection Using DBeaver

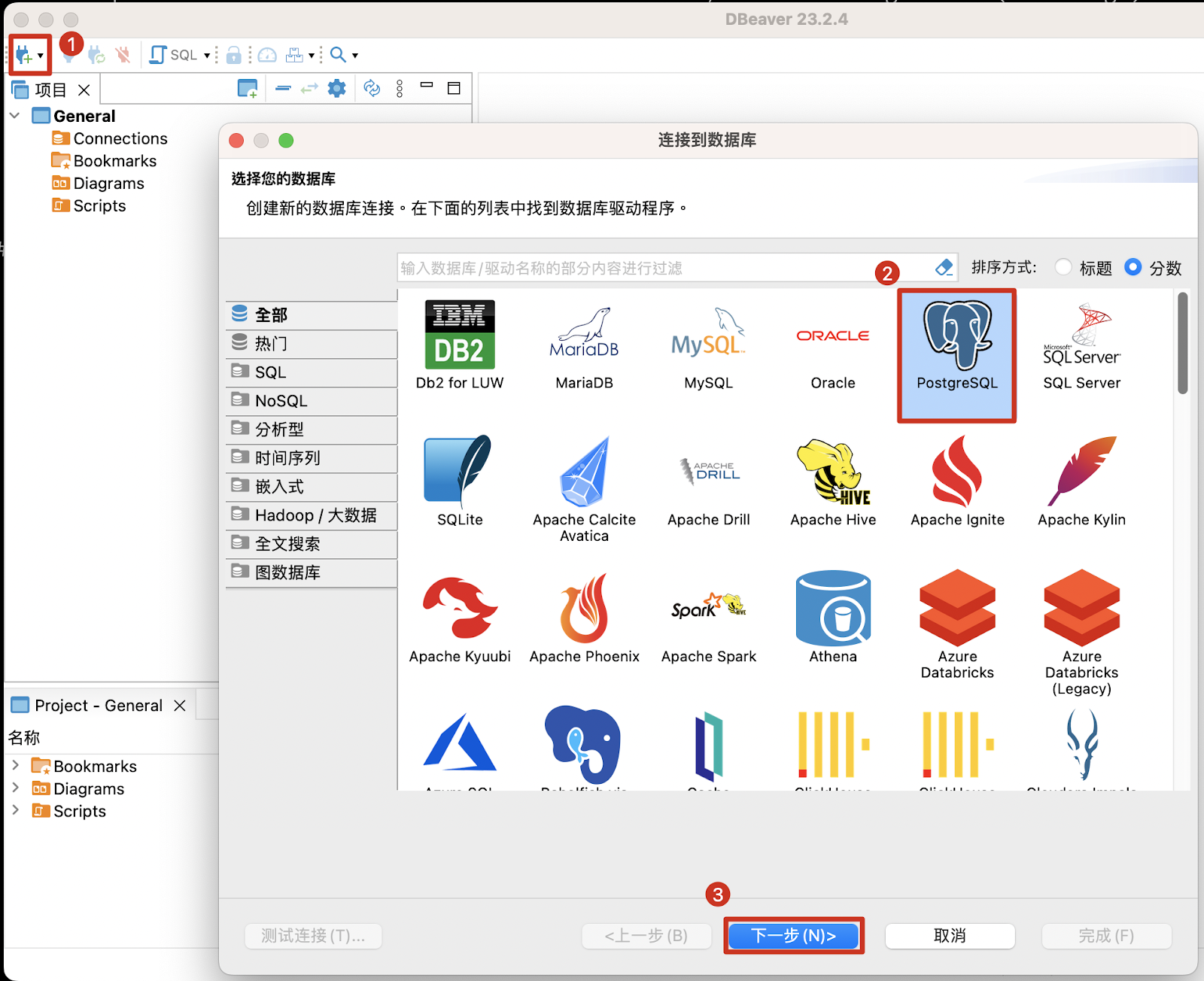

  1. Open DBeaver and click New Database Connection

  2. Select PostgreSQL

  3. Click Next

1. 點擊 新建數據庫連接
2. 選擇 PostgreSQL
3. 下一步

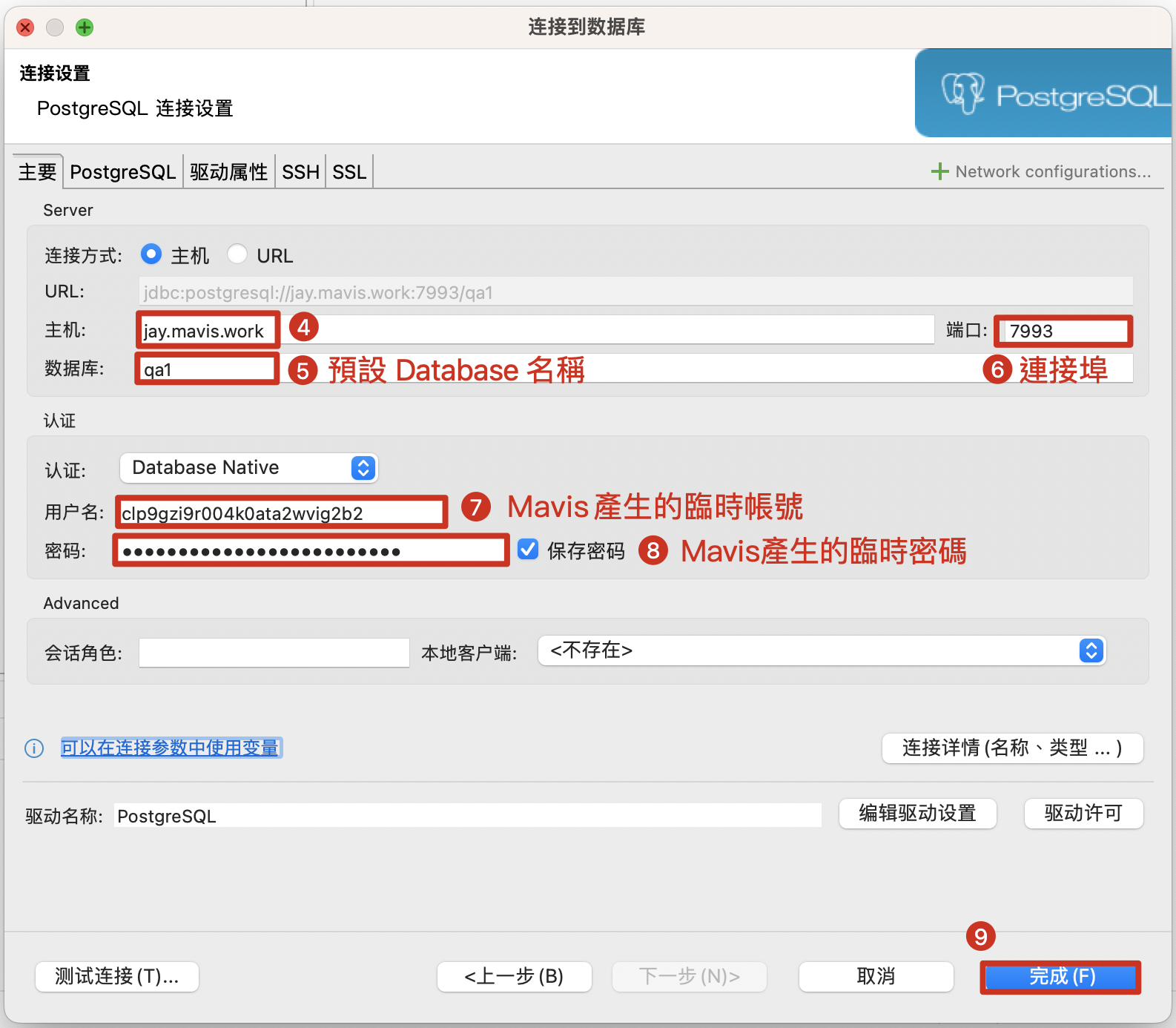

Enter the host from the Mavis-generated DB server info (example: jay.mavis.work)

Enter the default database name

Enter the port

Enter the temporary username generated by Mavis

Enter the temporary password generated by Mavis

Complete setup

4. 輸入 Mavis 產生的 DB 伺服器資訊 Host 欄位， 此範例 jay.mavis.work
5. 輸入 預設 Database 名稱
6. 輸入 連接埠
7. 輸入 Mavis 產生的臨時帳號
8. 輸入 Mavis 產生的臨時密碼
9. 完成

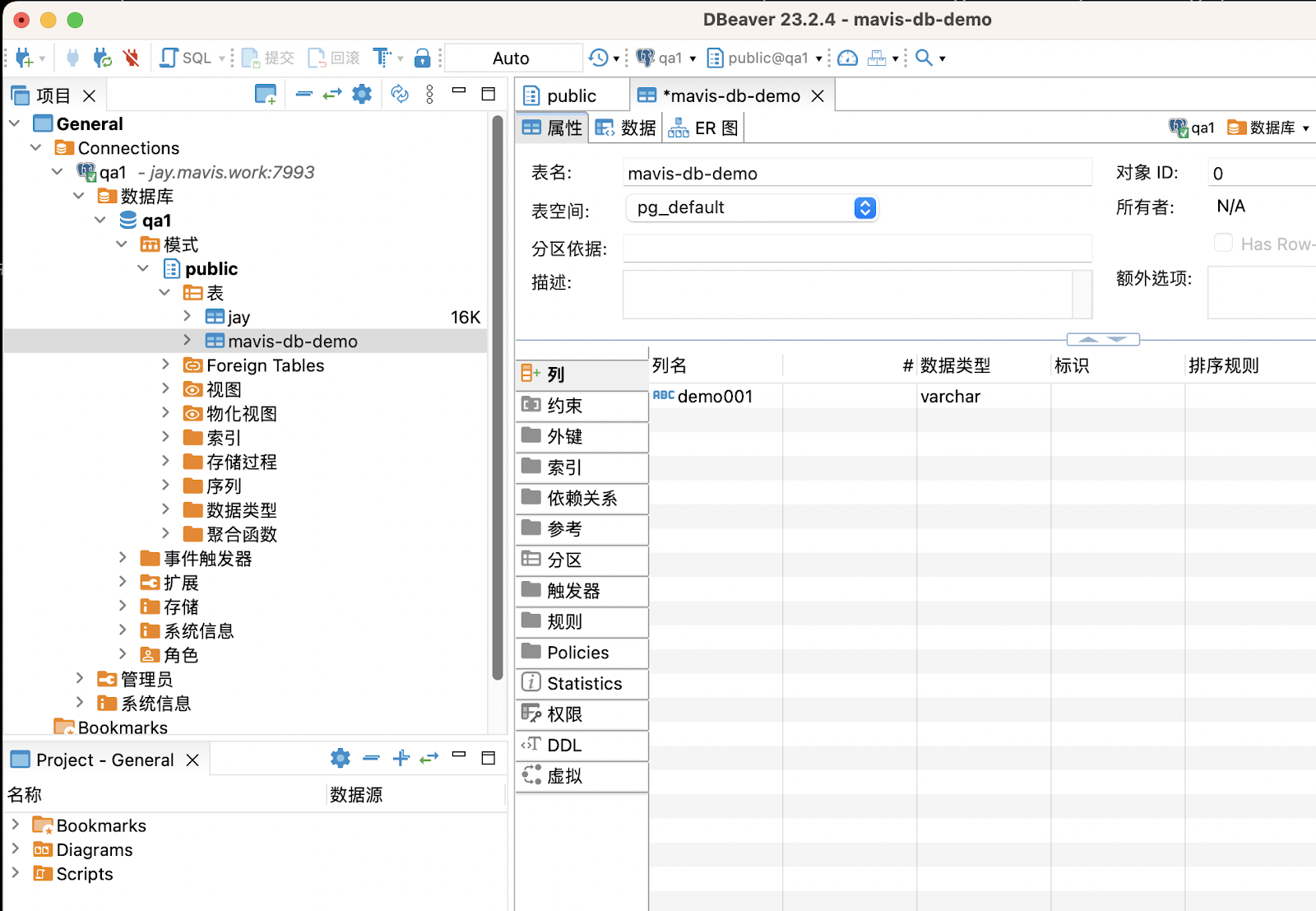

Connection successful



3.2 View DB Server Connection Records

Note: DB server connection records are generated 30 minutes after the DB session disconnects.

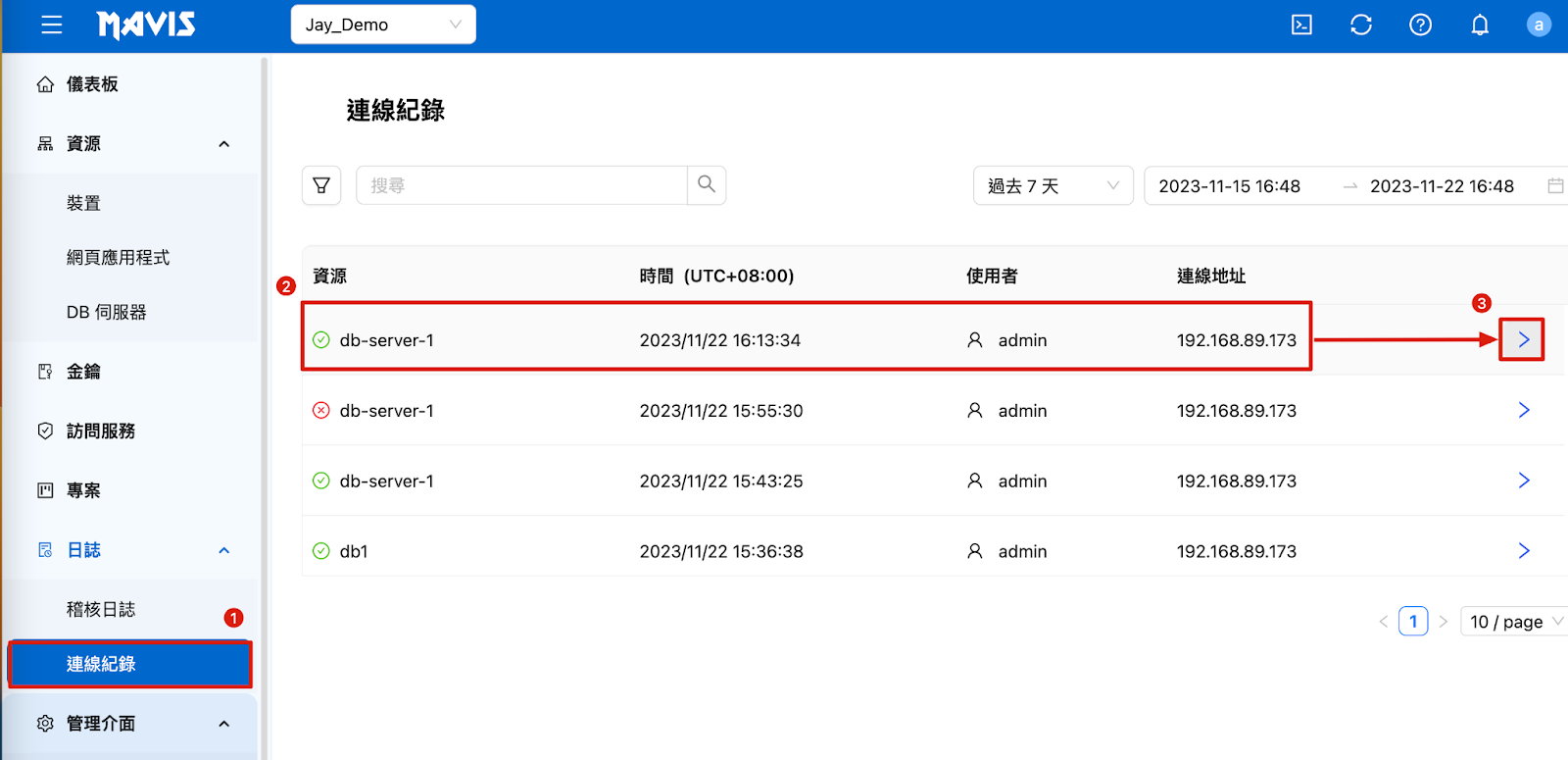

  1. Click Connection Records

  2. Find the DB server that has ended its session

  3. Click the > symbol to view details

1. 點擊 連線紀錄
2. 查找 已連線結束後的 DB 伺服器
3. 點擊 > 符號
