After installing Mavis, open your browser and enter the URL to access the Mavis login page. Log in using the default administrator account and password.
1. Activate License
Enter your Mavis license key to successfully log in.
2. Create a Project

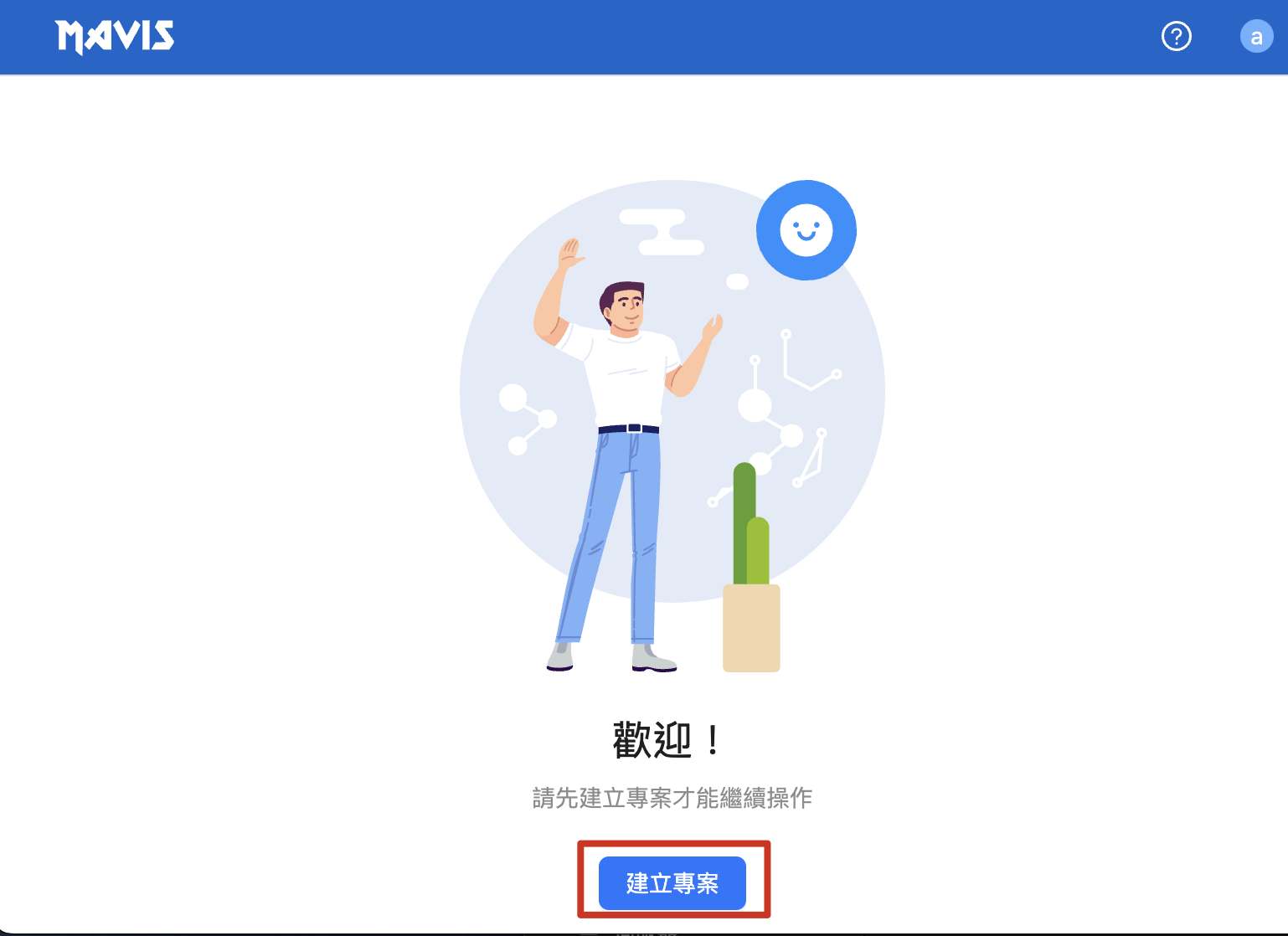

After logging in, click “Create Project”.
Enter a Project Name and click “Create” to create the project.
3. Add Devices and Configure Device Connections

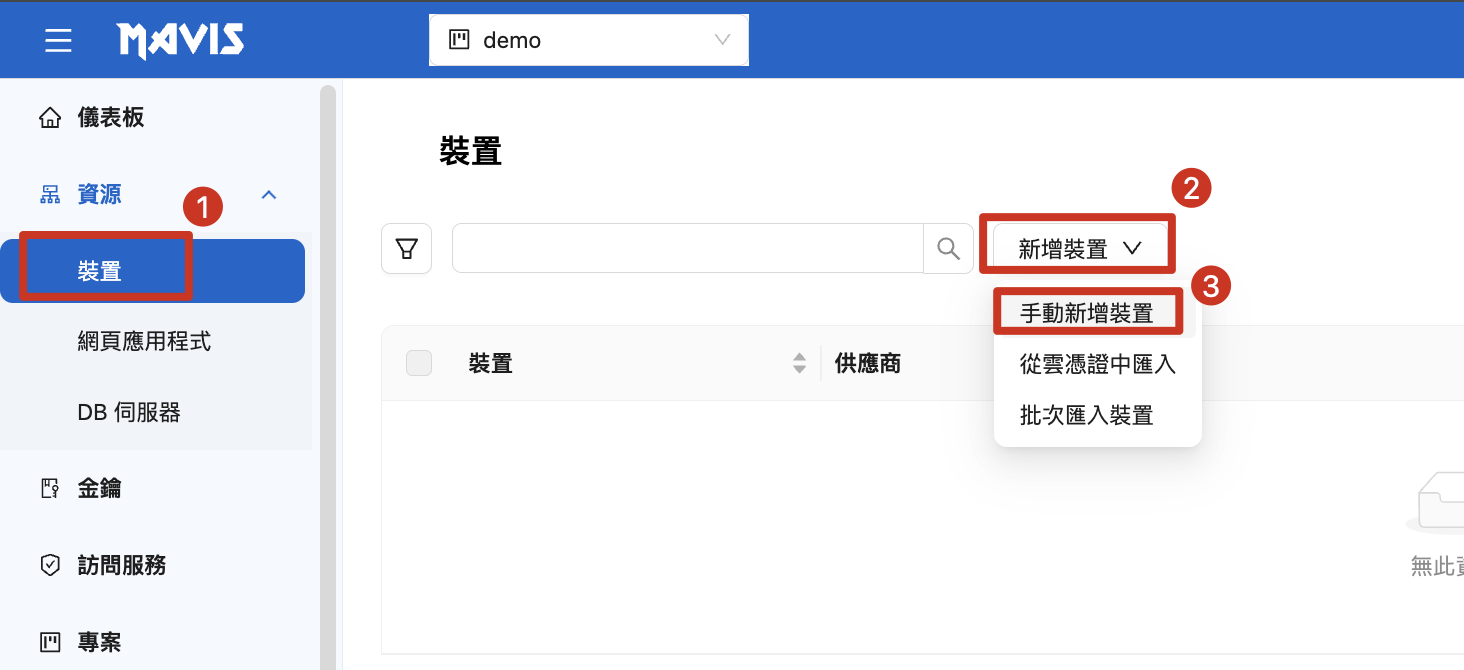

Go to the main menu “Devices”.
Click “Add Device”.
Click “Add Server Manually”.
| 1. 進入主選單「裝置」 2. 點擊「新增裝置」 3. 點擊「手動新增伺服器」 |

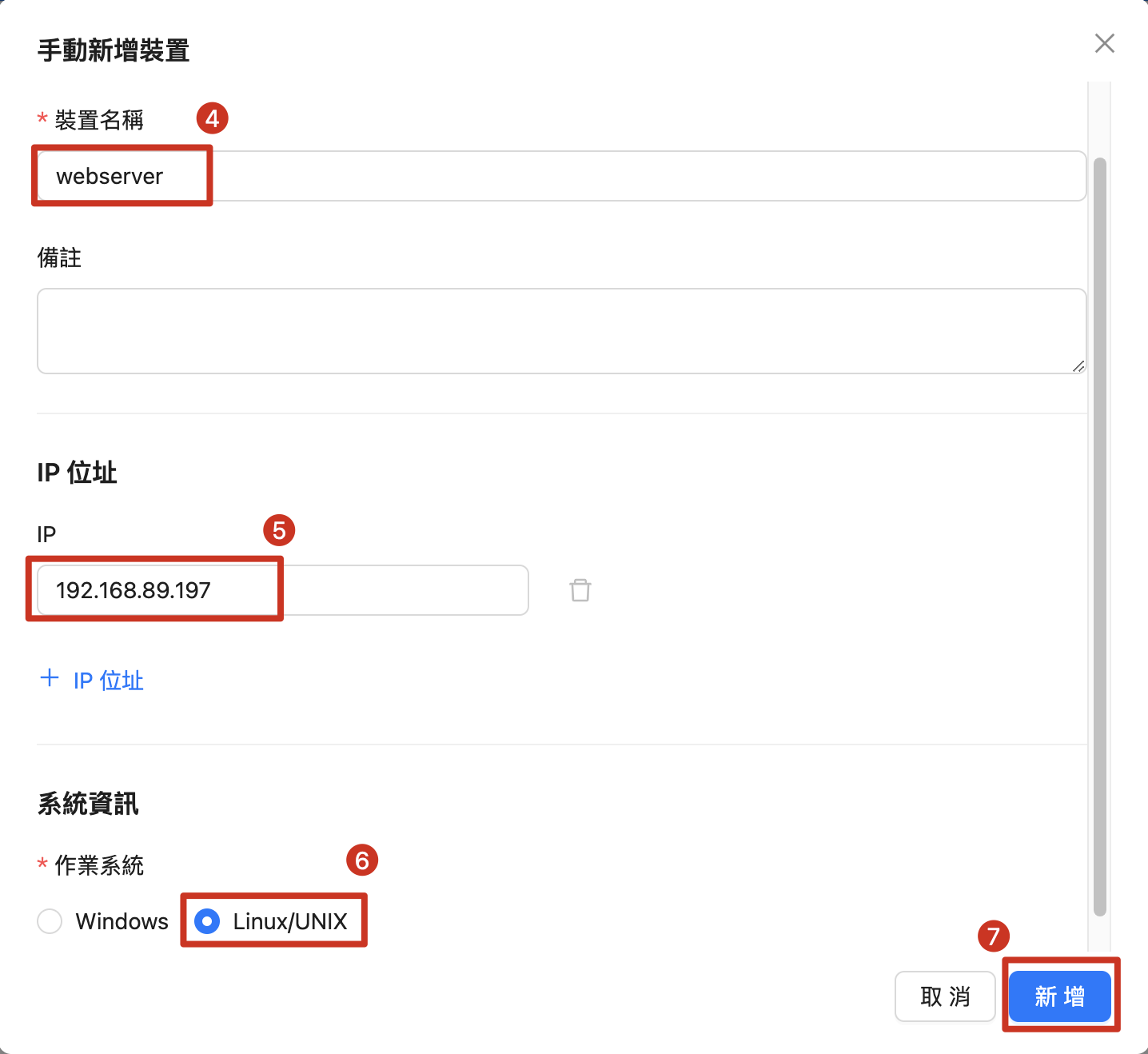

Enter a custom Server Name.
Enter the Server IP.
Click Server System Info.
Click “Add”.
| 4. 自定義輸入伺服器名稱 5. 輸入伺服器IP 6. 點選服務器 系統資訊 7. 點擊「新增」 |

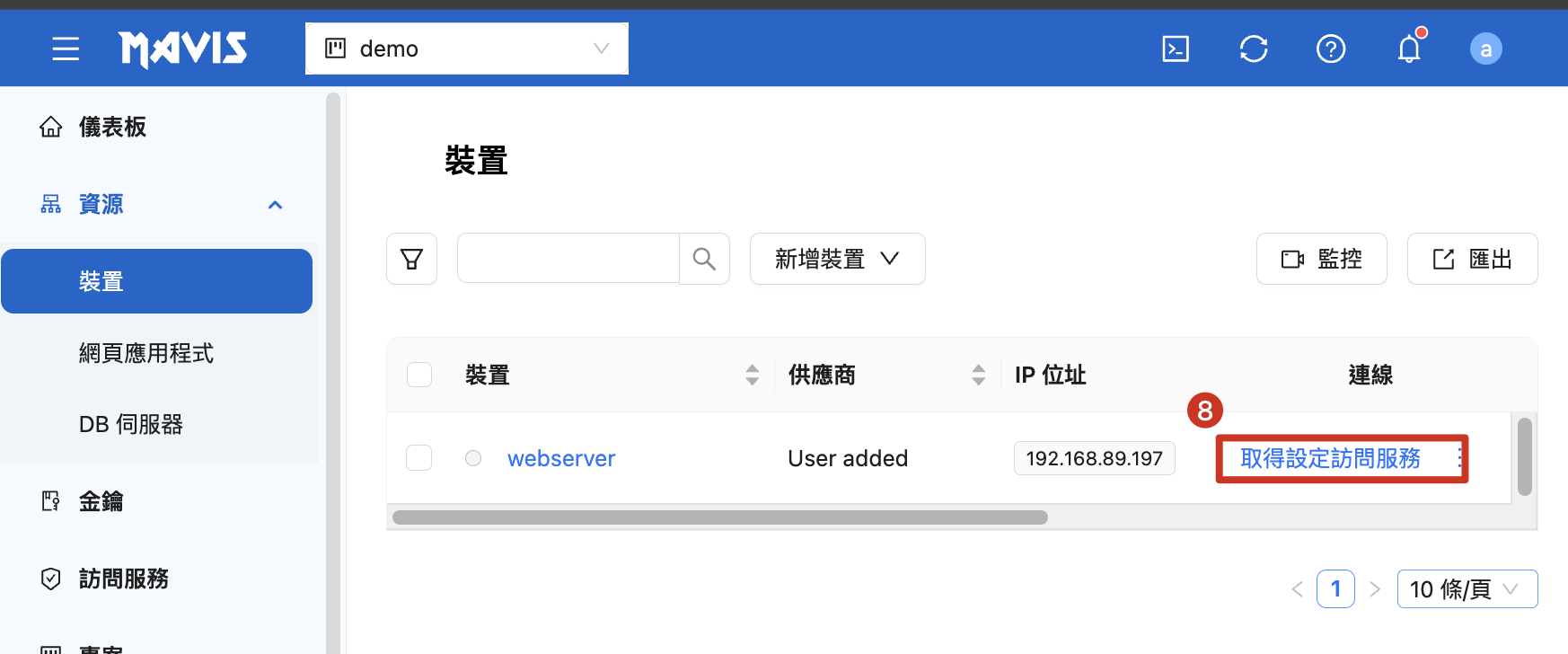

The device is successfully added. Click “Get Configuration Access Service”.
| 8. 裝置已成功建立, 點選「取得設定訪問服務」 |

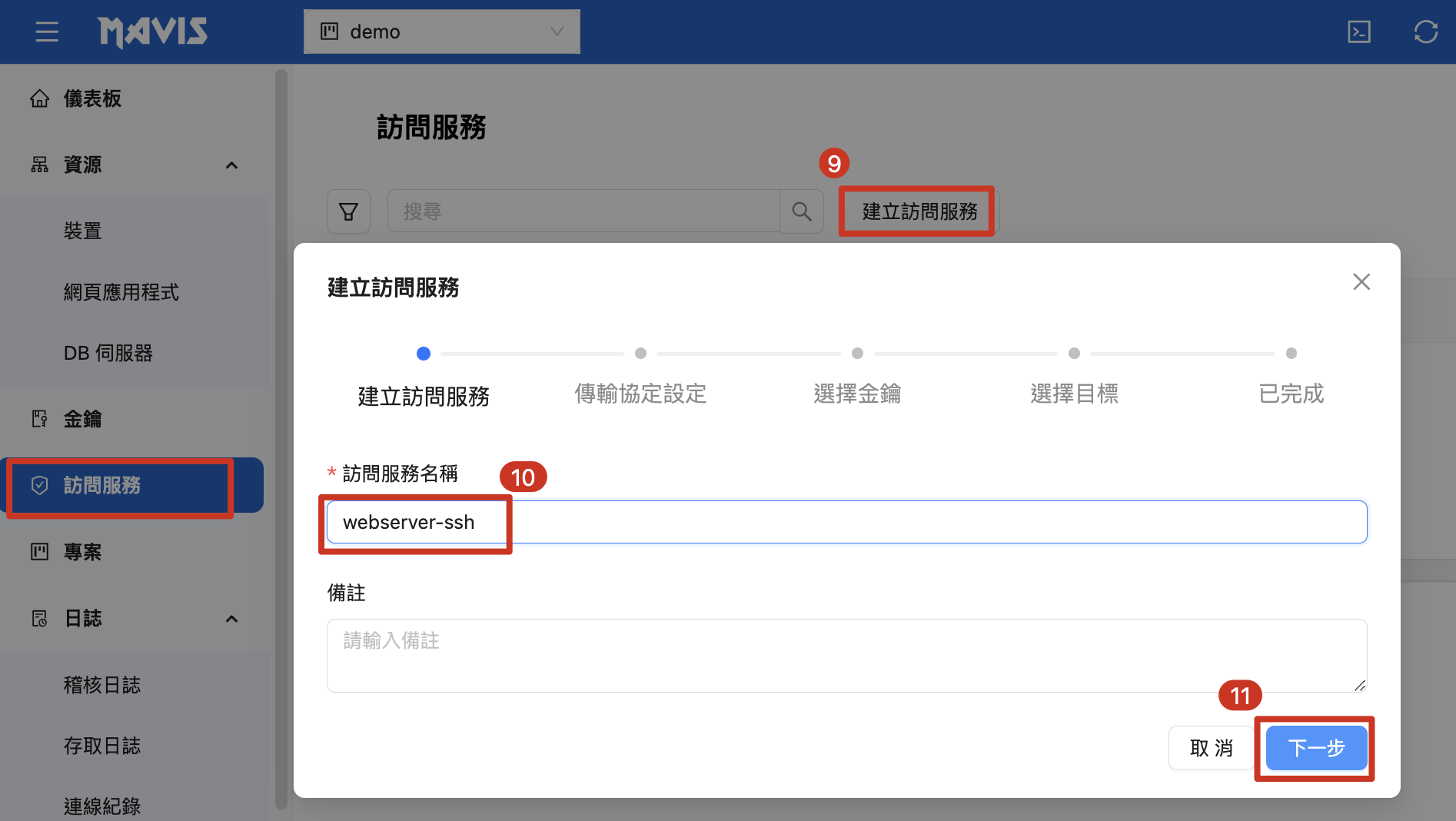

9. Go to the main menu “Access Services” and click “Create Access Service”.
10. Enter a custom Access Service Name.
11. Click “Next”.
| 9. 連接到主選單「訪問服務」, 點擊 「建立訪問服務」 10. 輸入自定義訪問服務名稱 11 點擊 「下一步」 |

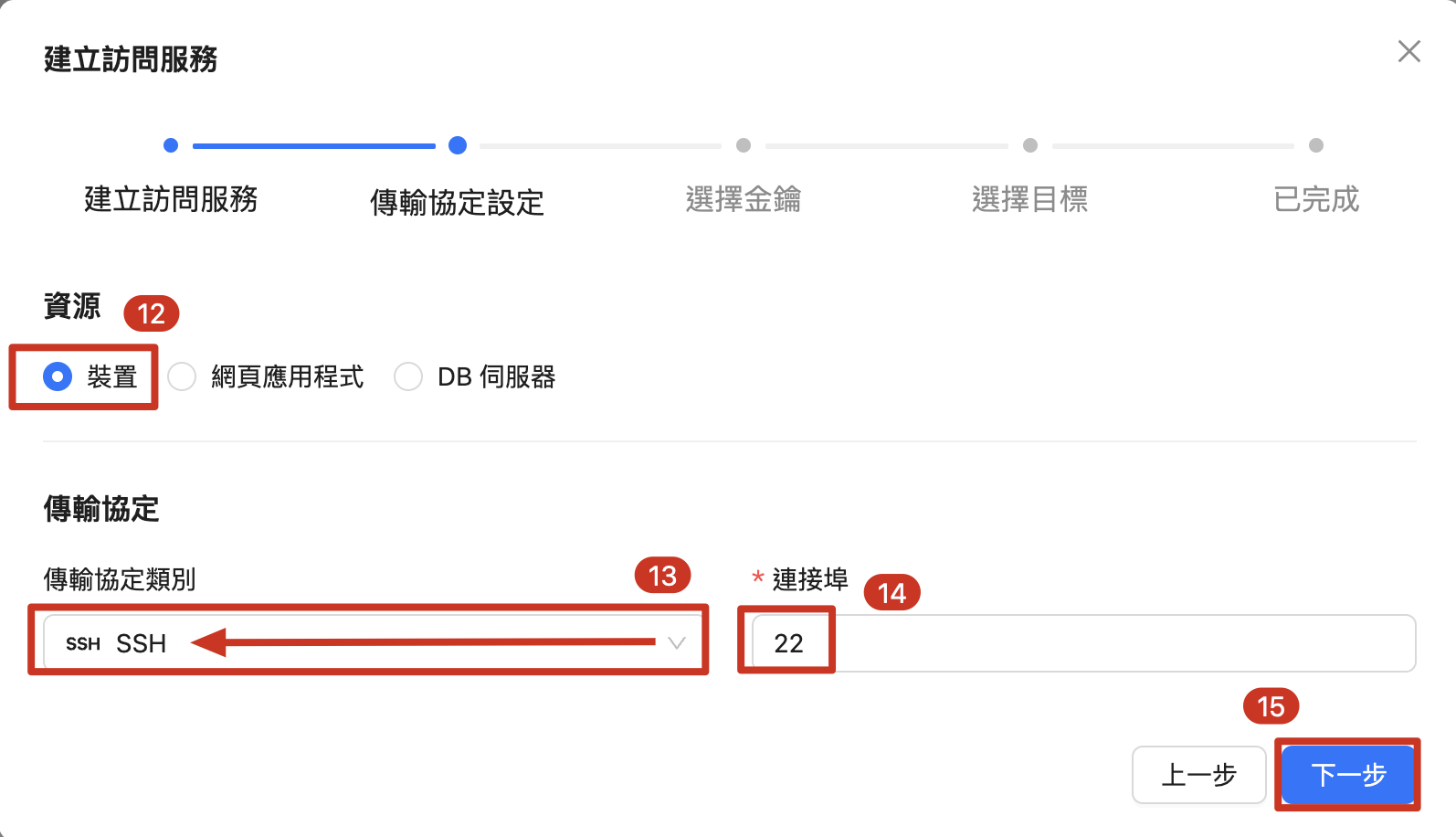

12. Under Resources, check “Device”.
13. Select SSH as the Protocol Type.
14. Enter the Port used for SSH communication with the server (default: 22).
15. Click “Next”.
| 12. 資源 勾選「裝置」 13. 傳輸協定類型 選擇「SSH」 14. 連接埠 輸入與伺服器 SSH 傳輸協定溝通的 Port,預設 22 15. 點擊 「下一步」 |

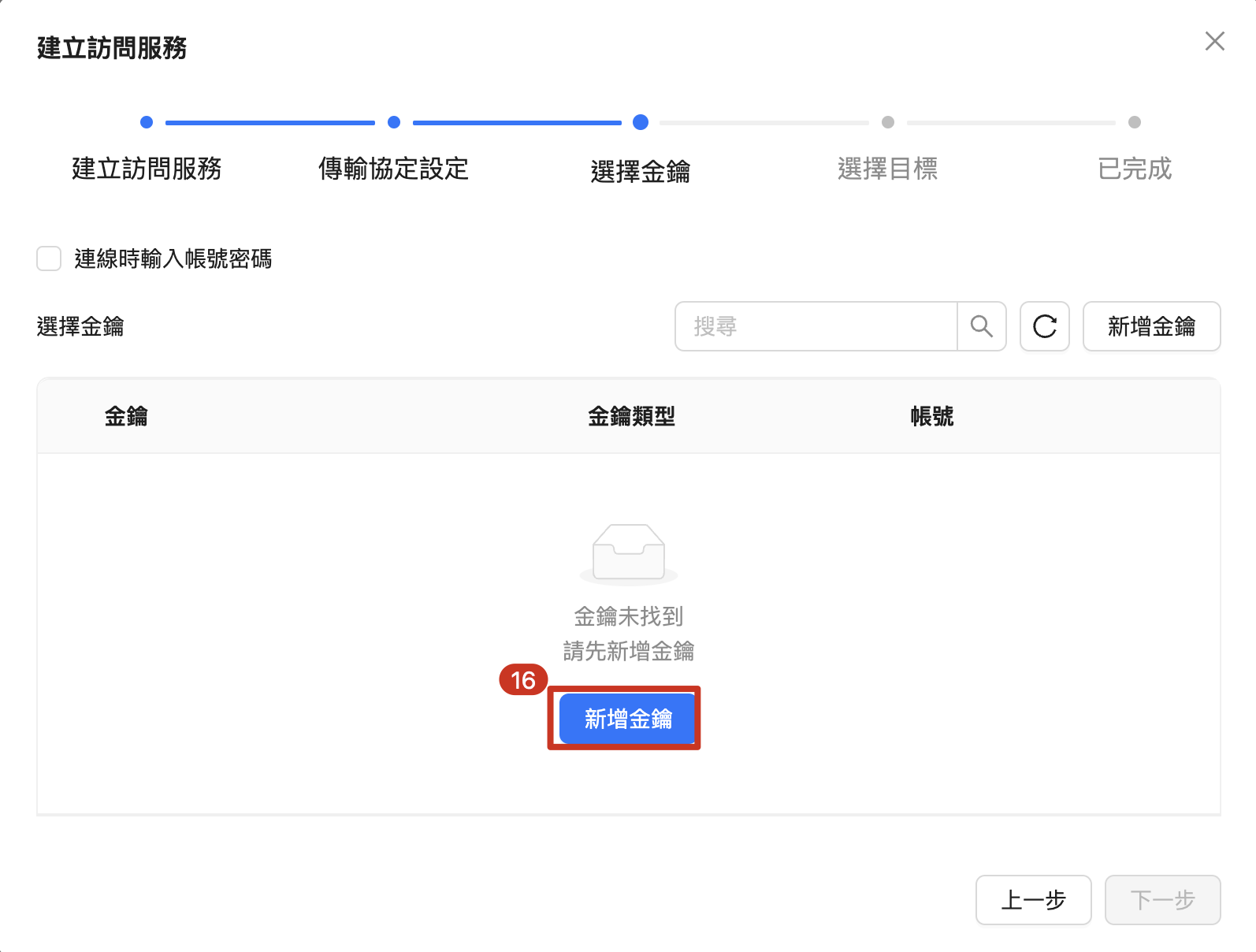

16. Click “Add Key”.
| 16. 點擊 「新增金鑰」 |

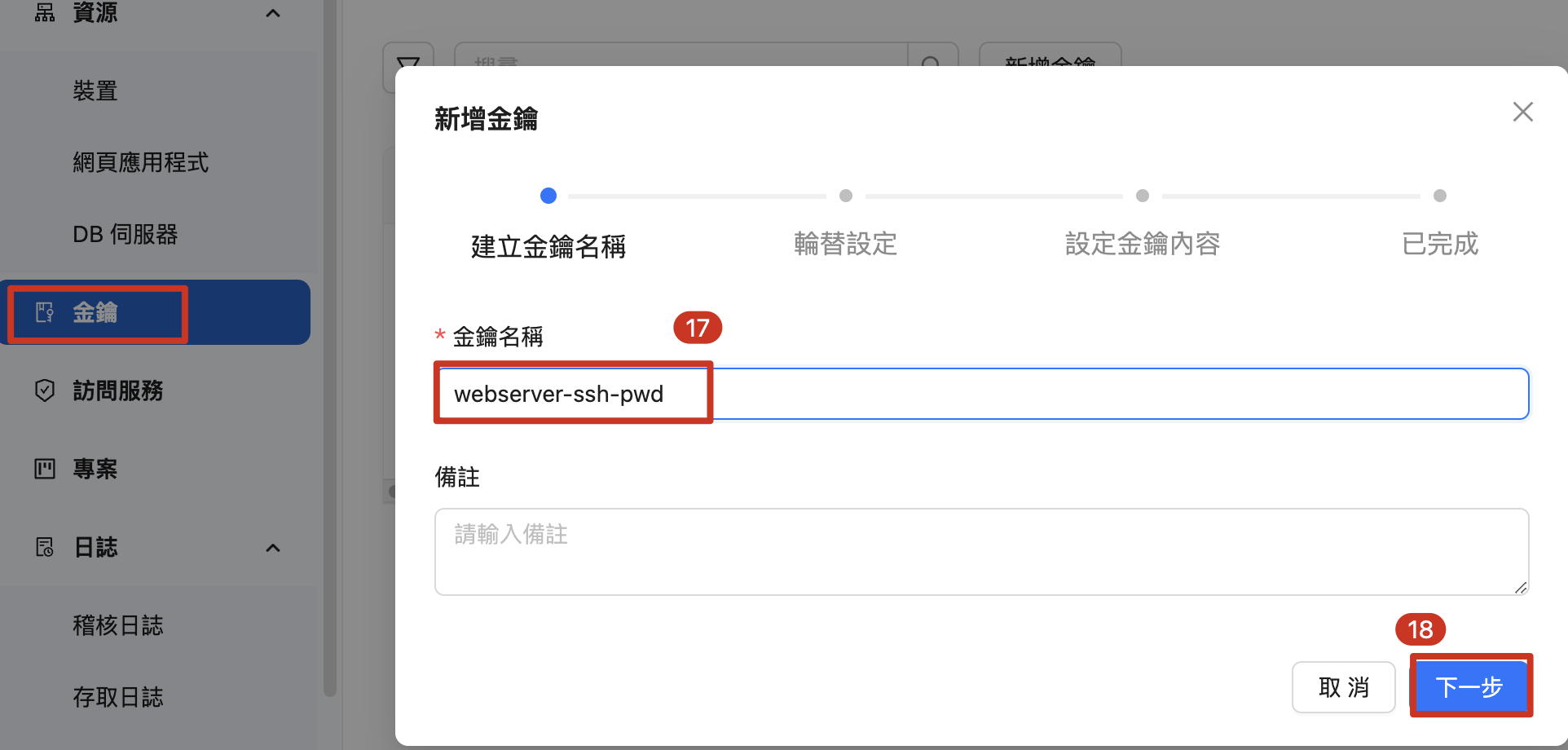

17. Enter a Key Name.
18. Click “Next”.
| 17. 連接到「新增金鑰」, 輸入 金鑰名稱 18. 點擊 「下一步」 |

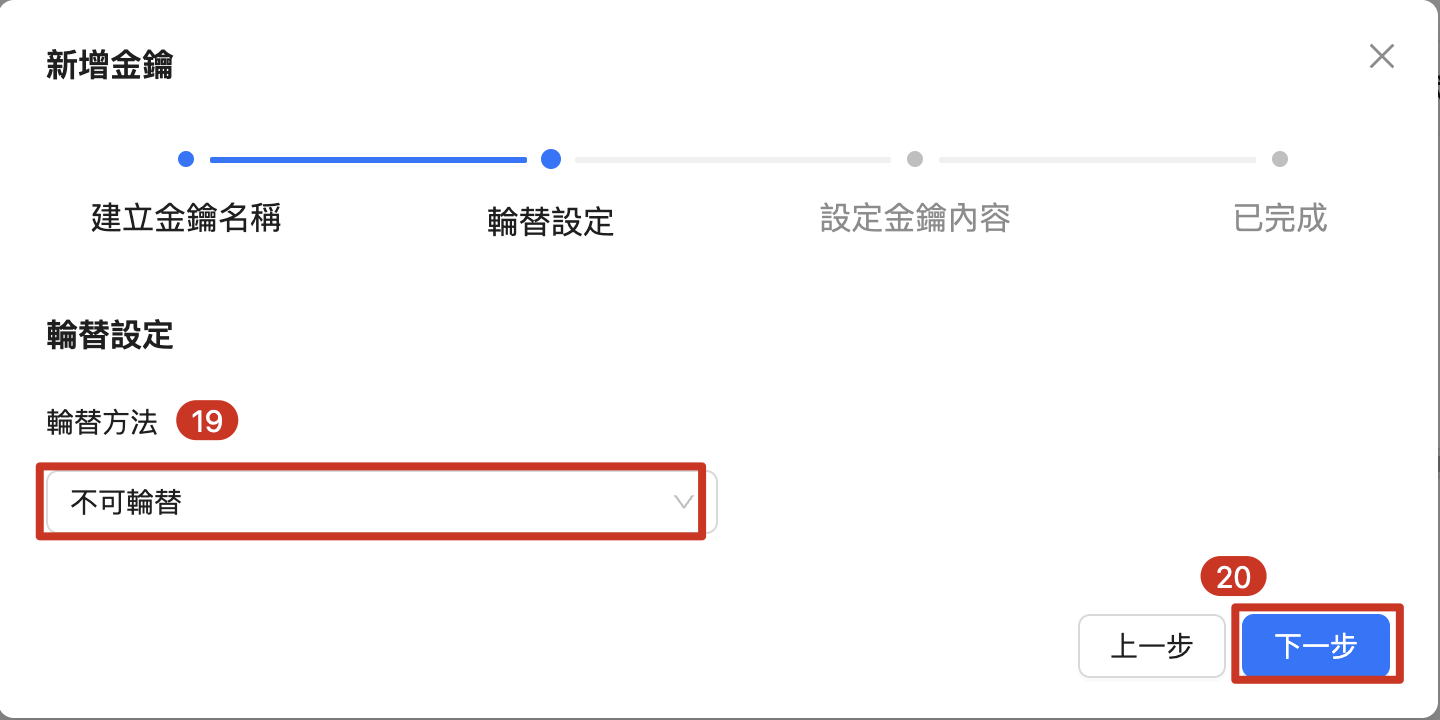

19. Rotation Mode: Default is “No Rotation”.
20. Click “Next”.
| 19. 輪替方式 預設「不可輪替」 20. 點擊 「下一步」 |
21. Choose Login with Password or SSH Key (this example uses password).
22. Select the Key Format (e.g., for SSH, RDP, SFTP, PostgreSQL, Web).
23. Enter the Login Username.
24. Enter the Login Password.
25. Click “Next”.
| 21. 勾選 登入密碼 或 SSH金鑰 ,這邊示範選擇密碼登入 22. 勾選金鑰格式 「帳號和密碼(例如):SSH、RDP、SFTP、PostgreSQL和Web」 23. 輸入登入帳號 24. 輸入登入密碼 25. 點擊 「下一步」 |
26. Key is successfully created. Click “Finish”.
| 26. 金鑰成功建立, 點擊 「完成」 |

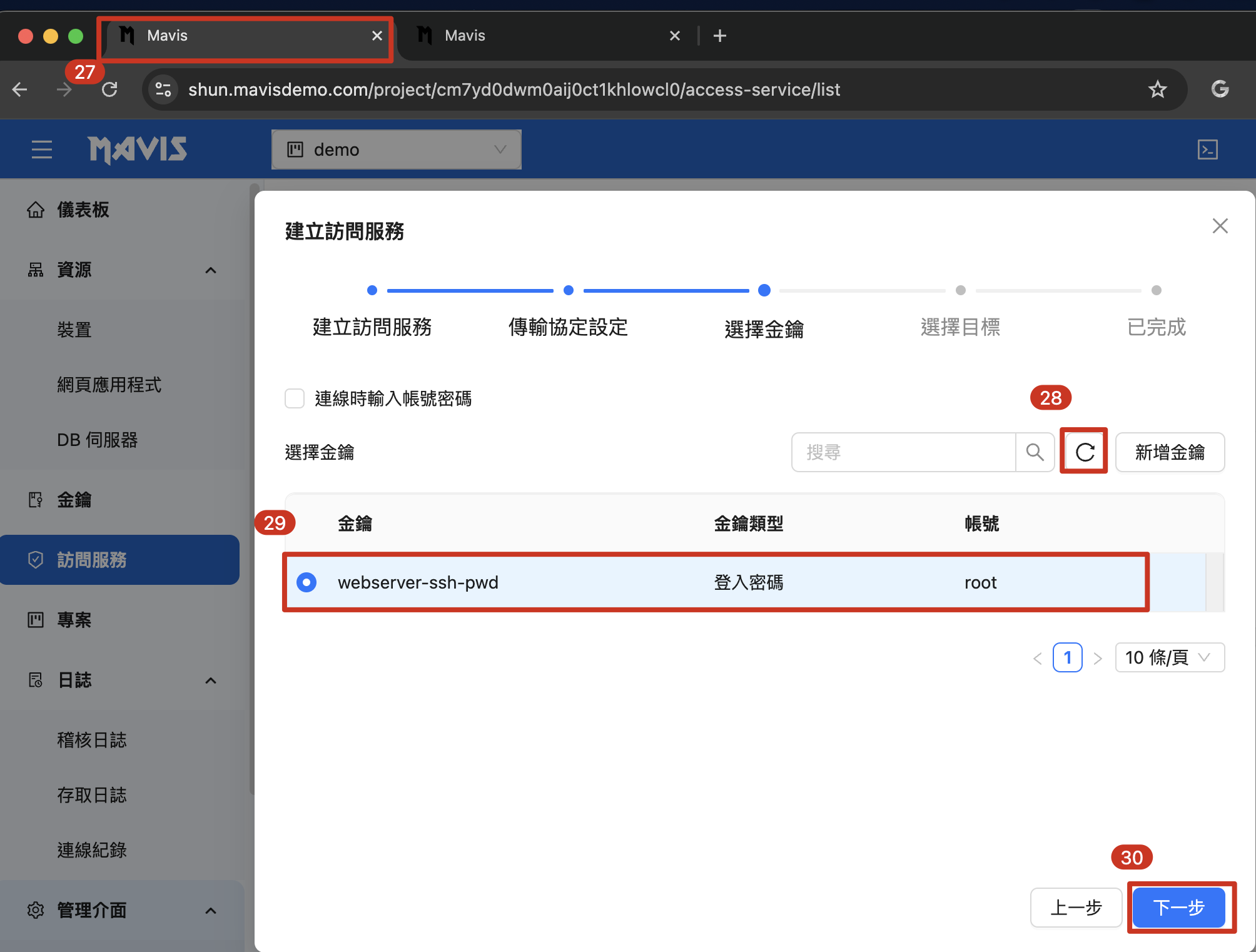

27. Return to the Create Access Service page.
28. Click the Refresh icon.
29. The newly created key will be automatically selected.
30. Click “Next”.
| 27. 回到剛剛「建立訪問服務 」頁面 28. 點擊 重新整理 圖示 29. 剛剛建立的金鑰 已經被勾選起來 30. 點擊 「下一步」 |

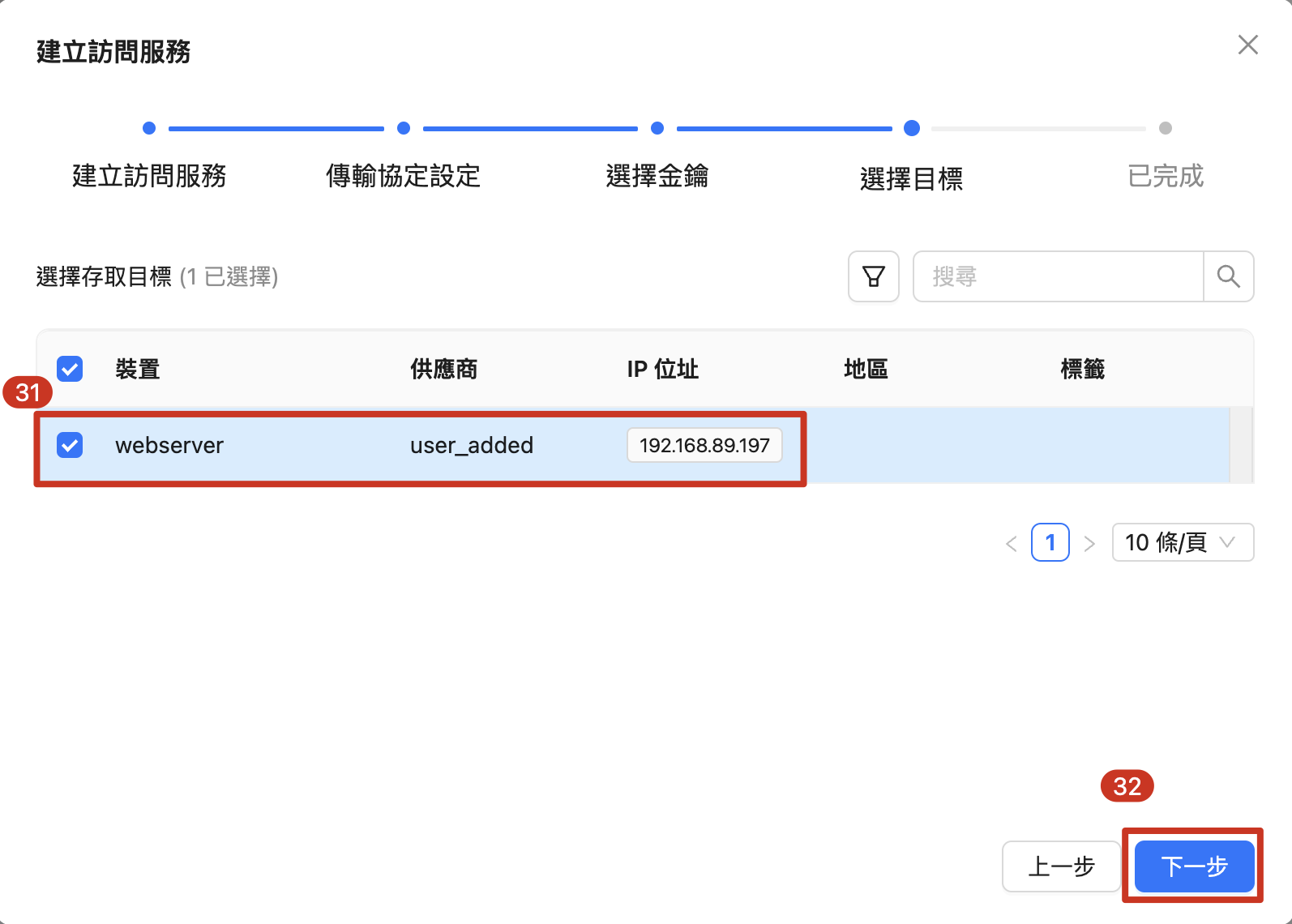

31. Select the device.
32. Click “Next”.
| 31. 選擇裝置 32. 點擊 「下一步」 |

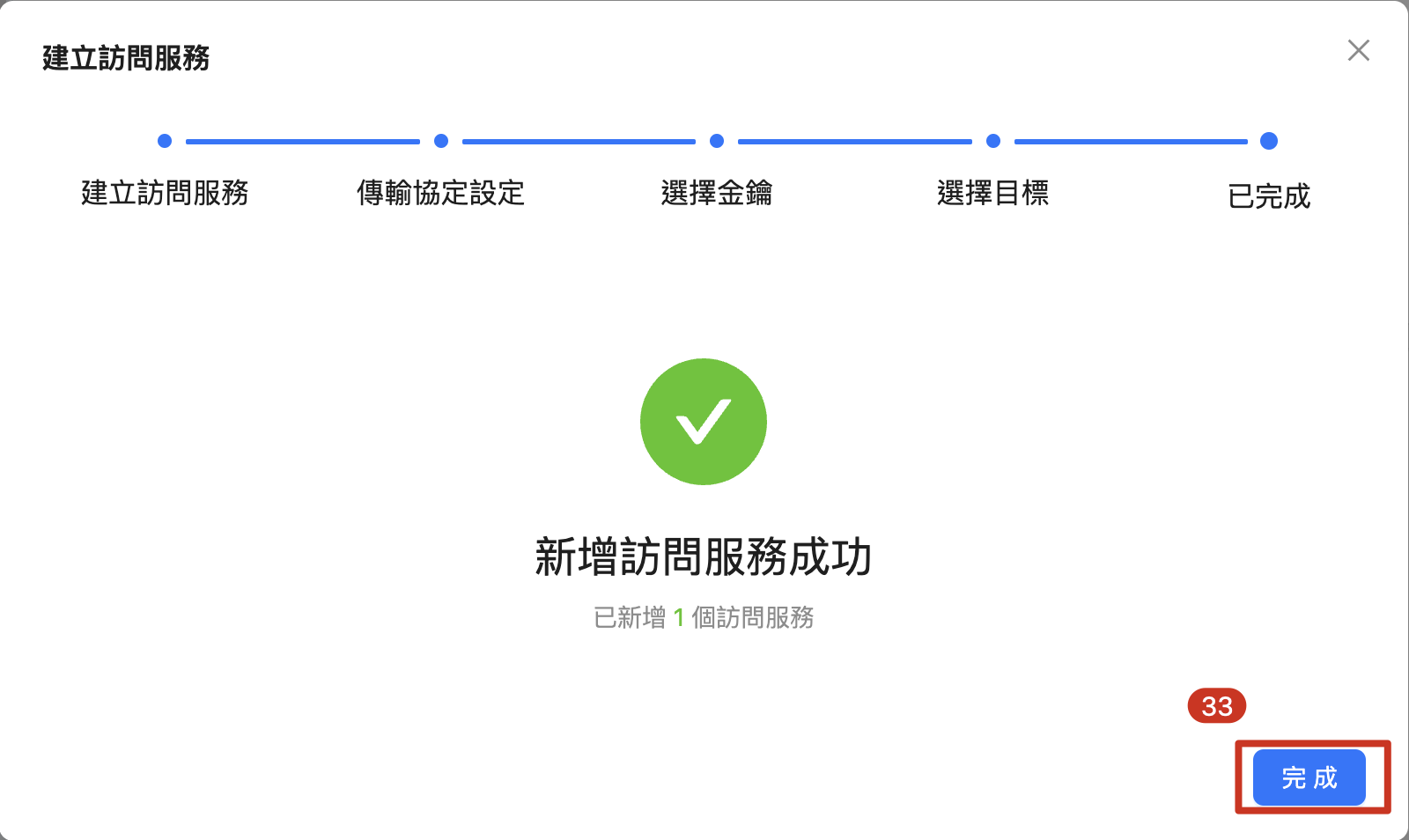

33. Click “Finish”. The access service is now successfully created.
| 32. 點擊 「完成」,訪問服務成功建立完成 |
4. Connection Operations and Log Playback
SSH Connection

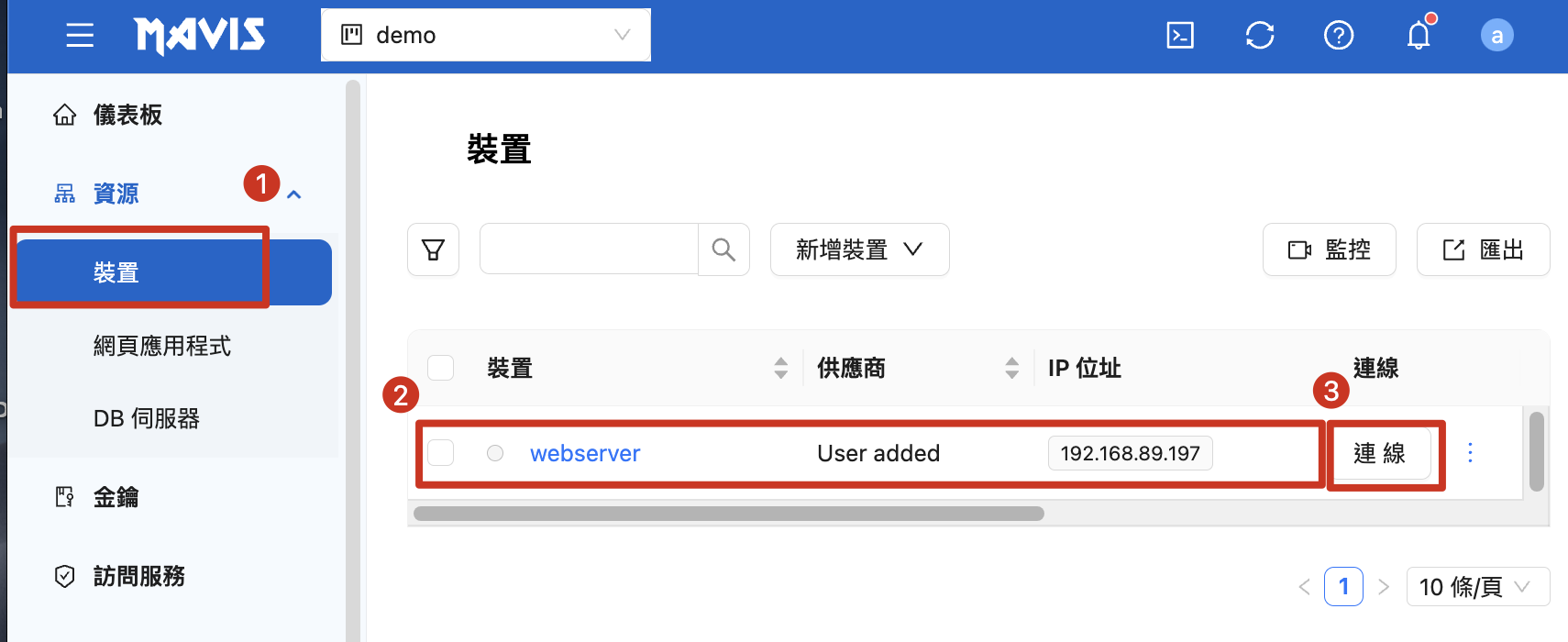

Go to Devices in the main menu.
Find the server you want to connect via SSH (connection status should be Connected).
Click Connect.
| 1. 主選單「裝置」 2. 找到你要透過 SSH 連線的伺服器,連線狀態已經變成「連線」 3. 點擊「連線」 |

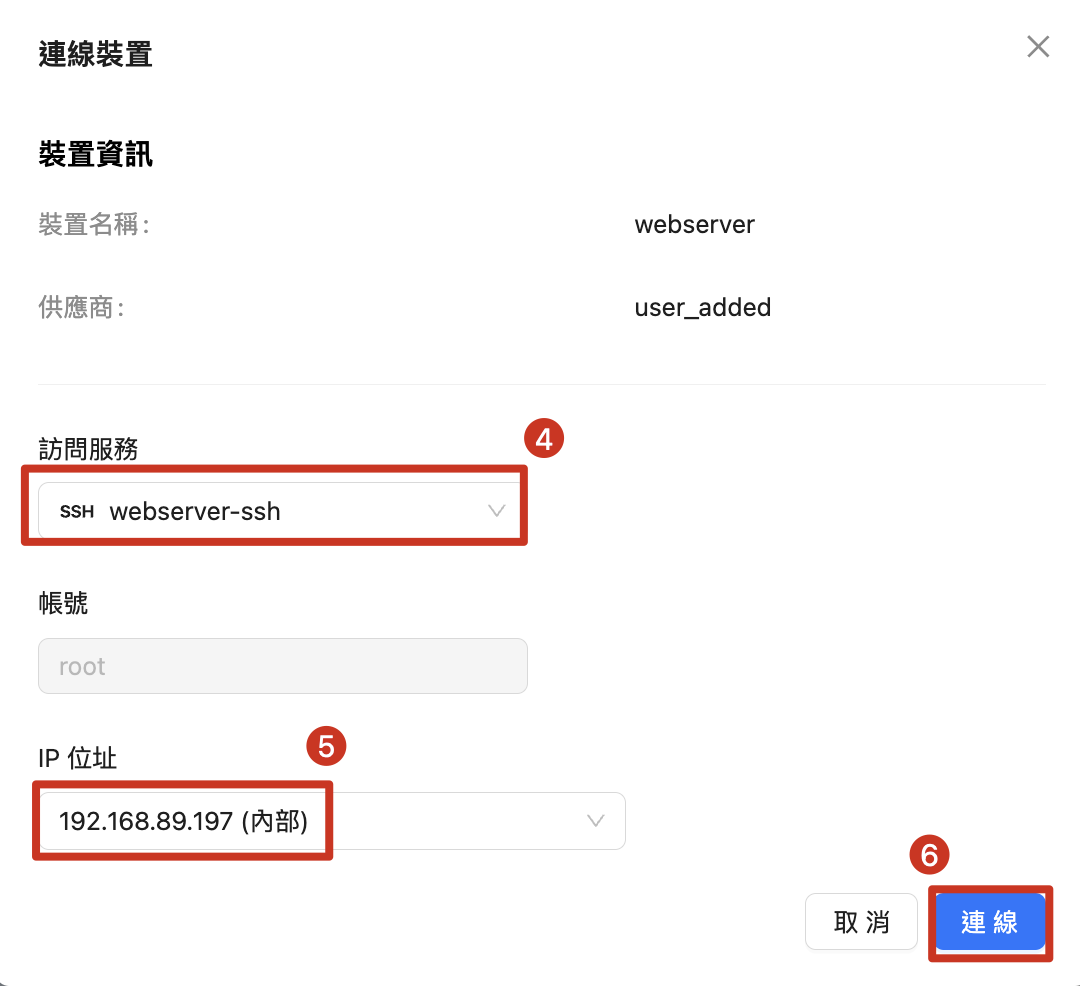

Select the access service (use the default if only one is set).
Select the server connection IP (use the default if only one IP).
Click Connect.
| 4. 選擇訪問服務,如果只有設定一組,使用預設 5. 選擇伺服器連線 IP,如果只有伺服器只有一組 IP,使用預設 6. 點擊「連線」 |
Once connected, perform commands on the server and close the connection when done.
| 成功 SSH 連線到伺服器,執行指令操作後關閉連線 |
View SSH Session Video Logs

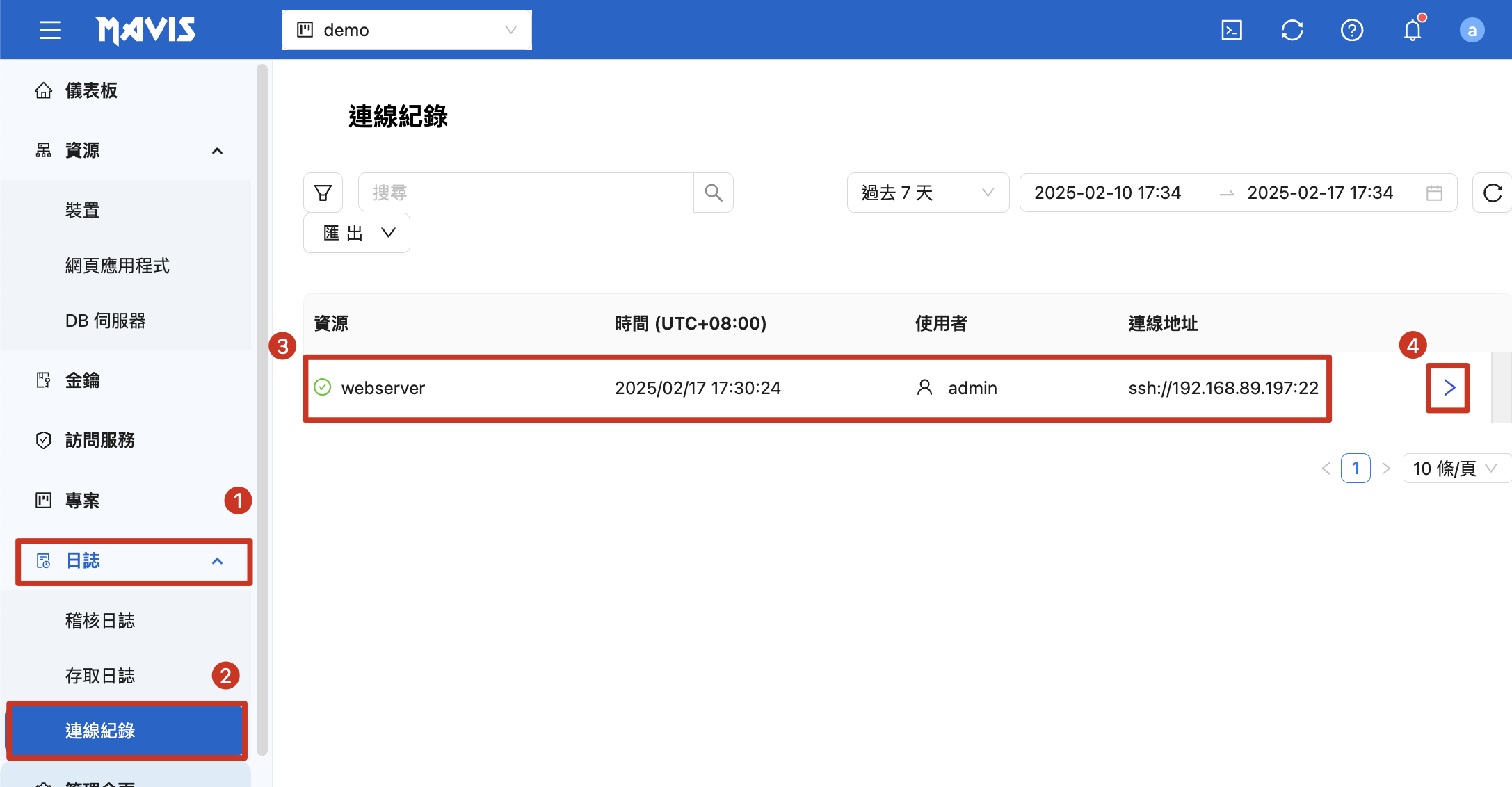

Go to Logs in the main menu.
Click Connection Records.
Select the SSH connection record for the server.
Click >.
| 1. 選擇主選單「日誌」 2. 點擊「連線紀錄」 3. 選擇伺服器該筆 SSH 連線紀錄 4. 點擊「 > 」按鈕 |
Enter the video player.
Click Play to view all user operations on the server.
| 5 進入 影片 6 點擊「播放」 ,影片可清楚記錄使用者在伺服器上的所有操作行為! |
5. Add Users
Users must have an Administrator role to manage users via the Admin Interface.

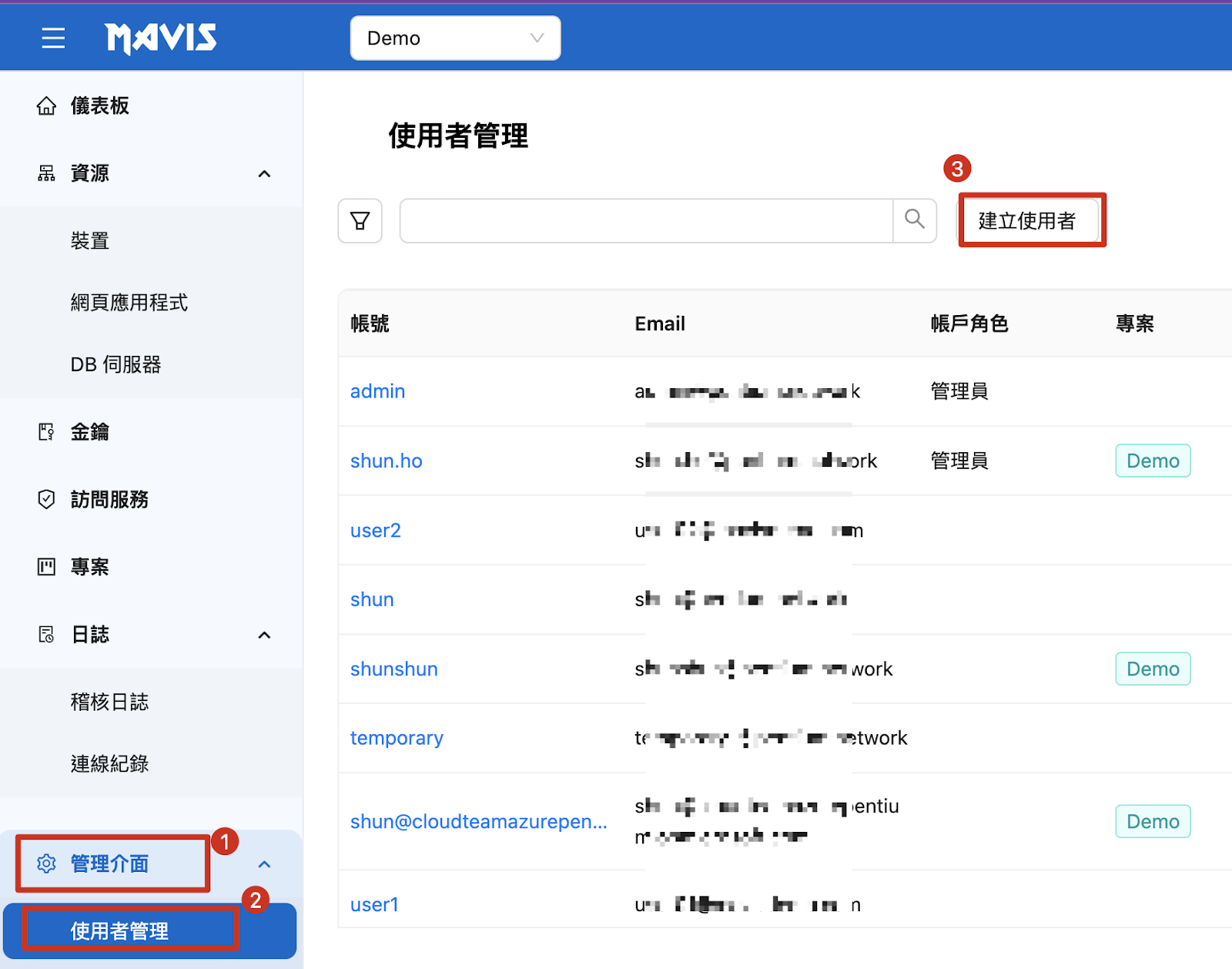

Go to Admin Interface.
Click User Management.
Click Create User.

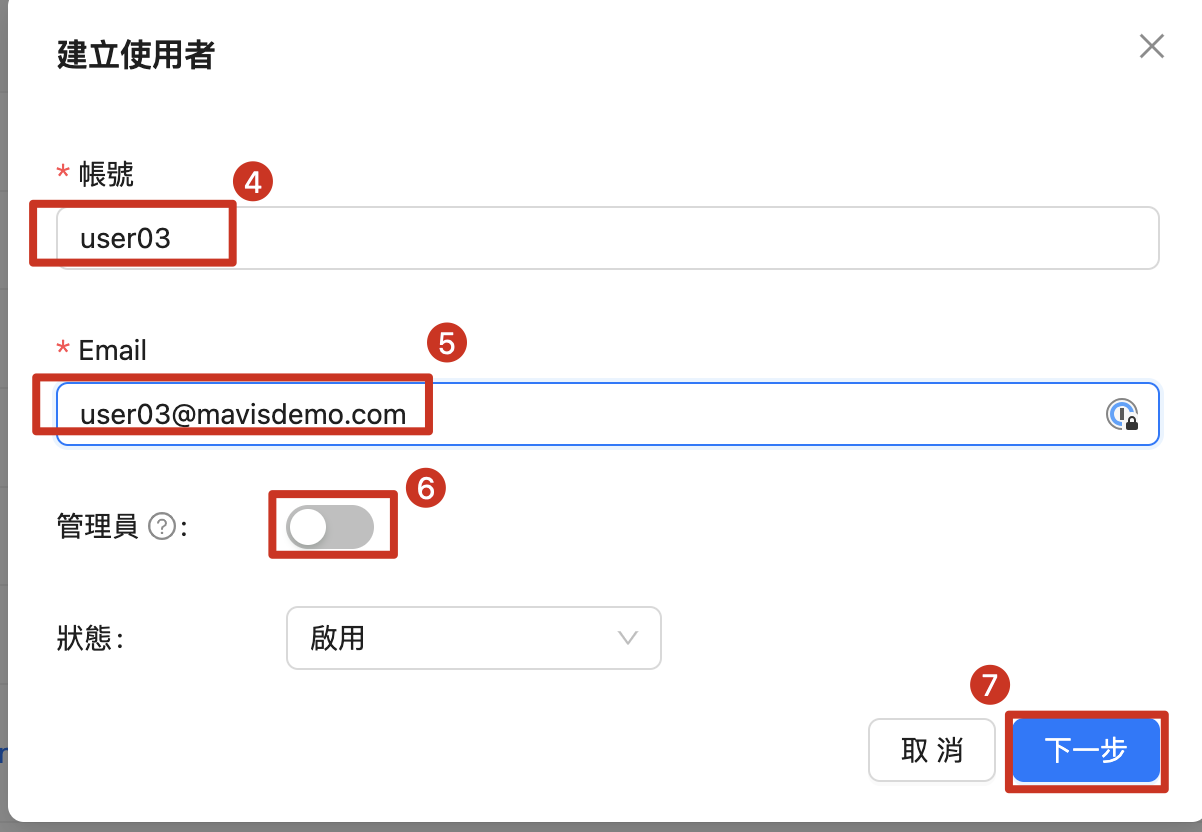

Enter the Username.
Enter the Email.
Choose whether to assign Administrator privileges (this example does not assign admin).
Click Next.
| 4. 輸入 帳號名稱 5. 輸入 Email 6. 按需求是否給予此帳號 管理員 權限 (此範例無給予管理員權限) 7. 點擊 「下一步」 |

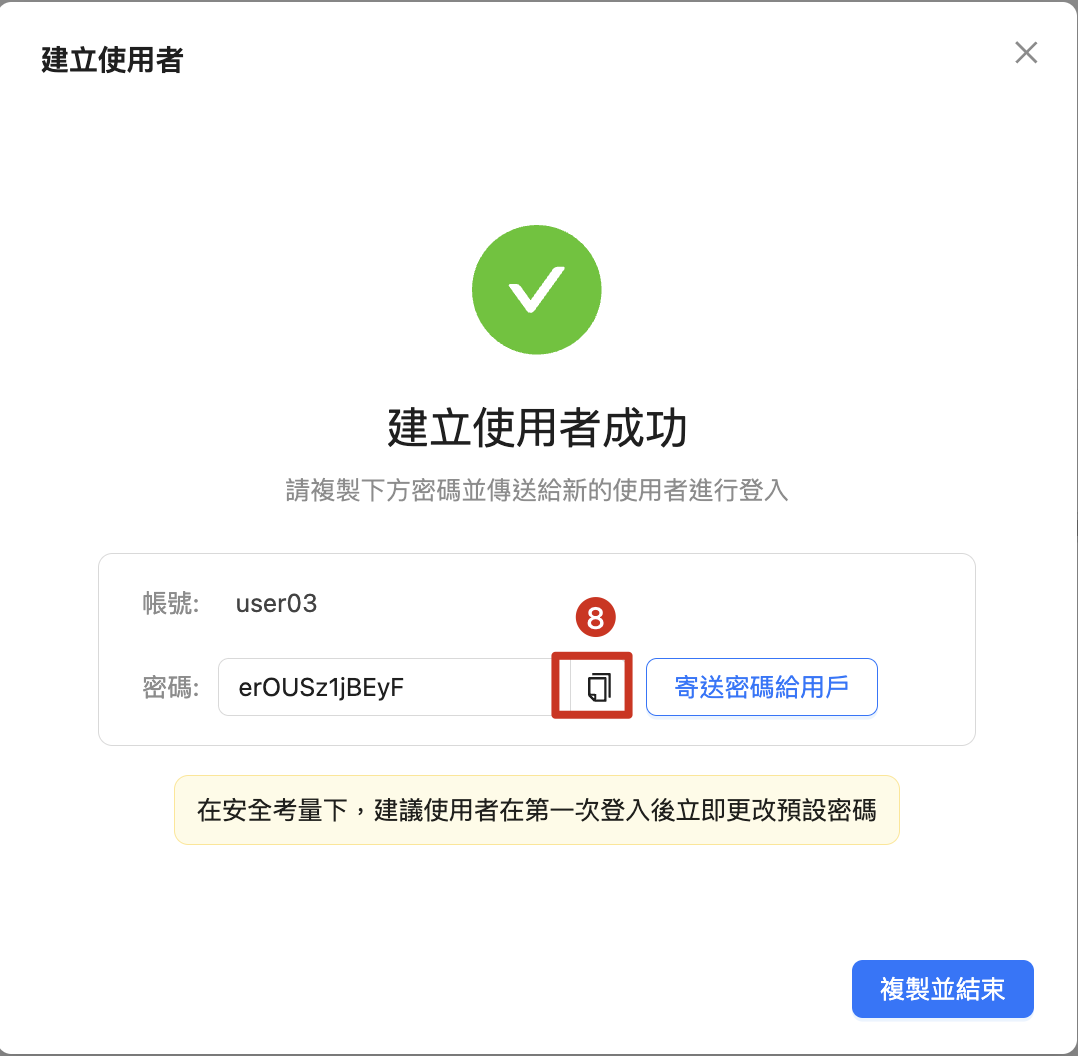

Share the one-time generated password with the user.
Copy the password and finish.
Note: To send the password via email, configure Email Service Settings first under Admin Interface → System Management → Email Service Settings.
| 8. 將一次性產生的密碼,傳給使用者 9. 複製密碼後,結束 PS:如果要使用 「寄送密碼給用戶」, 需先到「管理介面」=>「系統管理」 =>「郵件服務設定」 設定 |
6. Permission Management
Assign Default Project Manager Role

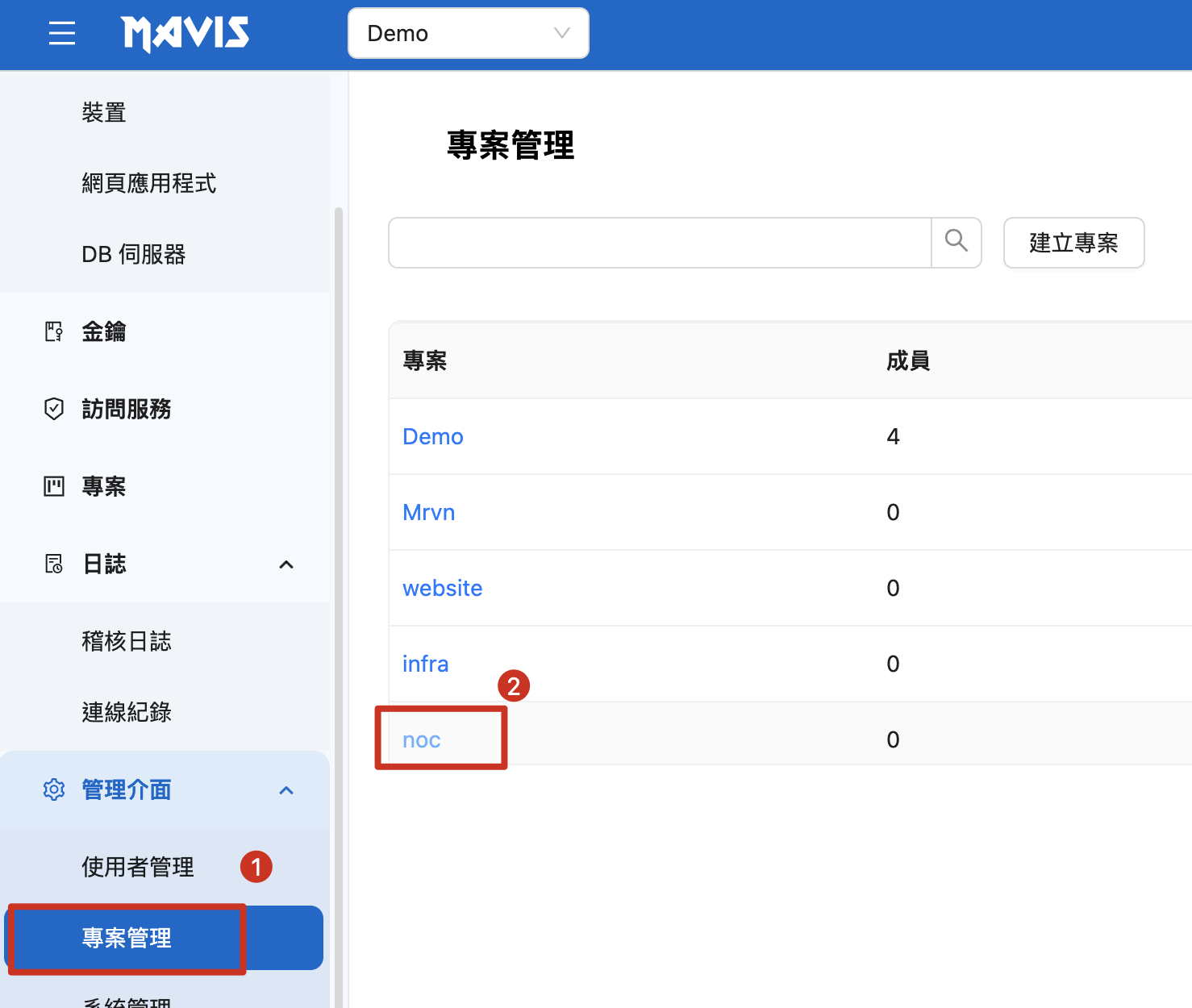

Go to Admin Interface → Manage Projects.
Select the project to assign the manager role.

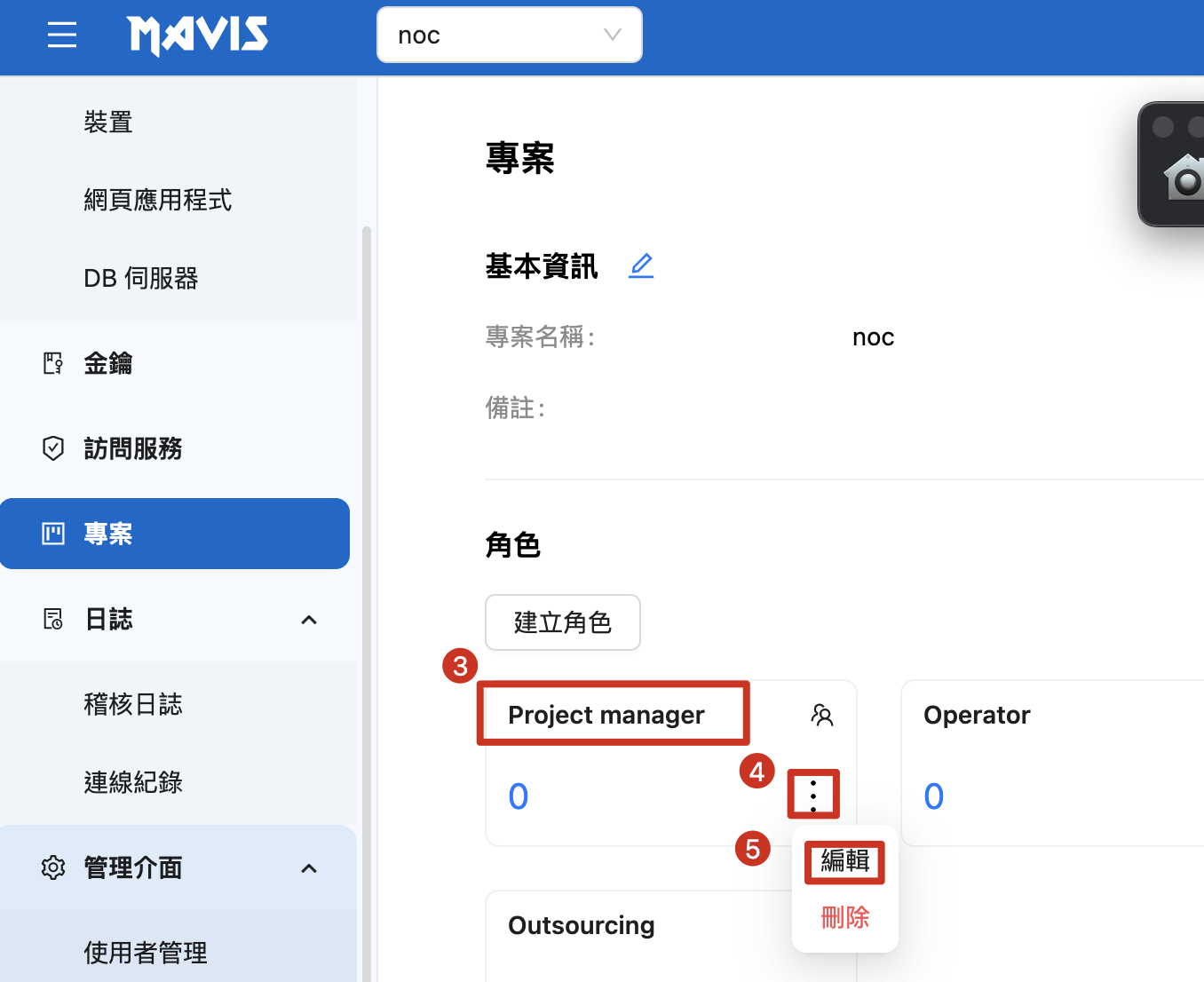

Choose Role → Project Manager.
Click the Edit icon.
Click Edit Role.
| 3. 選擇 角色 → Project manager 4. 點擊 編輯符號 5. 點擊 編輯角色 |

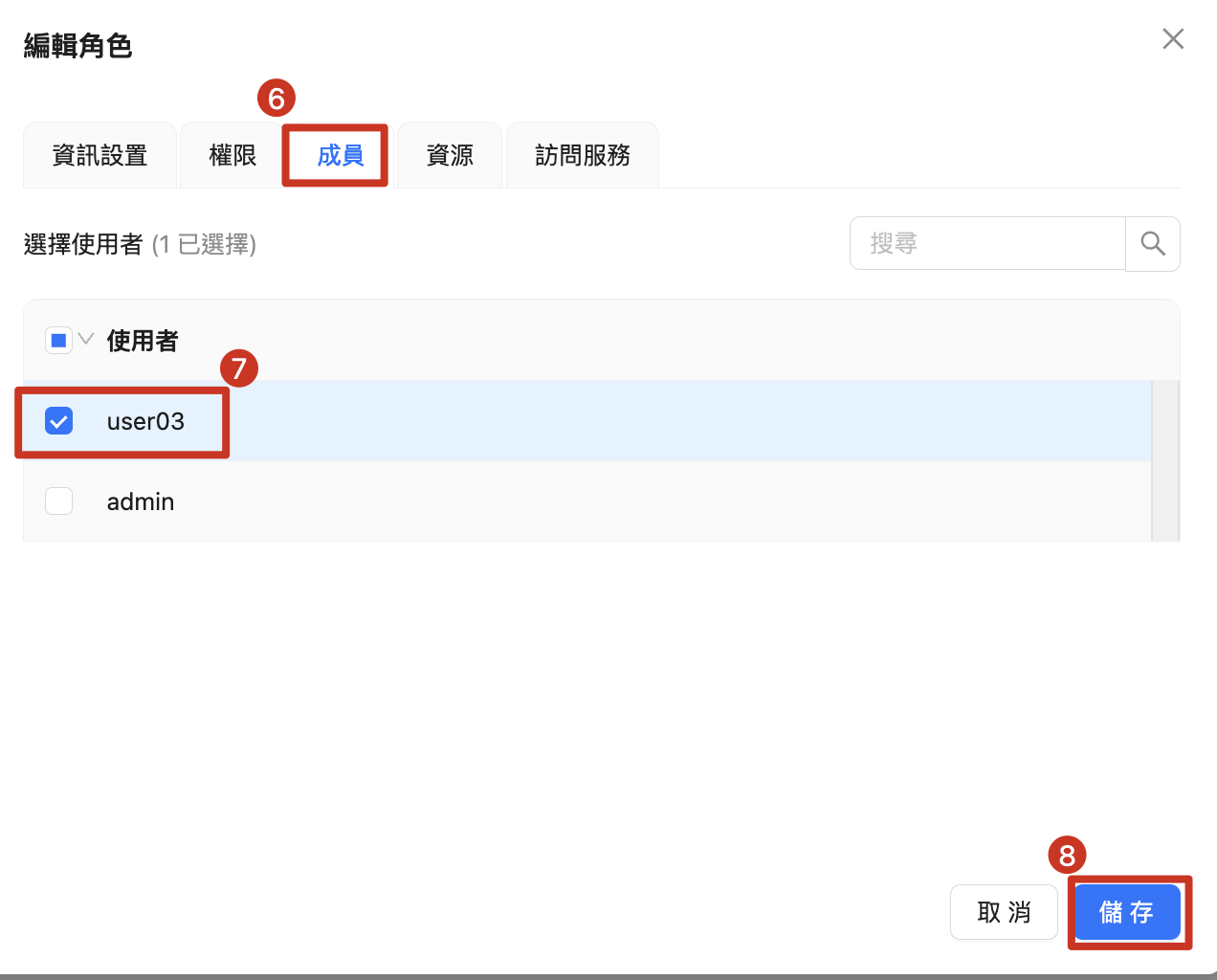

Select members.
Check the User Account.
Click Save.
| 6. 選擇 成員 7. 勾選 使用者帳號 8. 點擊 儲存 |

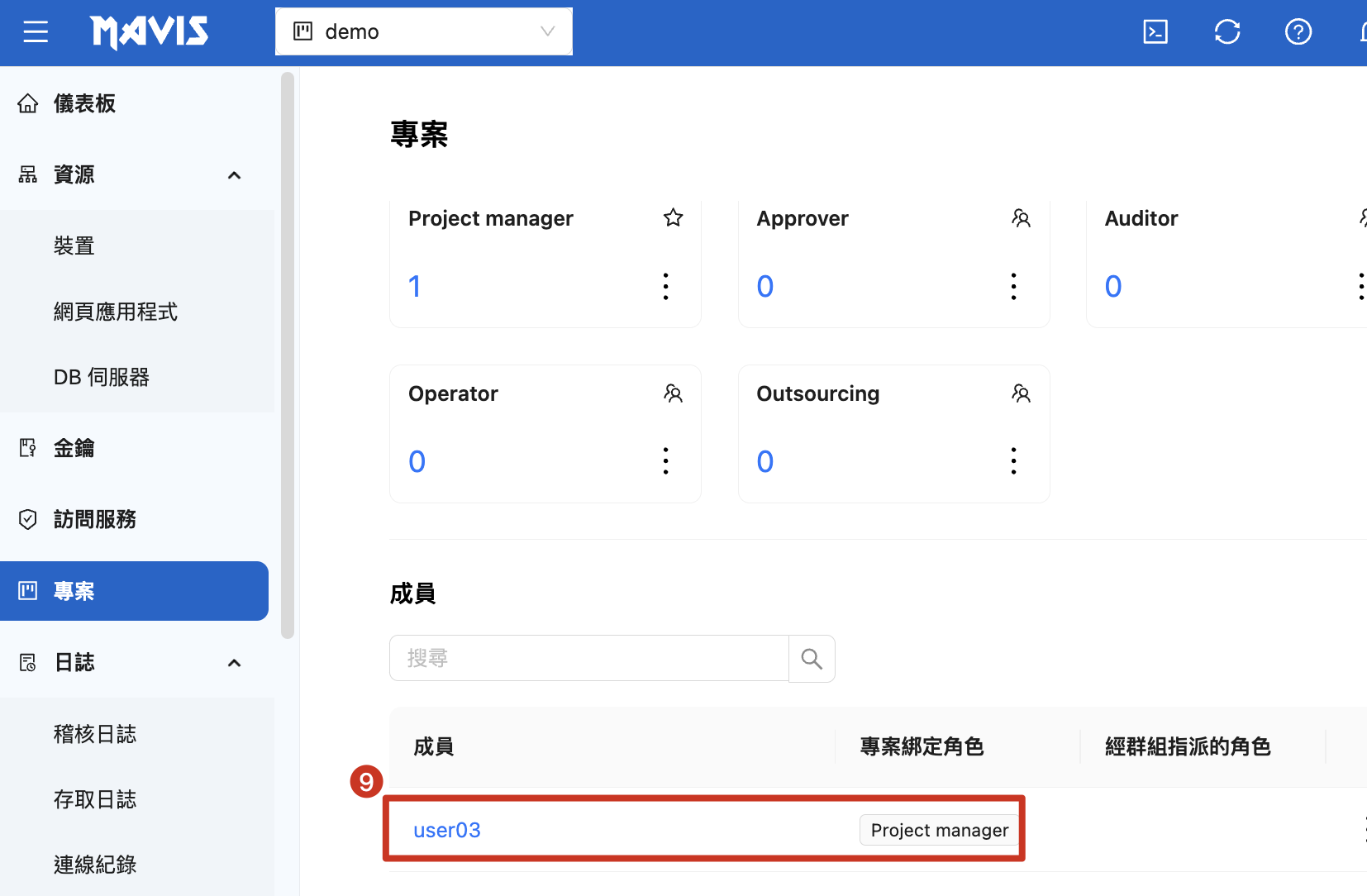

Project manager role successfully assigned.
| 9. 成功將專案管理指派給該成員 |
Custom Roles (Example: only device connection permission for temporary accounts)

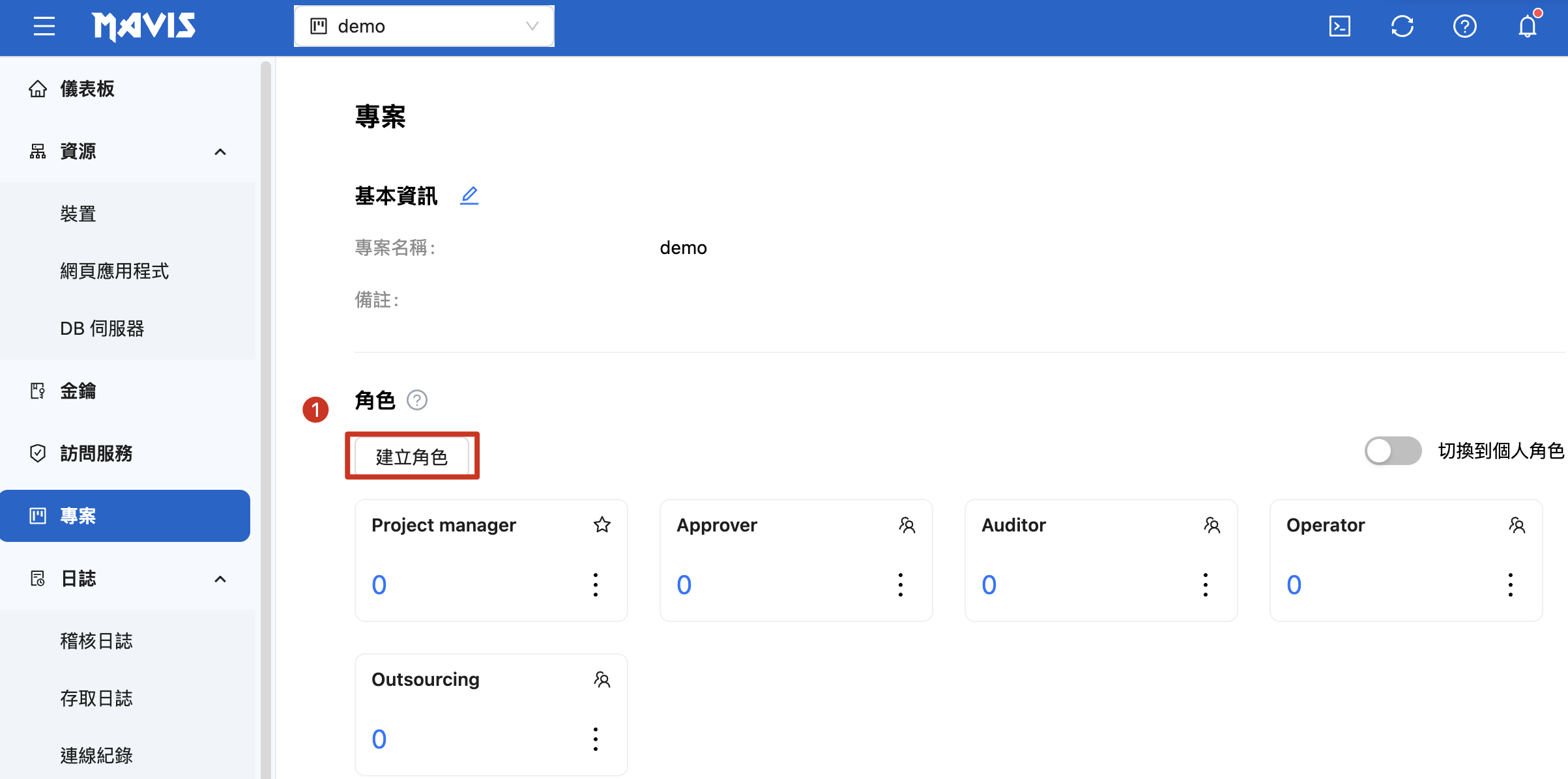

Click Create Role.
| 1. 點選 「建立角色」 |

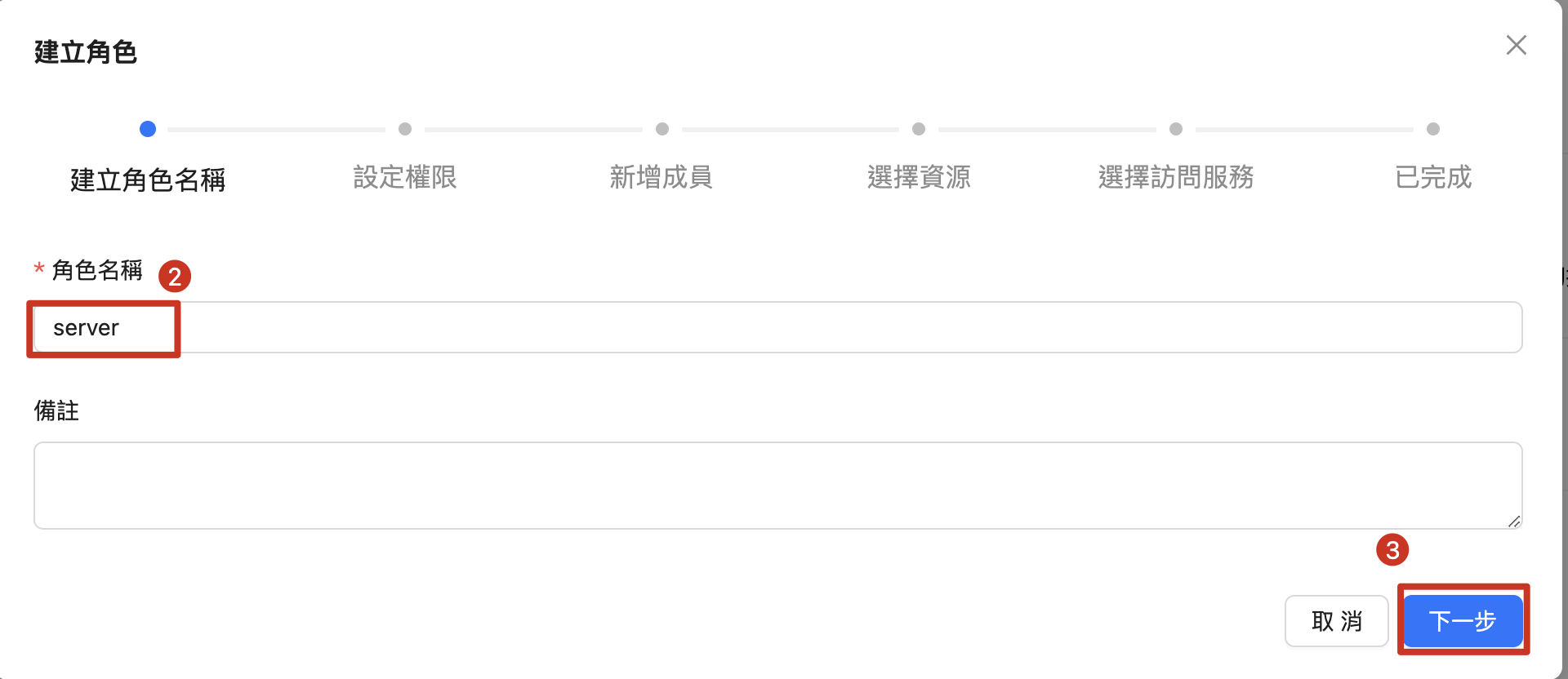

Enter a Role Name.
Click Next.
| 2. 角色名稱:輸入自定義名稱 3. 點擊 「下一步」 |

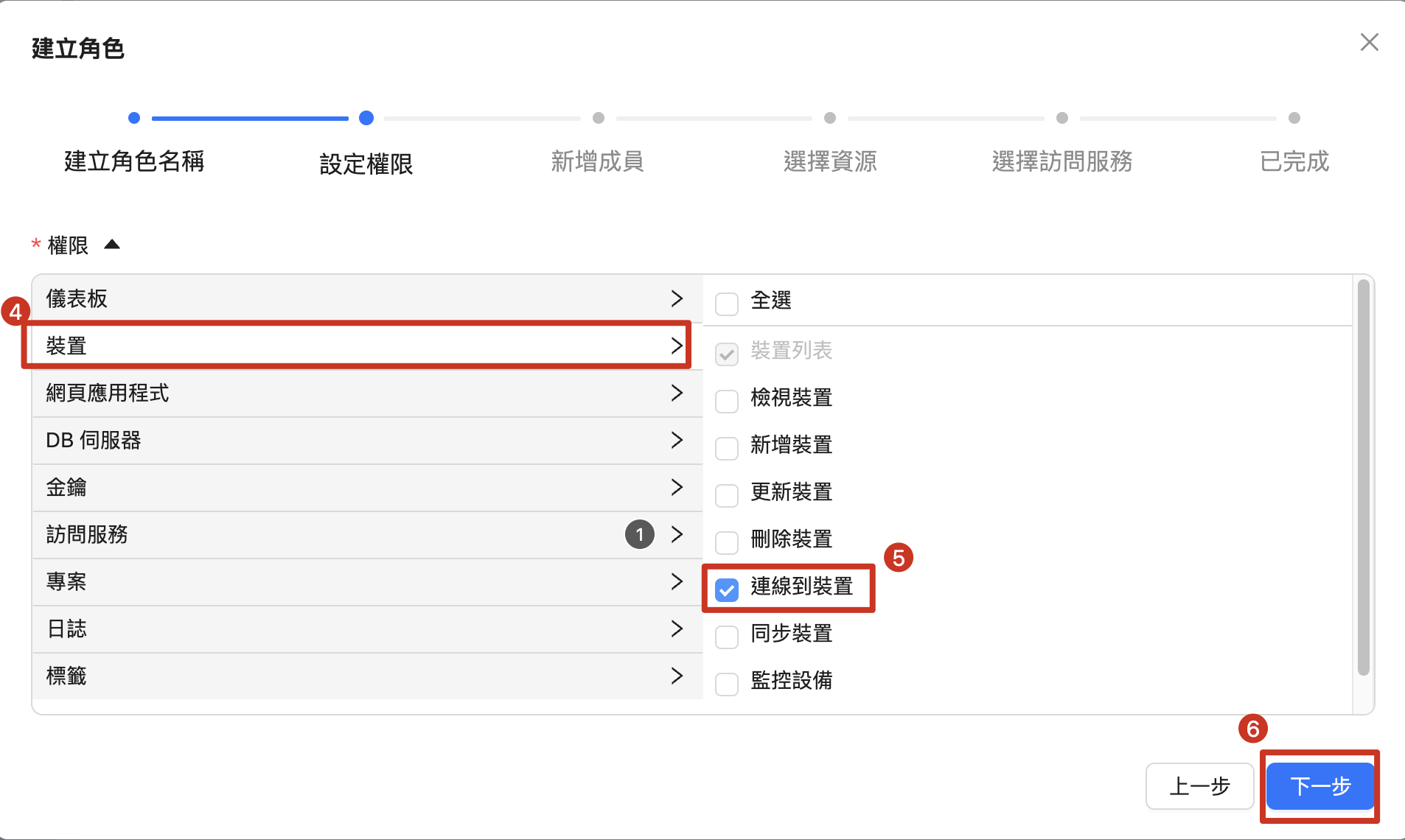

Select Device.
Check Connect to Device.
Click Next.
| 4. 選擇 裝置 5. 勾選 連線到裝置 PS:在此可根據該角色的權限設定,勾選相應的權限。 6. 點擊 「下一步」 |

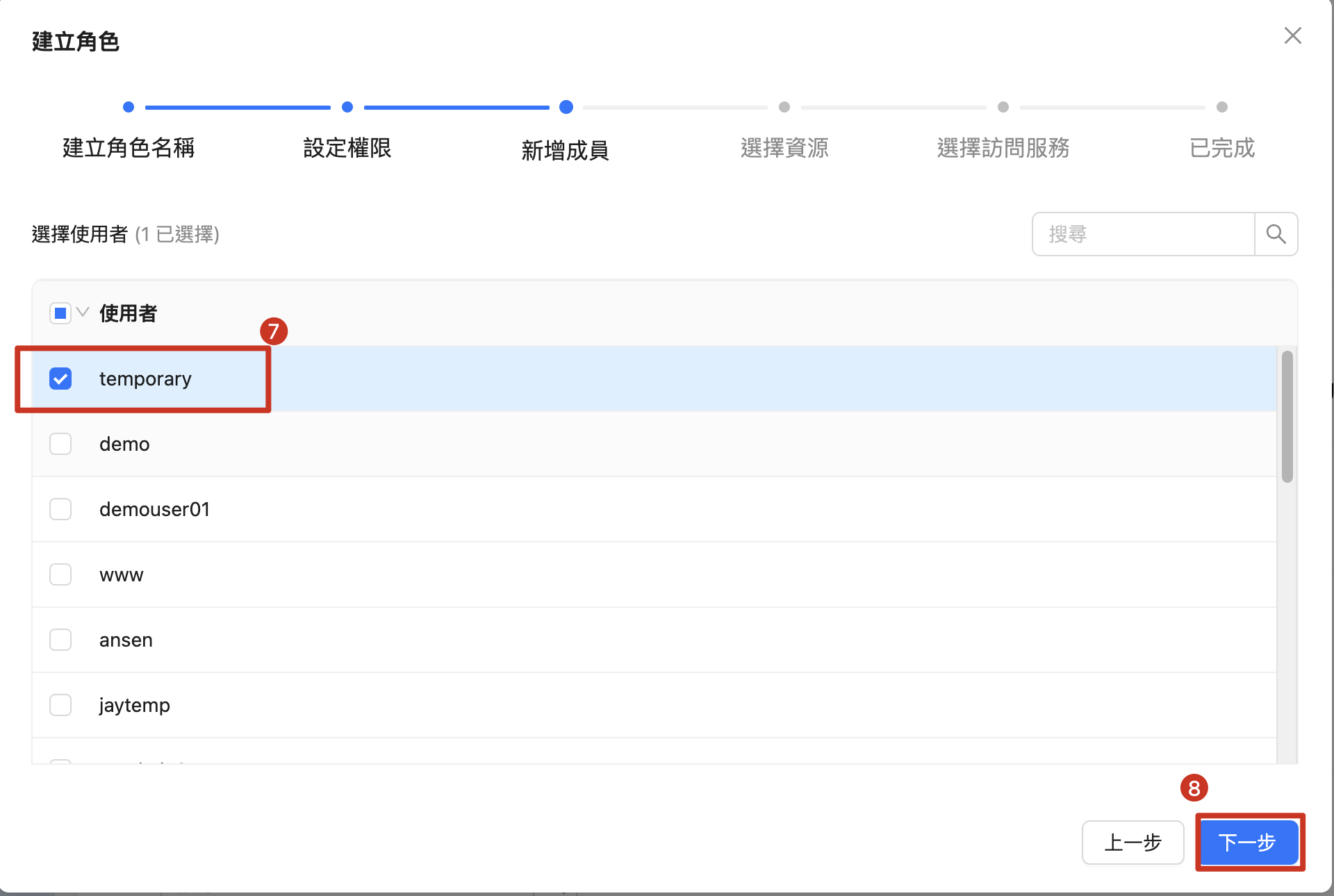

Select User (choose the temporary account).
Click Next.
| 7. 勾選 使用者 (在此選擇已建立的臨時帳號) 8. 點擊 「下一步」 |

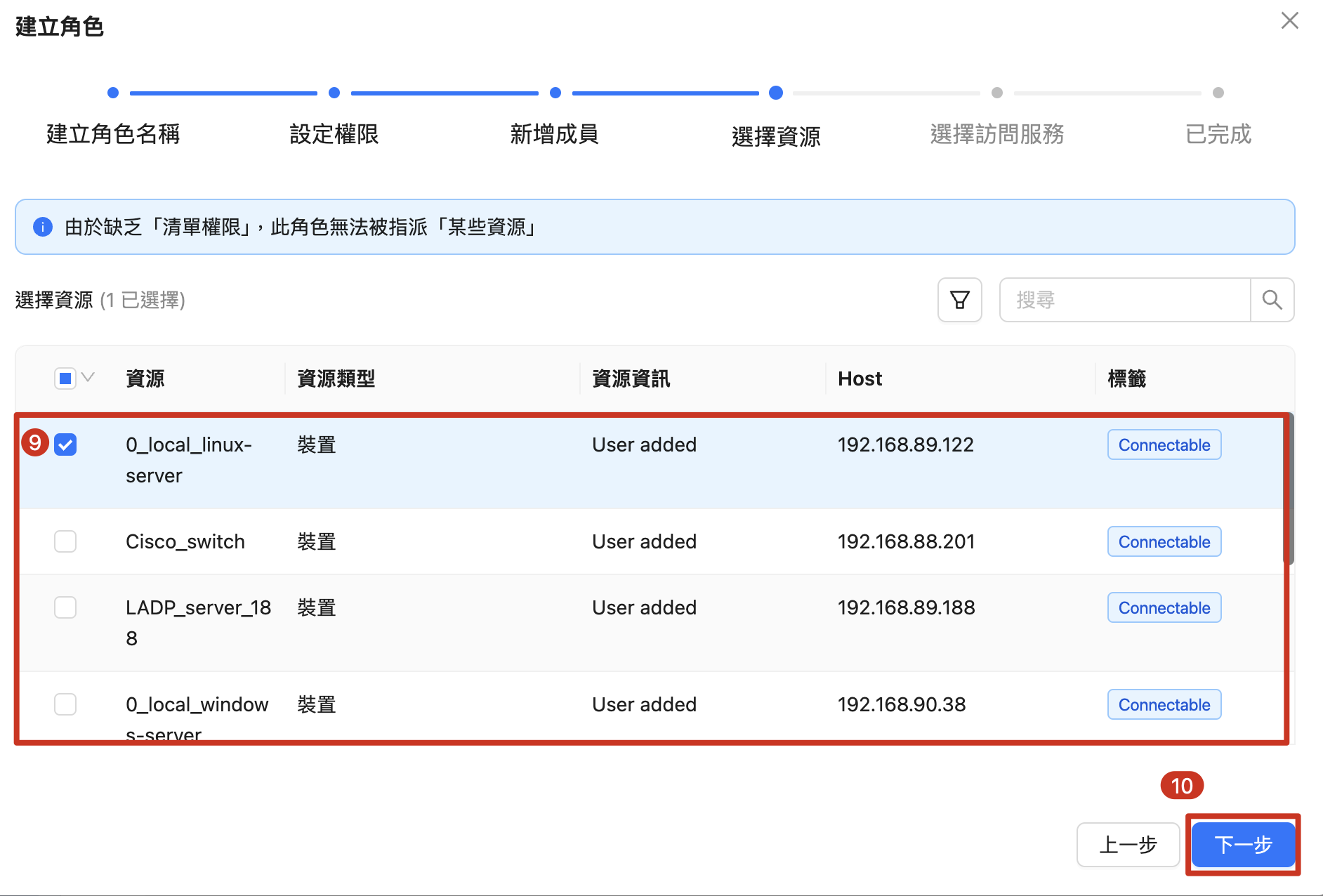

Check Device.
Click Next.
| 9. 勾選 裝置 10. 點擊 「下一步」 |

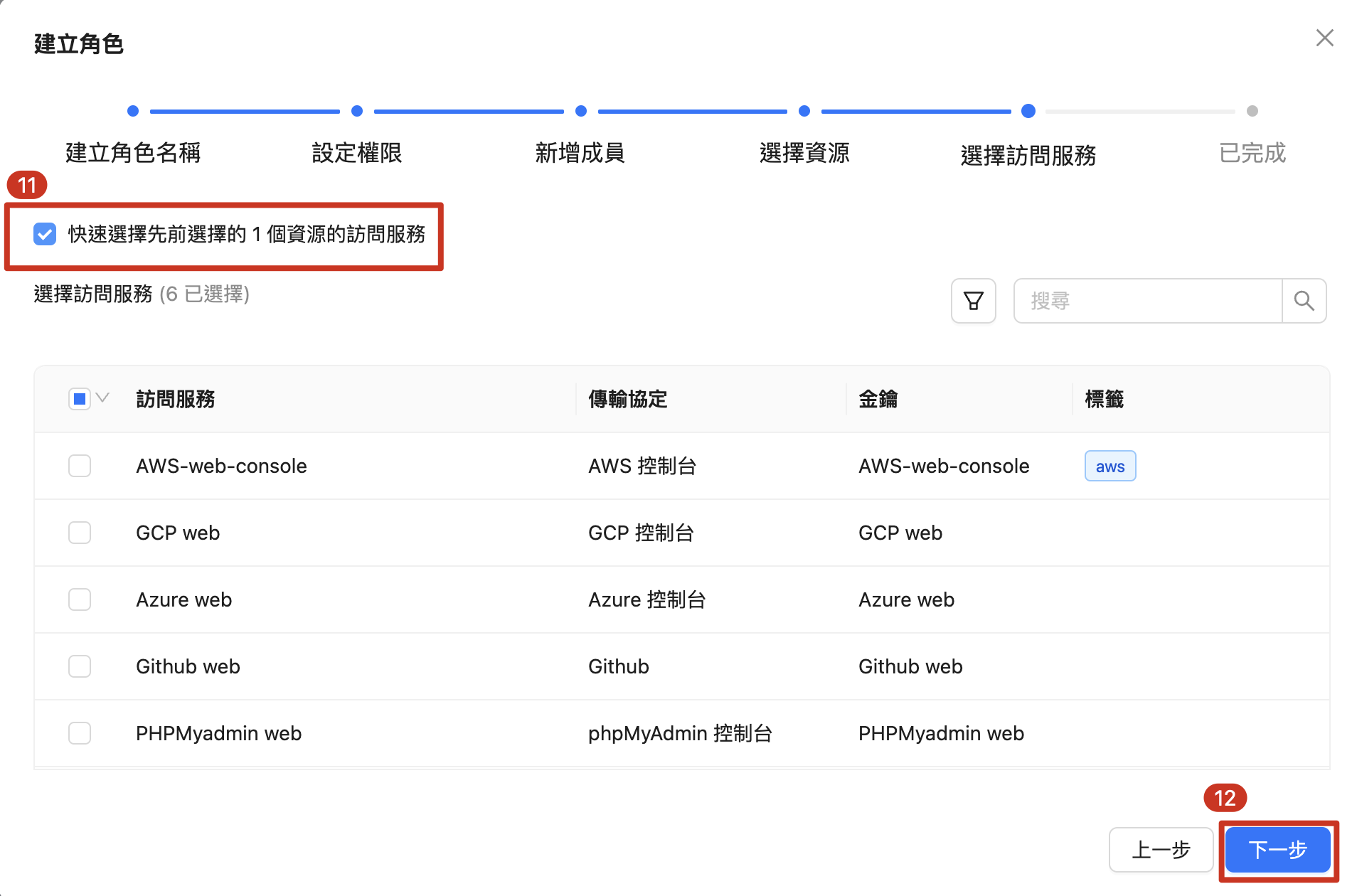

Check Quick Select Previously Chosen 1 Resource Access Service (automatically selects the access service for the chosen device).
Click Next.
| 11. 勾選 "快速選擇先前選擇的 1 個資源的訪問服務 " PS:此選項將自動勾選所選裝置對應的訪問服務。 12. 點擊 「下一步」 |

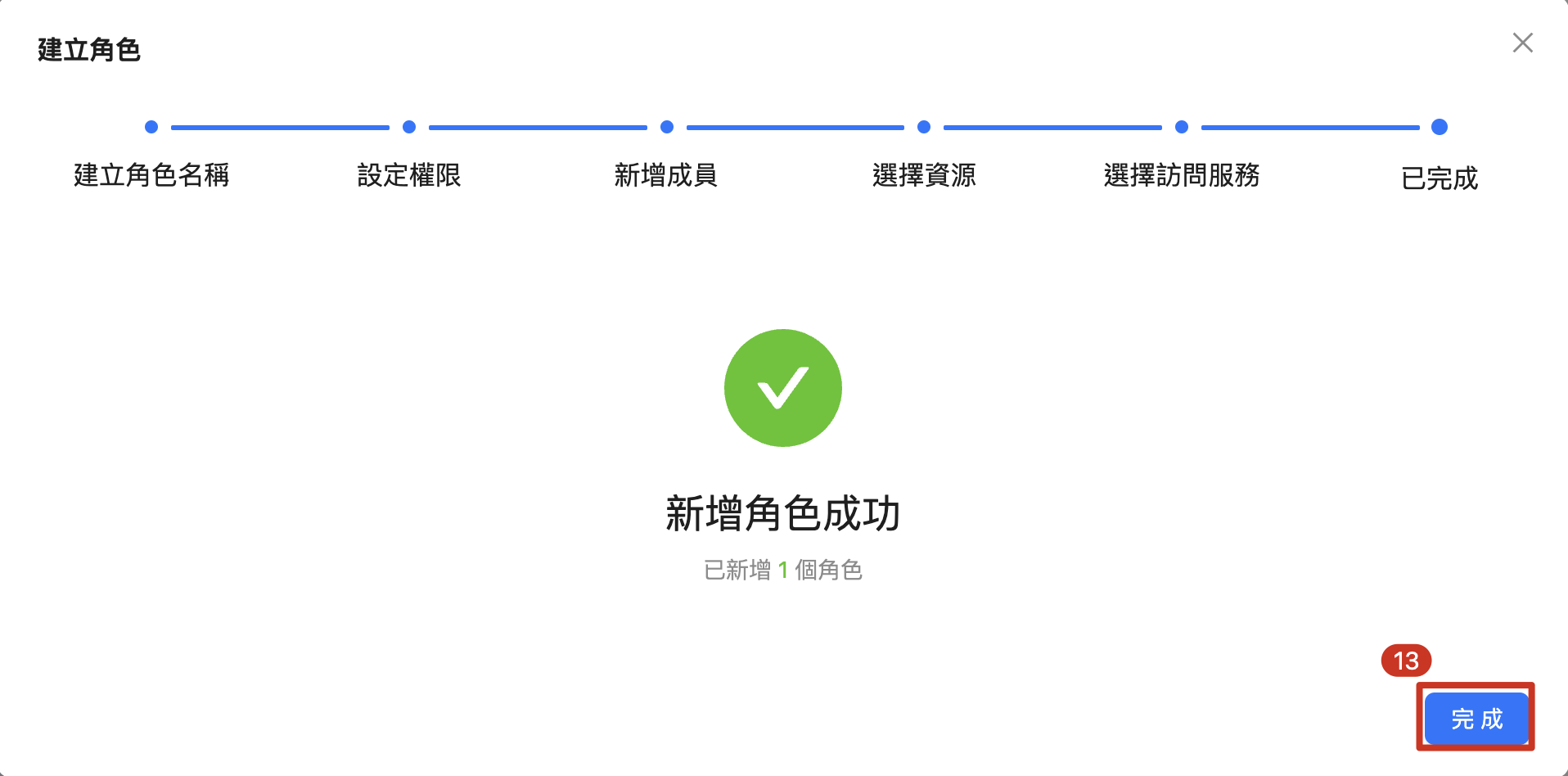

Click Finish. Custom role successfully created.
| 13. 點擊 「完成」,成功新增自訂義角色 |
