How to Obtain Identification Information Required for General Console Login

The General Console Login feature requires seven fields of identification information, which the system uses to automatically locate the account field, password field, and login button on the target website and fill in the credentials. The following explains how to obtain this information using your browser's Developer Tools. When searching for elements, prioritize name or a stable id as the search field and value. Avoid using class (which may change with site updates) or dynamically generated id values (such as :r2:, which change on every page load).

Steps

1. Navigate to the login page of the target website.

2. Account Field

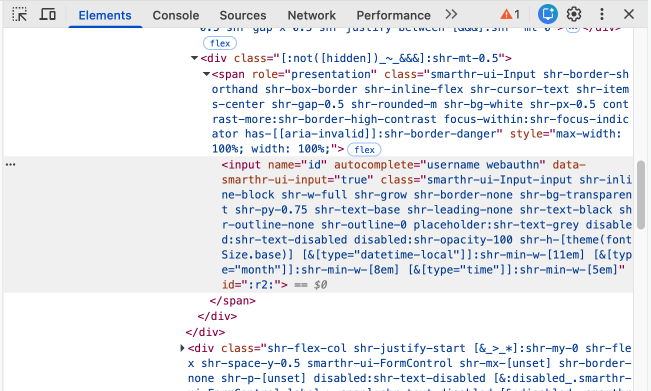

   In Developer Tools, open the Elements tab and locate the account input field's attributes. For example: <input name="id">



   Field	Description	Value to Enter
   Account Search Field	Attribute name	name
   Account Search Value	Attribute value	id

3. Password Field

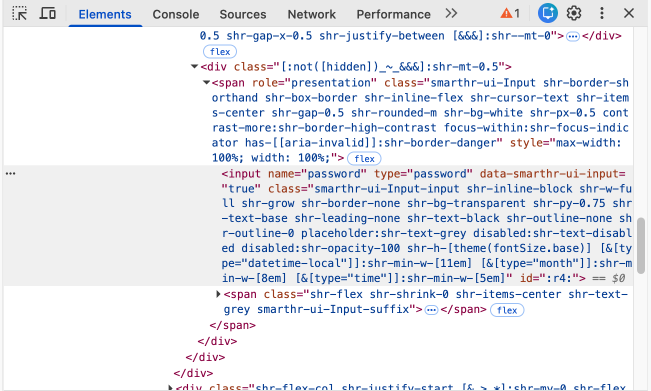

   In the Elements tab, locate the password input field's attributes. For example: <input name="password">



   Field	Description	Value to Enter
   Password Search Field	Attribute name	name
   Password Search Value	Attribute value	password

4. Login Button

   Locate the login button using the same method. Since the login button structure varies by website, verify the element type and attributes on the target site before entering the values. Two common cases are provided below for reference.

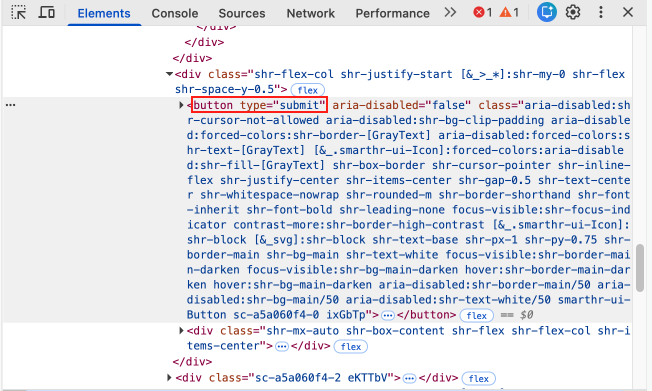

   If the login button is of type button, for example: <button type="submit">



   Field	Description	Value to Enter
   Login Button Type	Element type	button
   Login Button Field	Attribute name	type
   Login Button Search Value	Attribute value	submit

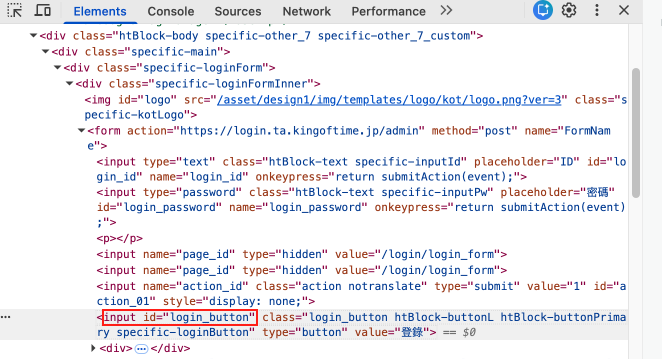

   If the login button is of type input, for example: <input id="login_button">



   Field	Description	Value to Enter
   Login Button Type	Element type	input
   Login Button Field	Attribute name	id
   Login Button Search Value	Attribute value	login_button
